Cigarette Lighter and Charging Sockets (As of 03/05 Up to 09/05)

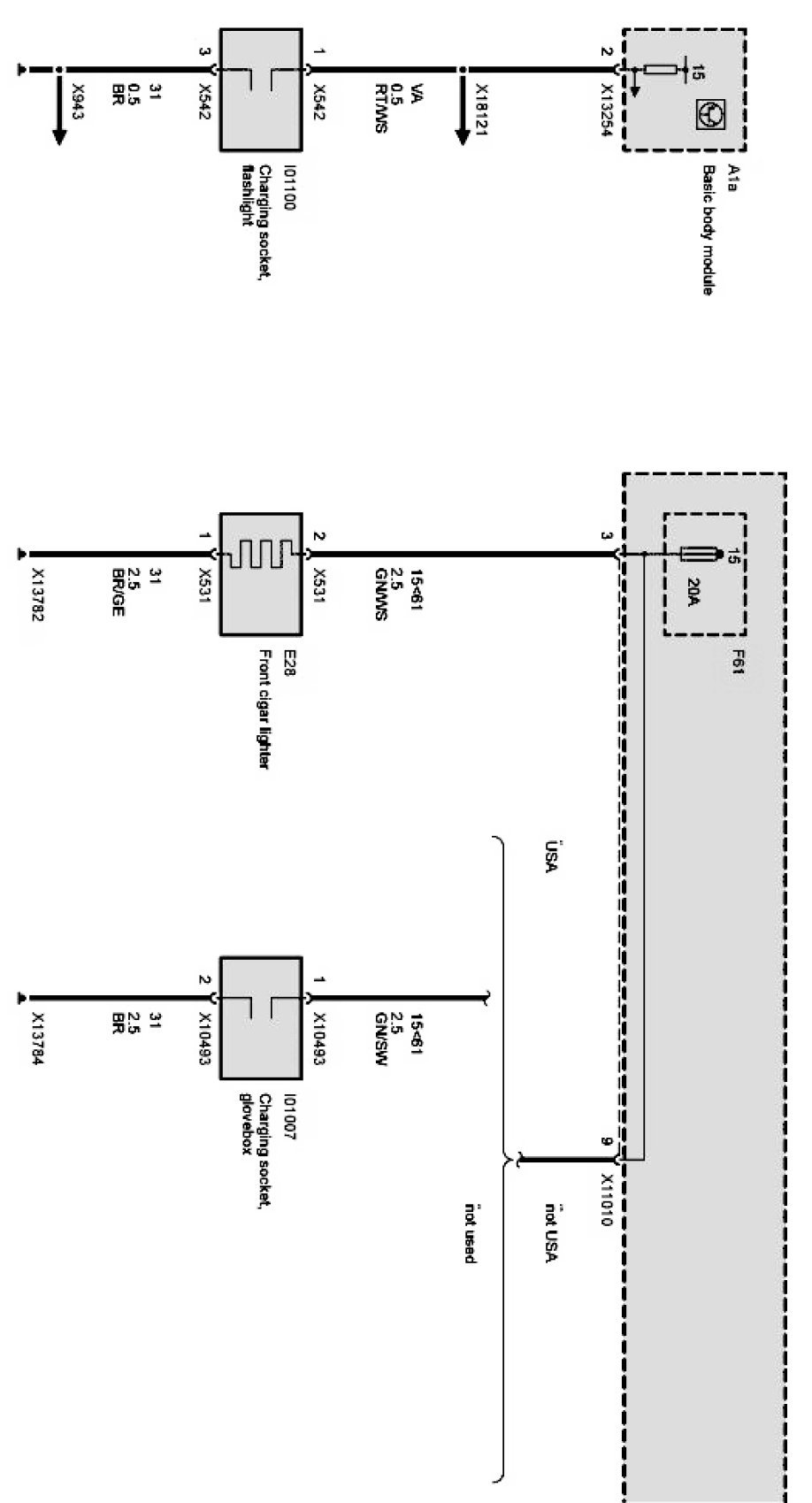

Cigarette lighter and charging sockets Part 1:

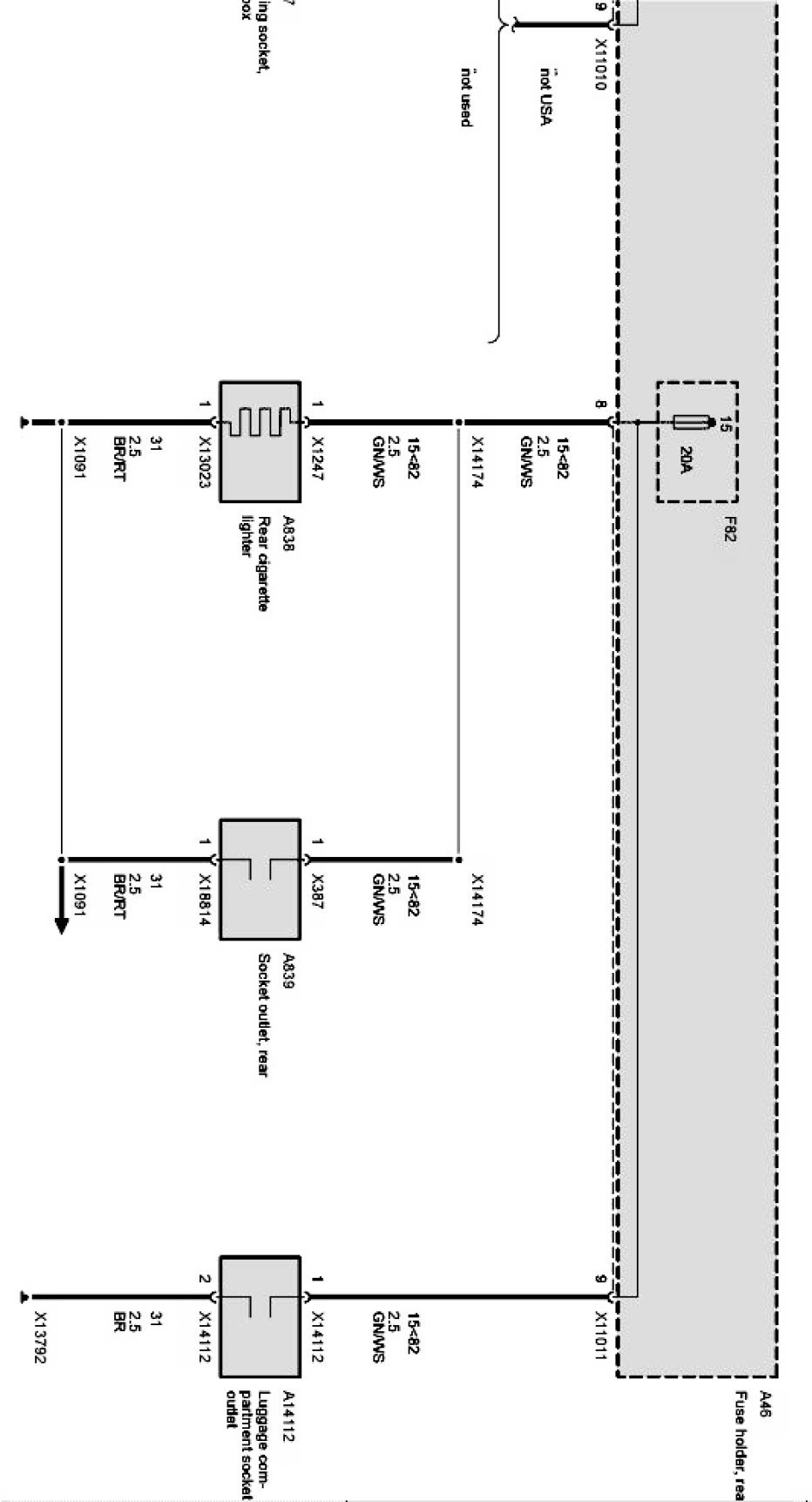

Cigarette lighter and charging sockets Part 2:
