Central Information Display (Up to 09/04)

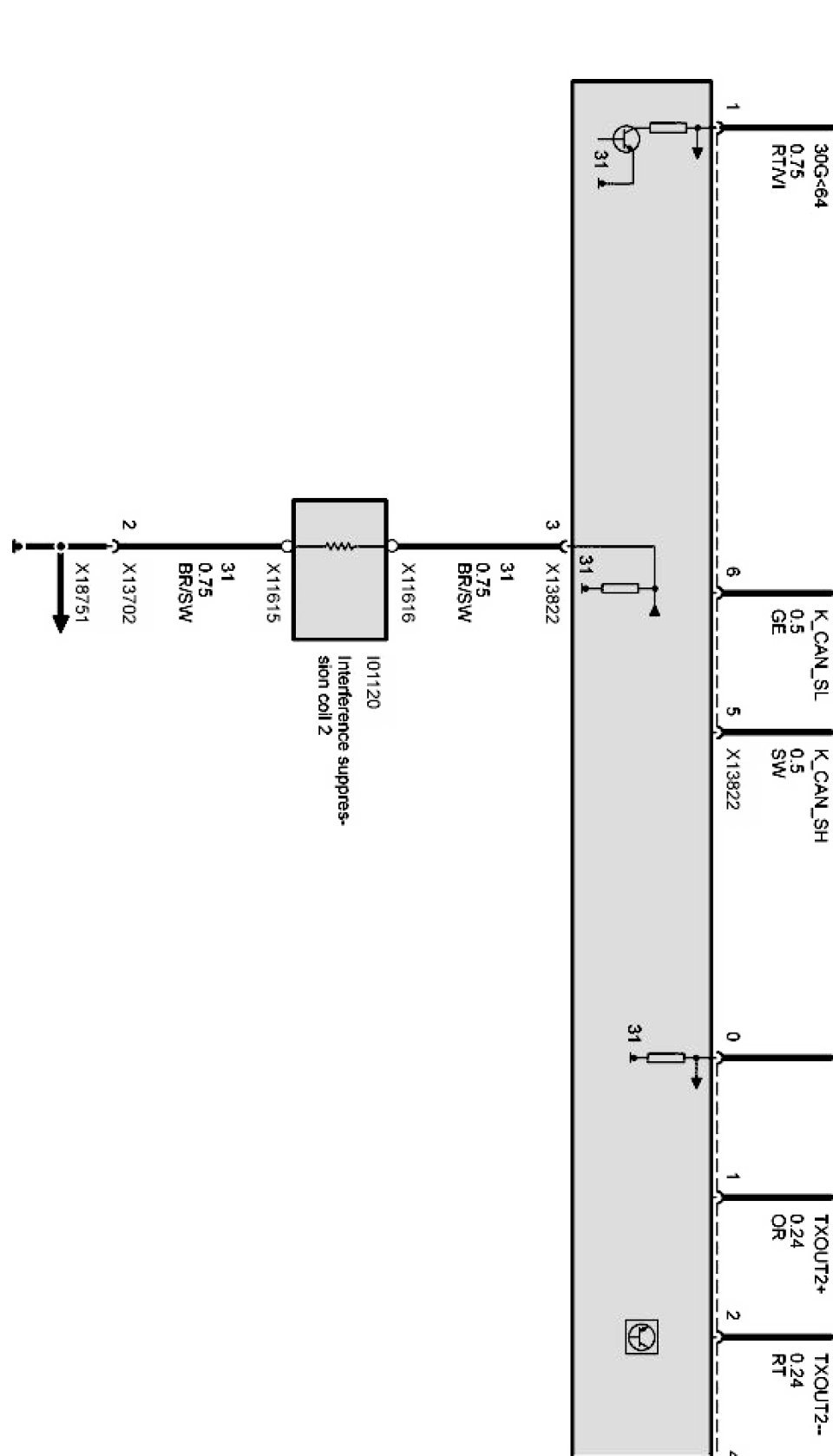

Central information display (CID) Part 1:

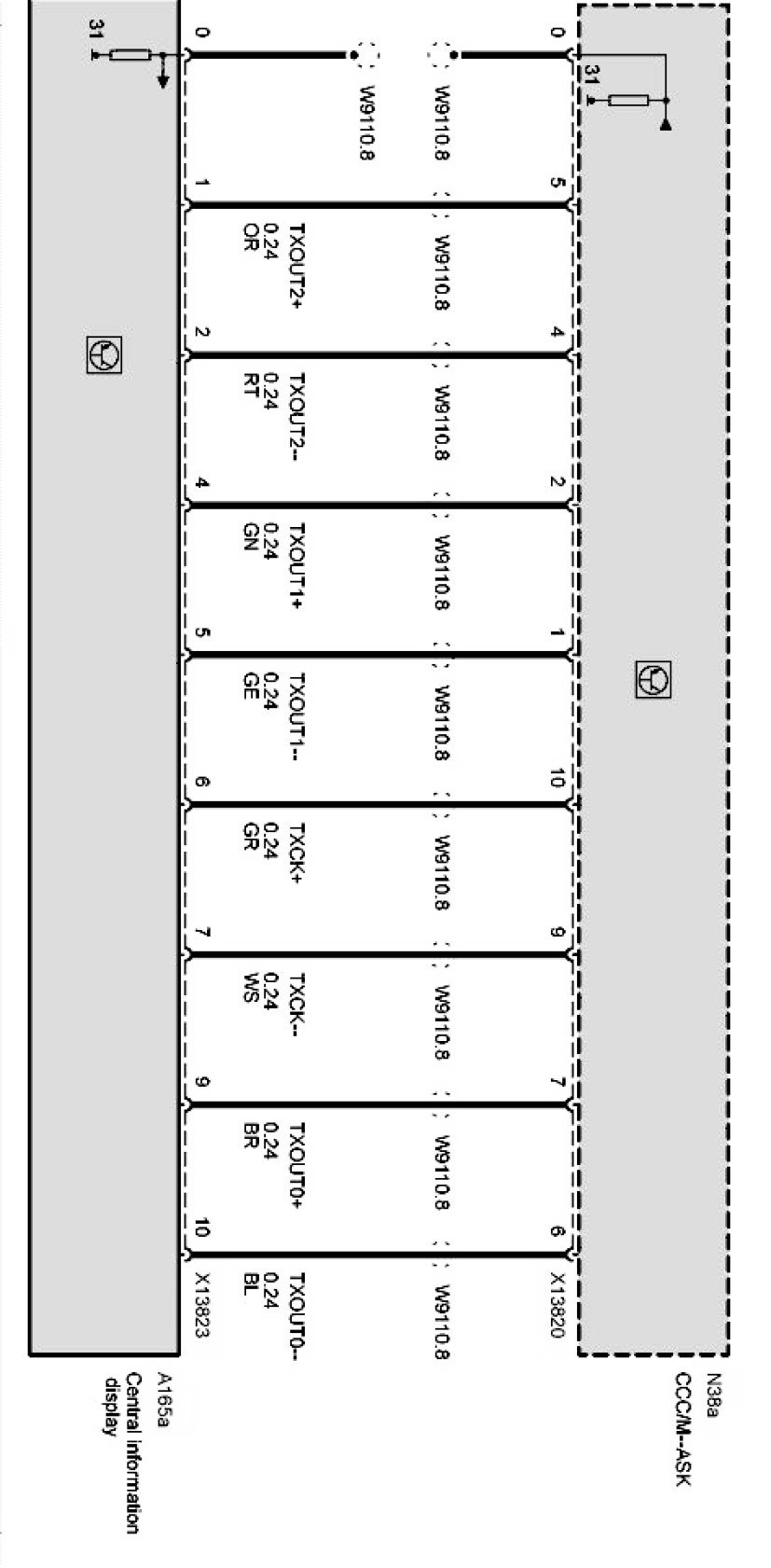

Central information display (CID) Part 2:

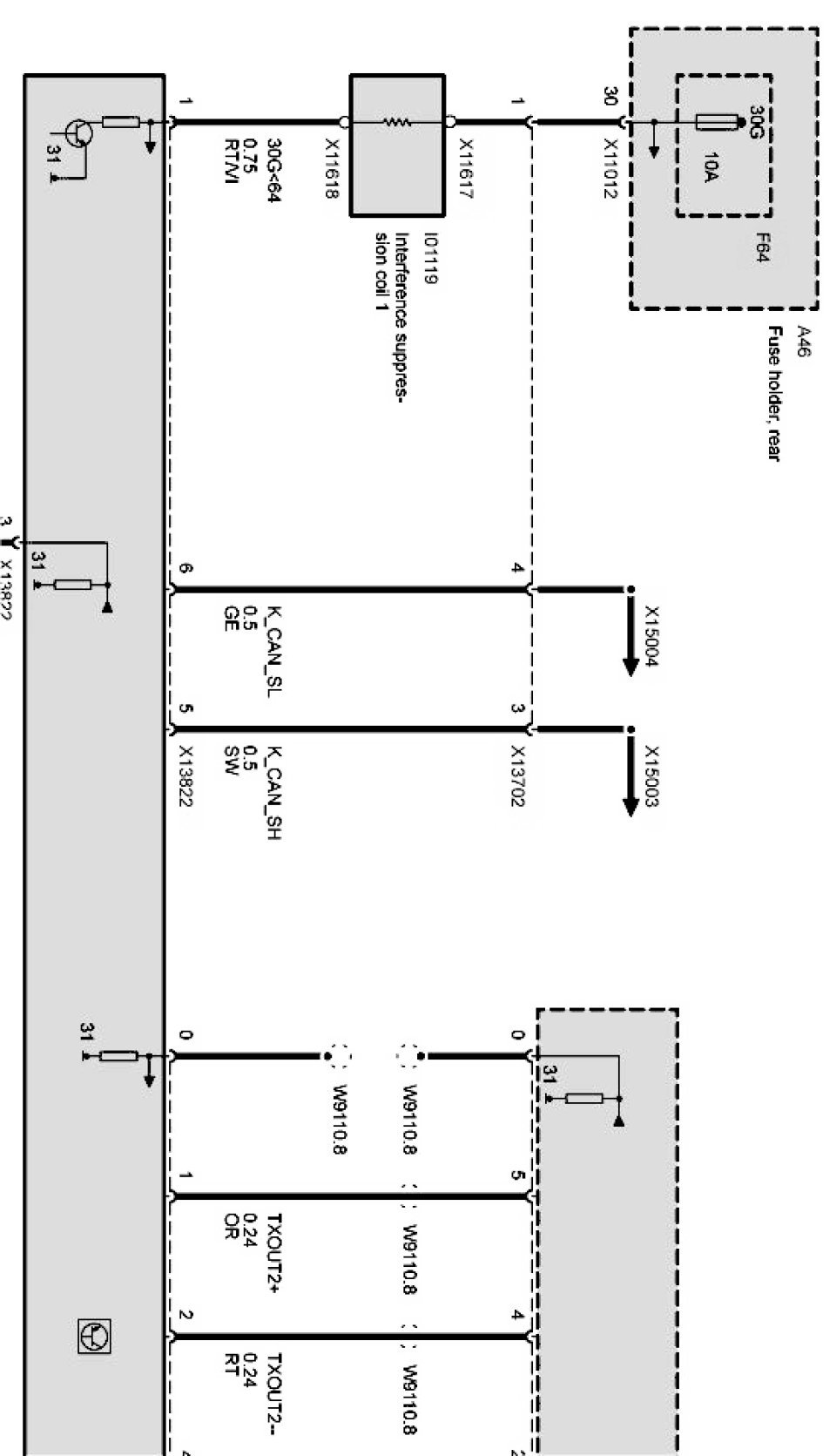

Central information display (CID) Part 3:
