Home >> BMW >> 2005 >> 645Ci Convertible (E64) V8-4.4L (N62) >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Body >> Display and Information Functions >> Display Function >> CID Central Information Display Supply >> Central Information Display (As of 09/04 Up to 09/05)

Central Information Display (As of 09/04 Up to 09/05)

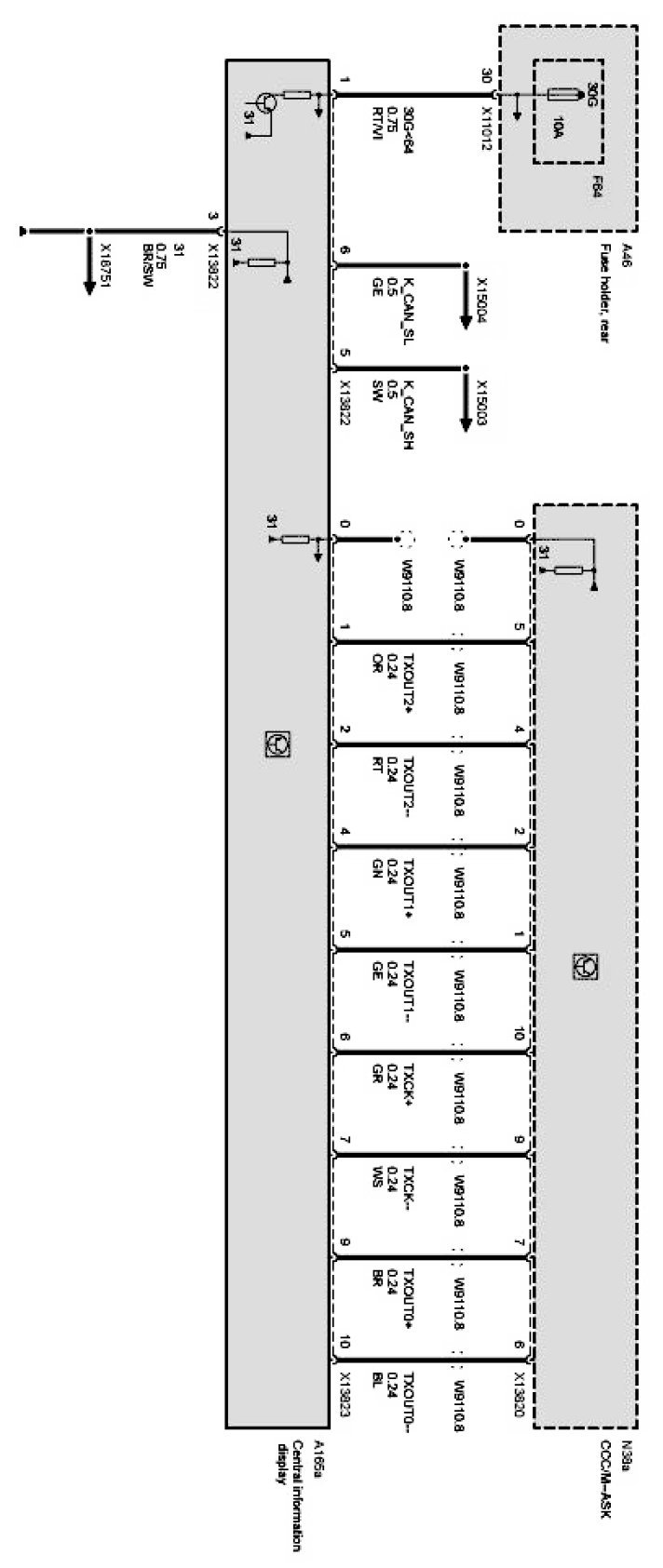

Central information display (CID):
