Home >> BMW >> 2005 >> 645Ci Convertible (E64) V8-4.4L (N62) >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Body >> Audio, Video, Navigation (MOST Network) >> Telecommunication >> Universal Charging and Hands-Free Facility >> Universal Charging and Hands-free Facility (Without Convertible Up to 09/04)

Universal Charging and Hands-free Facility (Without Convertible Up to 09/04)

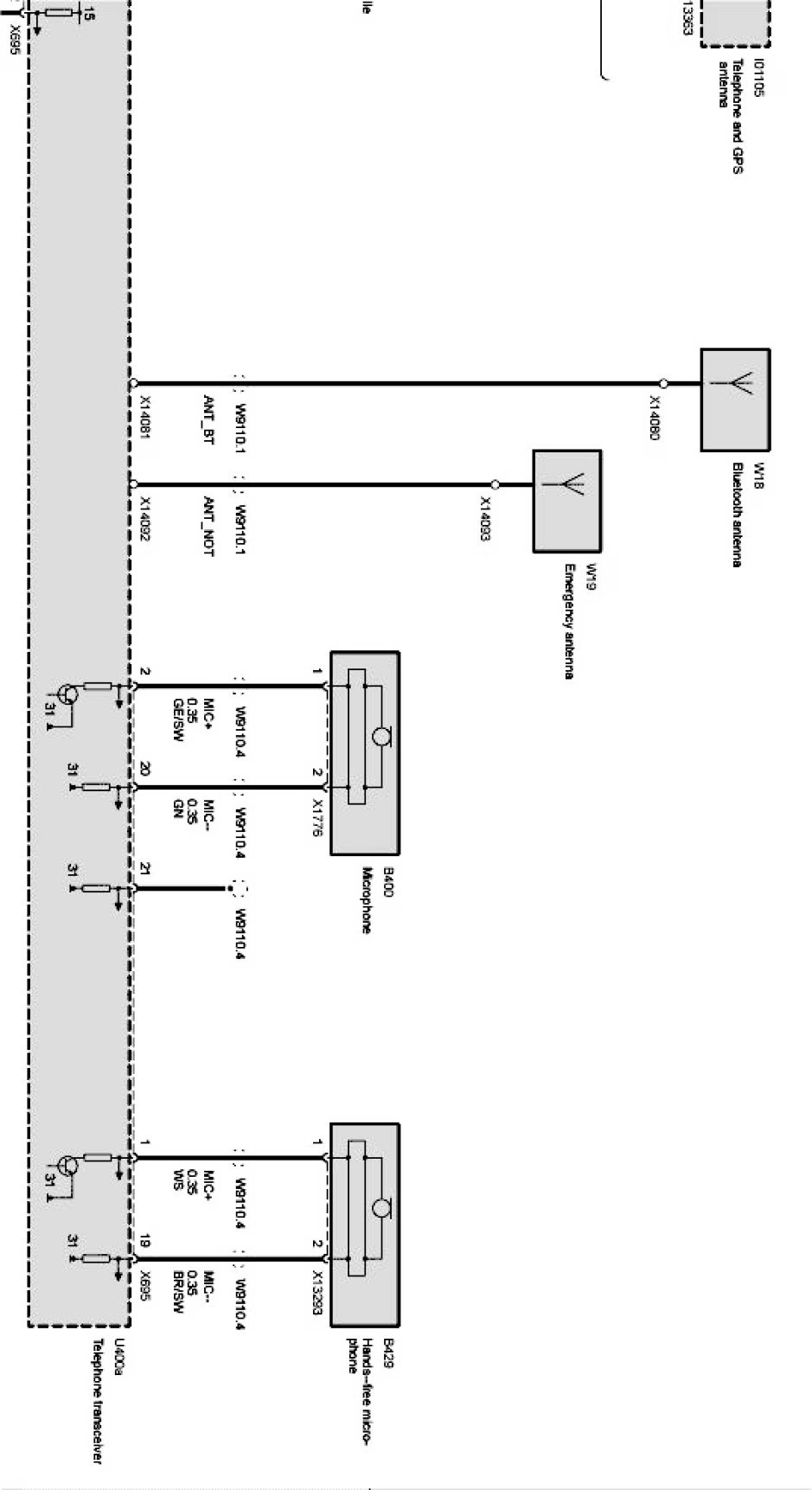

Telephone Part 1:

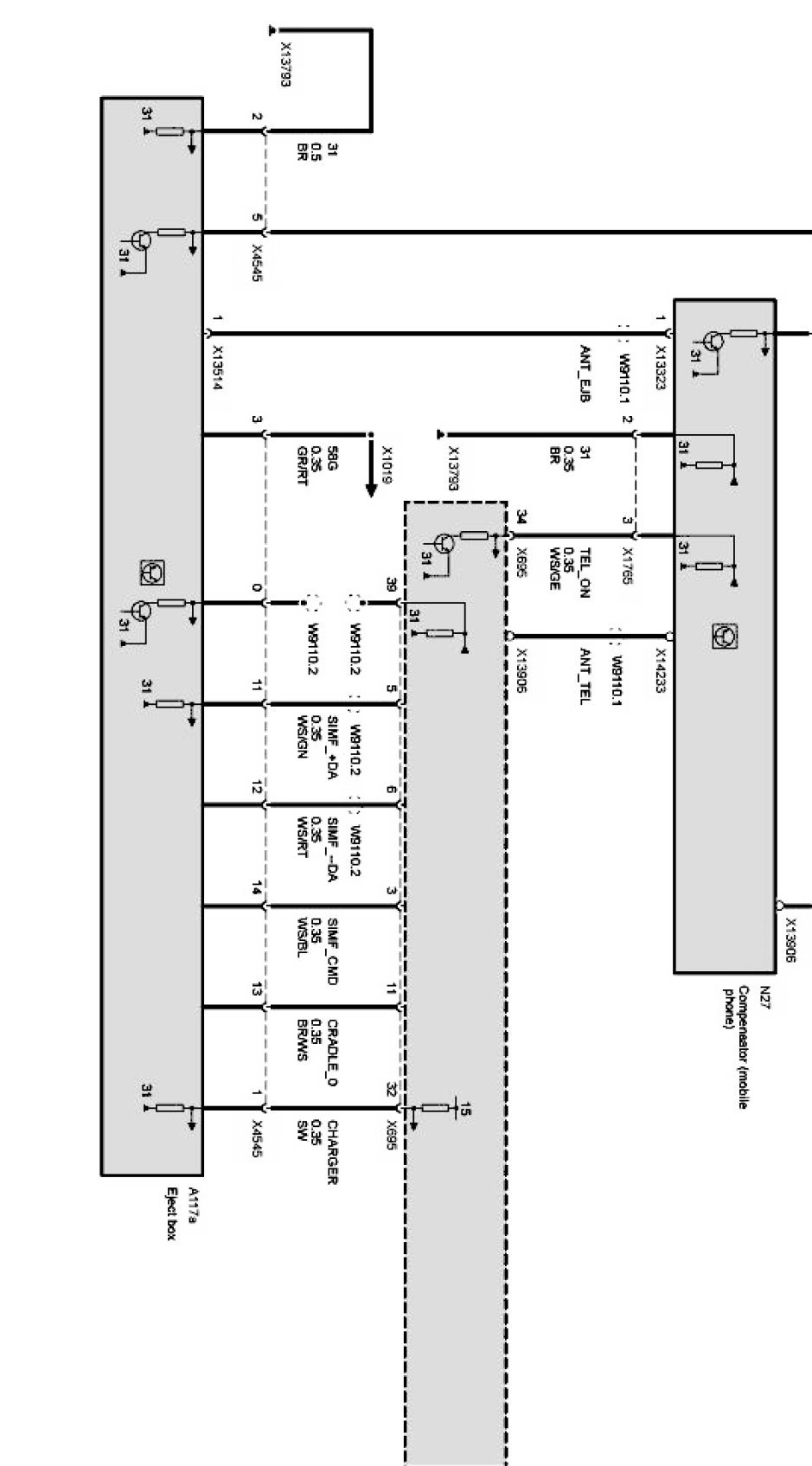

Telephone Part 2:

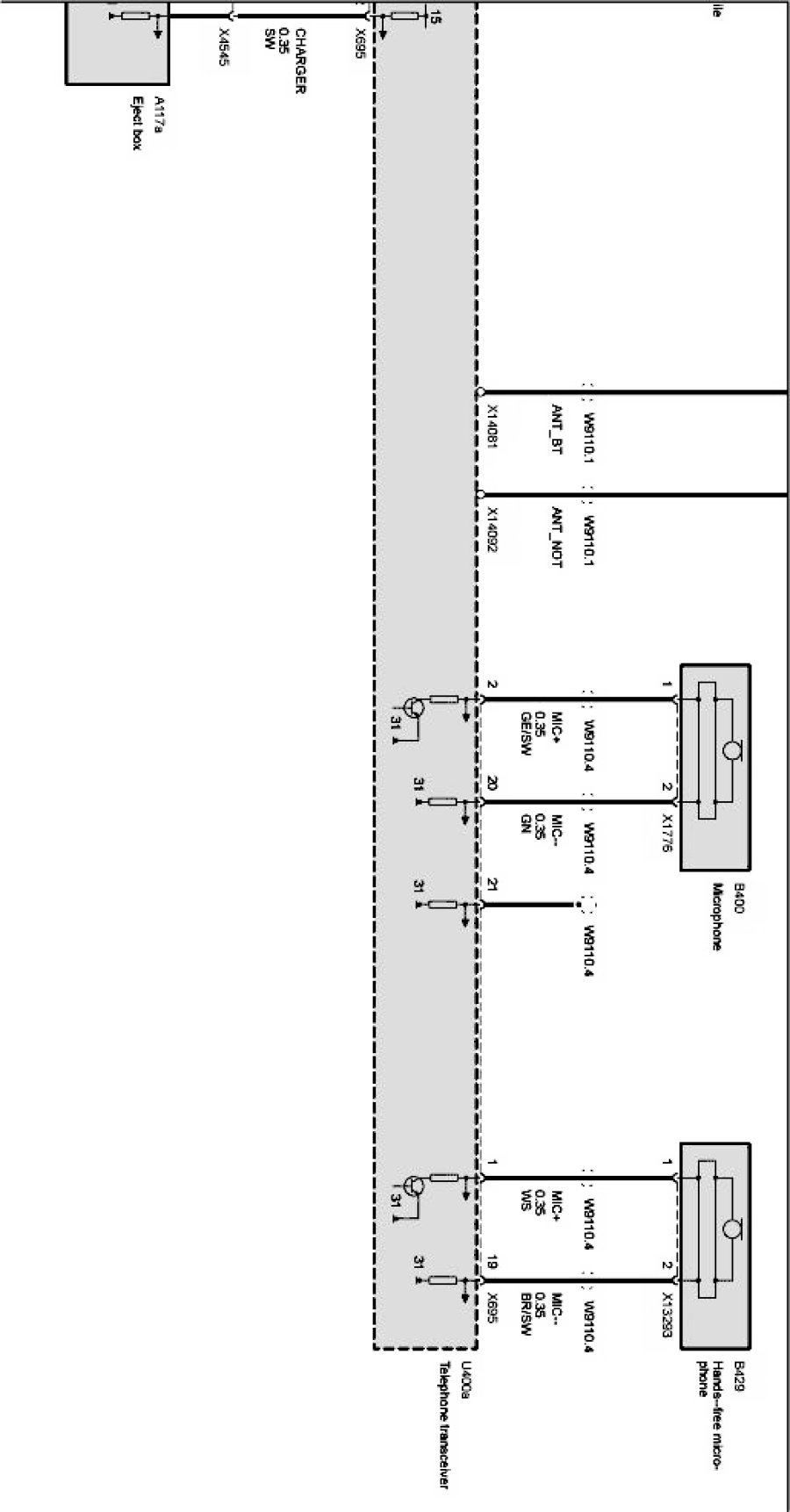

Telephone Part 3:

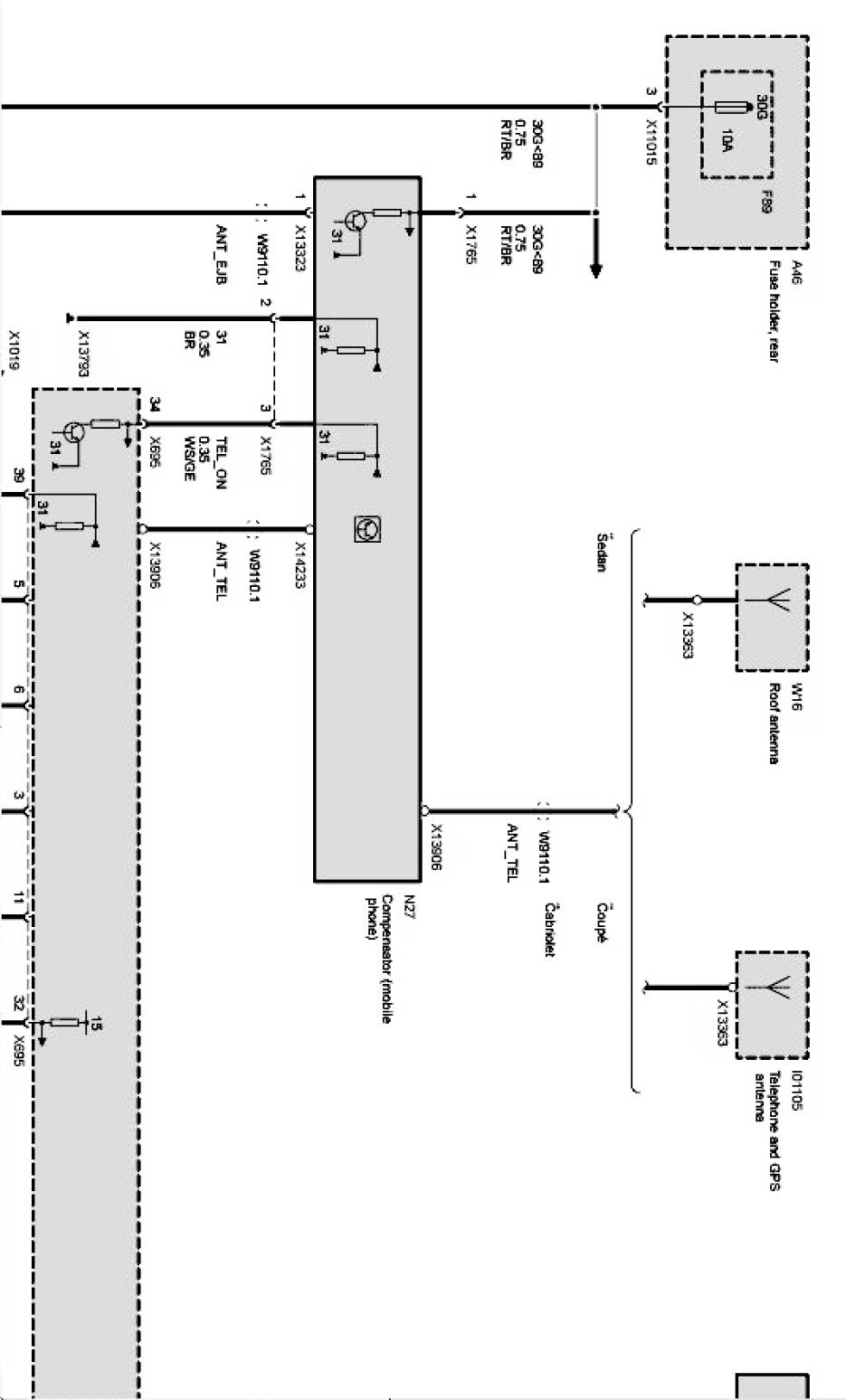

Telephone Part 4:
