645Ci Convertible (E64) V8-4.4L (N62)
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Body
>>
Audio, Video, Navigation (MOST Network)
>>
Telecommunication
>>
TCU Telematics Control Unit (TCU Telematics Control Unit 1.5)
>>
TCU Telematics Control Unit (TCU Telematic Control Unit Up to 09/04)
TCU Telematics Control Unit (TCU Telematic Control Unit Up to 09/04)

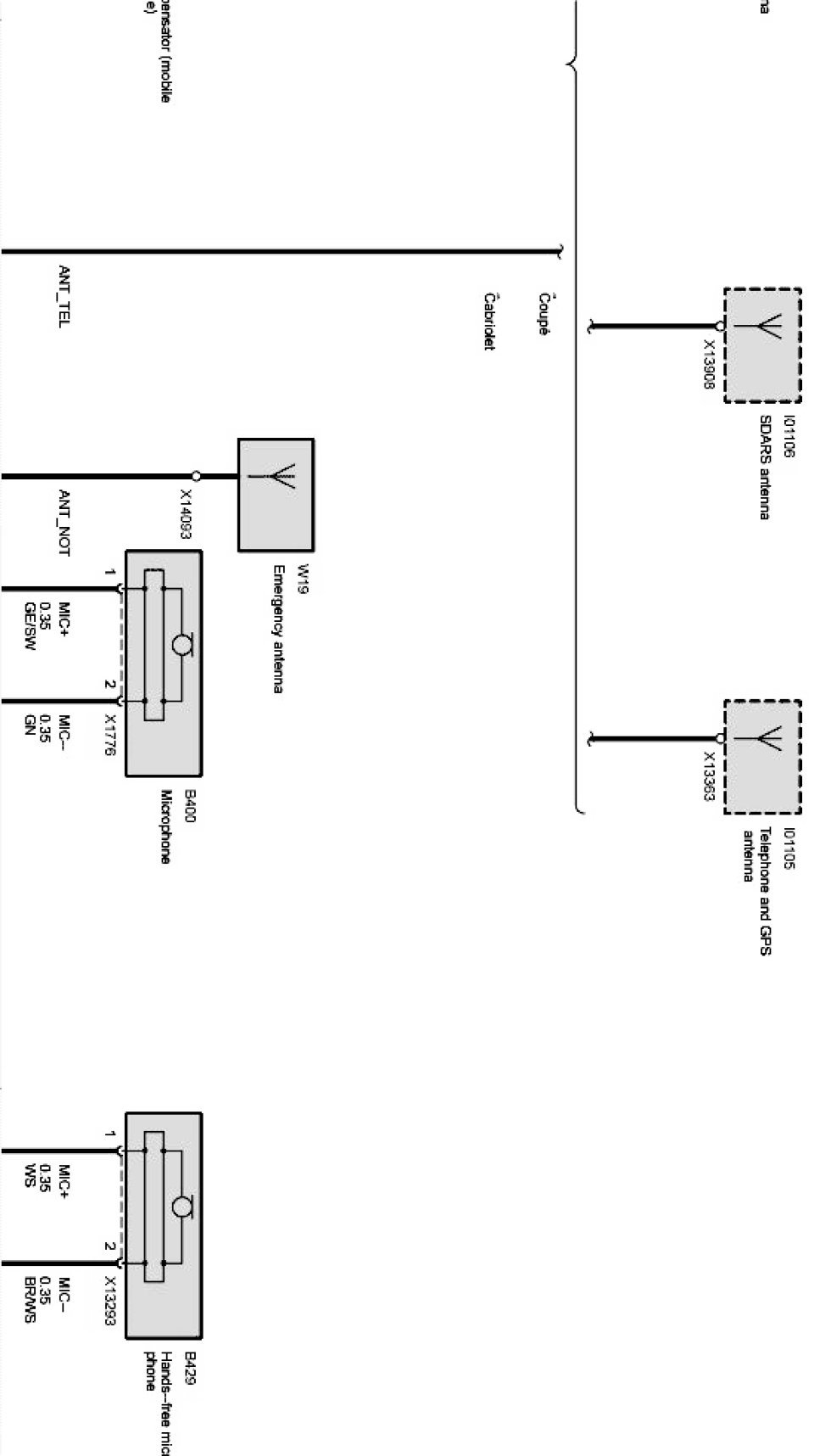

Telephone Part 1:

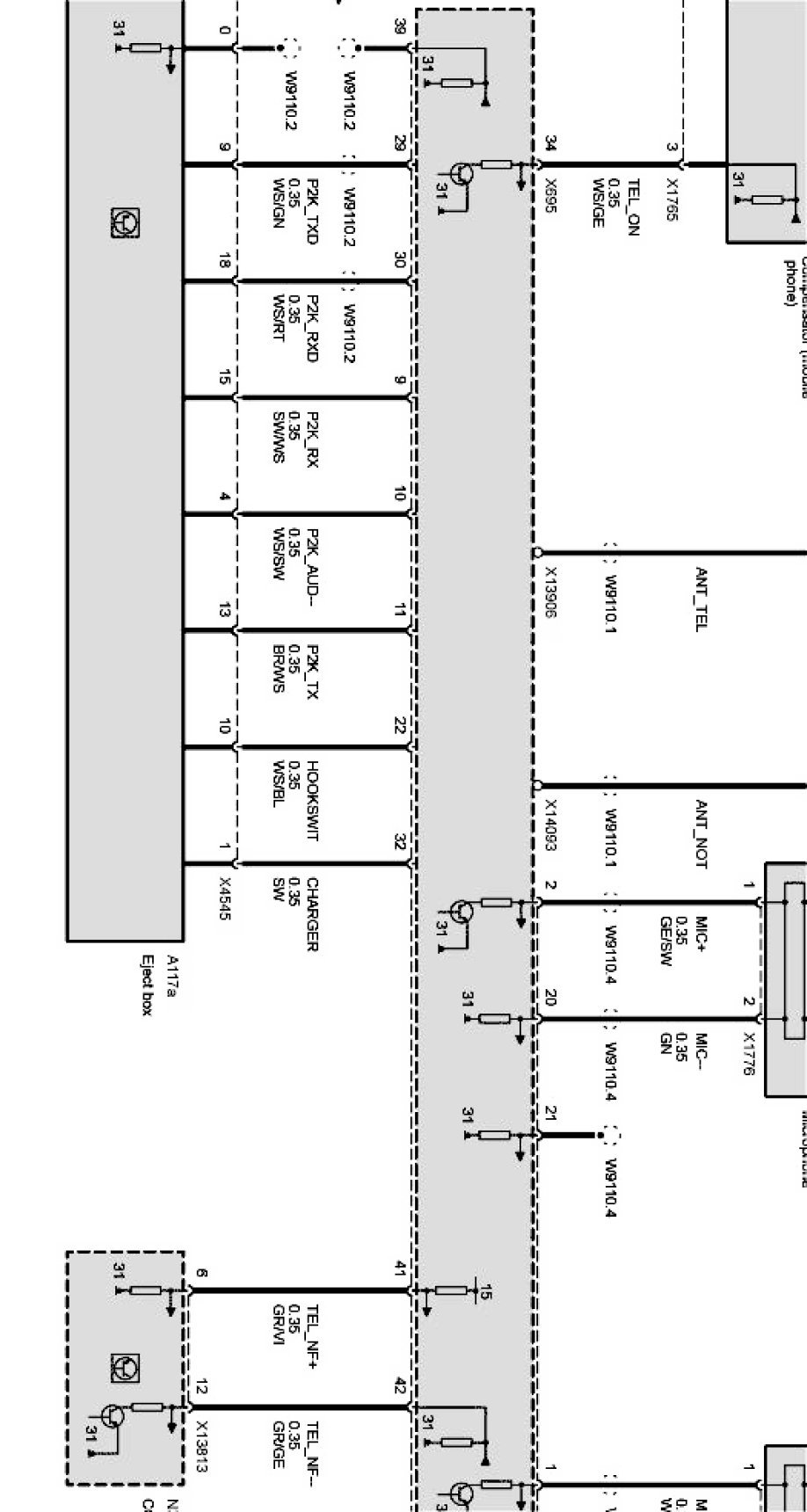

Telephone Part 2:

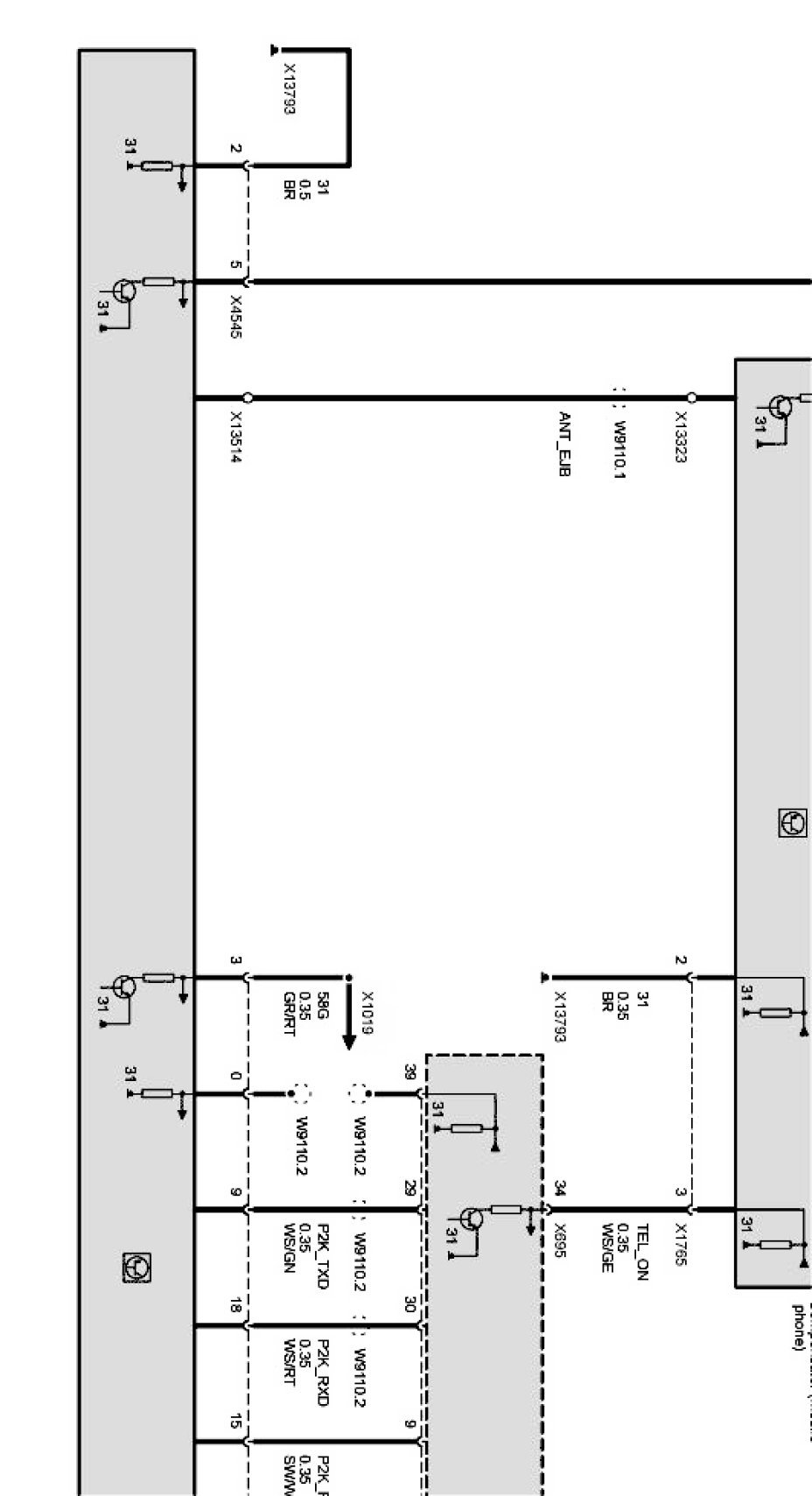

Telephone Part 3:

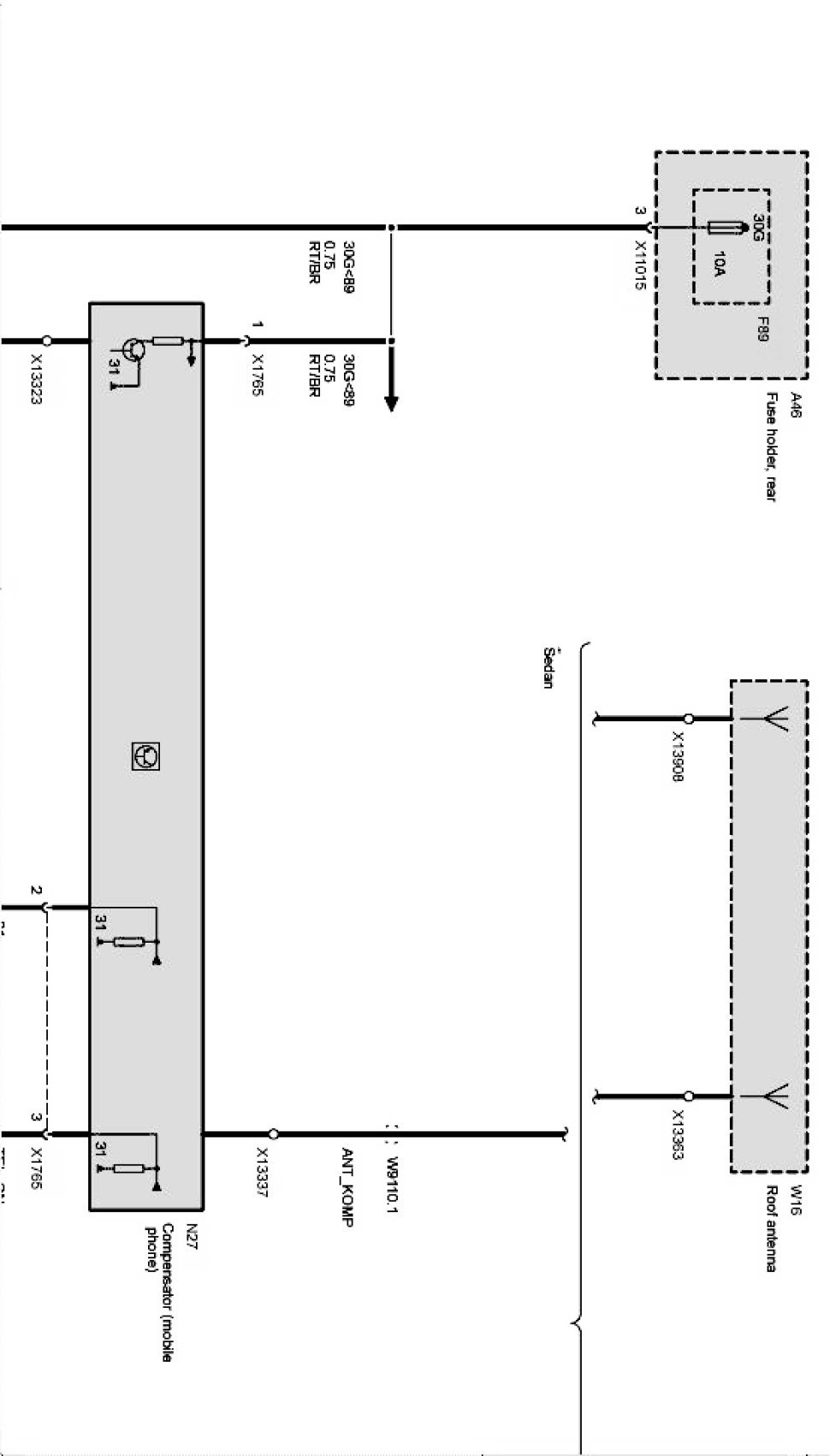

Telephone Part 4:

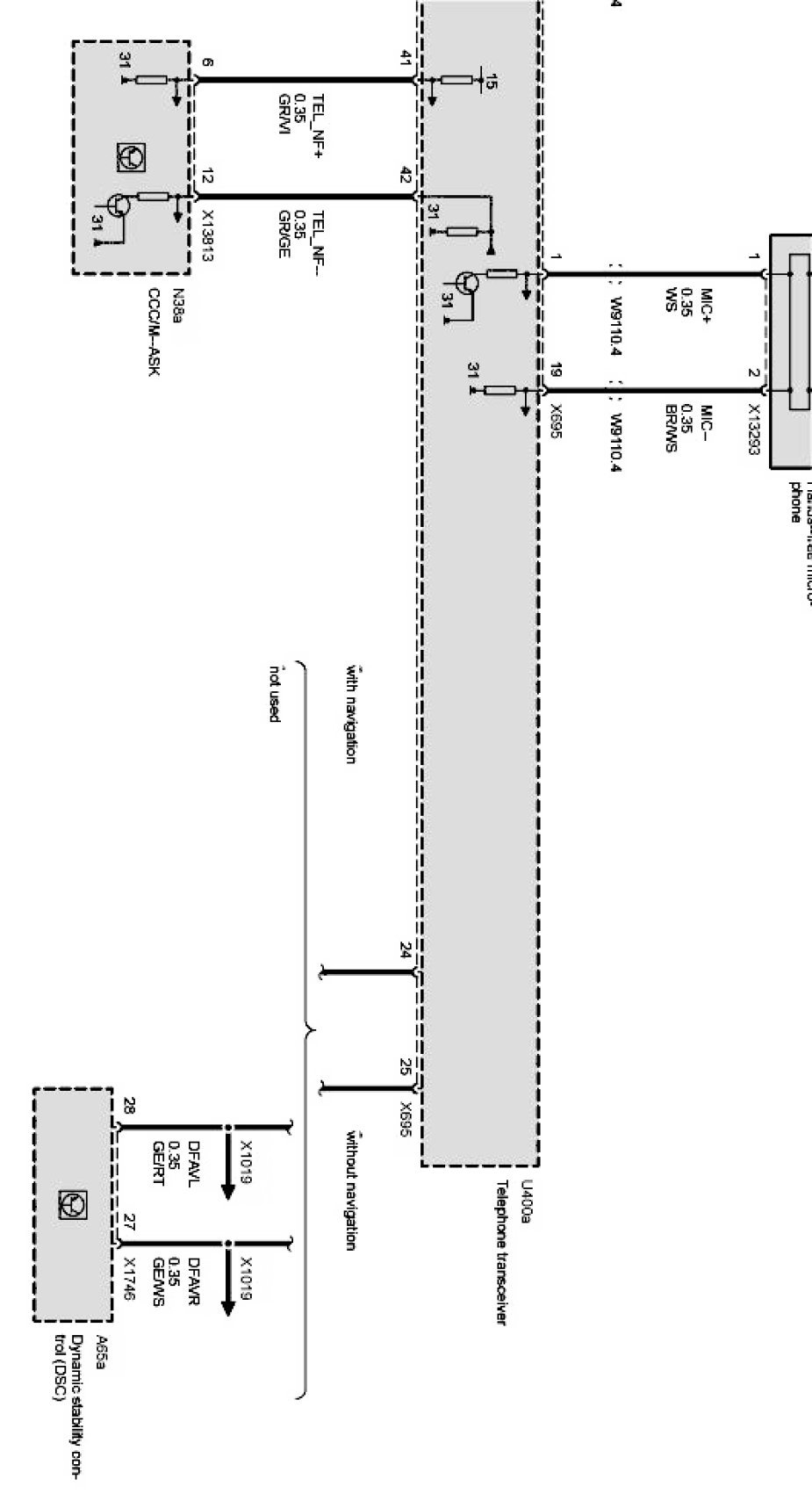

Telephone Part 5:
