Home >> BMW >> 2005 >> 645Ci Convertible (E64) V8-4.4L (N62) >> Repair and Diagnosis >> Diagrams >> Connector Views >> Connectors From X1 >> X18793 Adapter 614470, Storage Location C110 (IHKA Basic)

X18793 Adapter 614470, Storage Location C110 (IHKA Basic)

X18793:

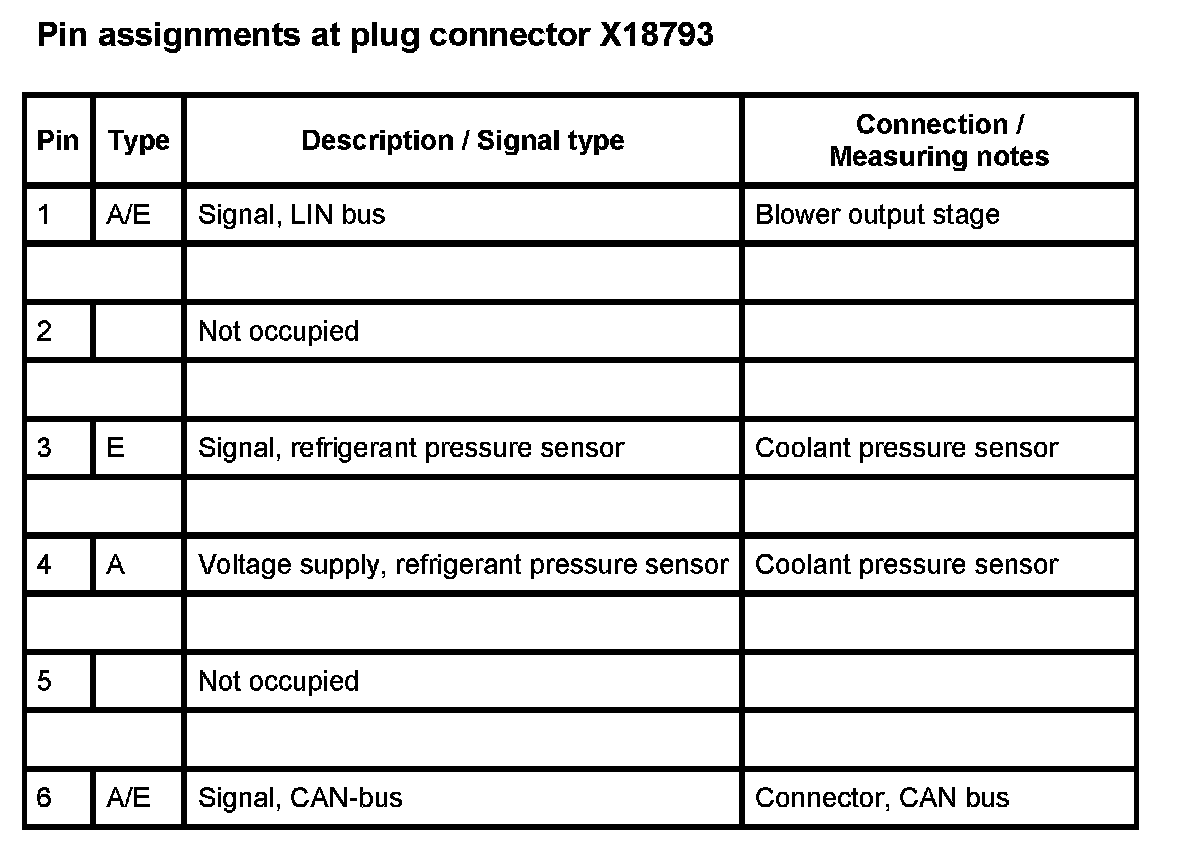

X18793 - Part 1:

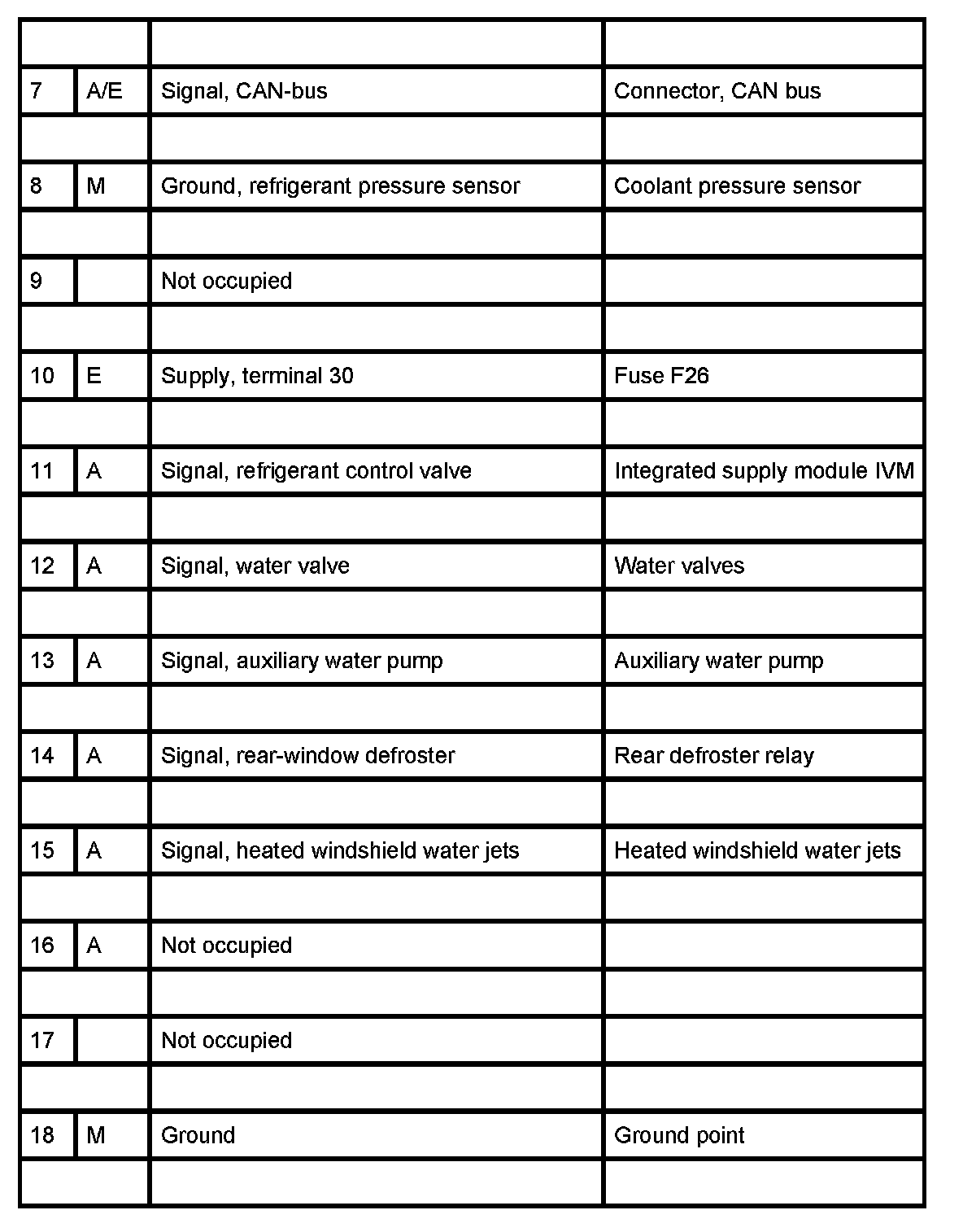

X18793 - Part 2:
