X1746 Adapter 612220, Storage Location O212
>>
A65A Dynamic Stability Control (DSC) (DSC PLUS Without S85 Engine As of 03/05 Up to 09/05)
A65A Dynamic Stability Control (DSC) (DSC PLUS Without S85 Engine As of 03/05 Up to 09/05)

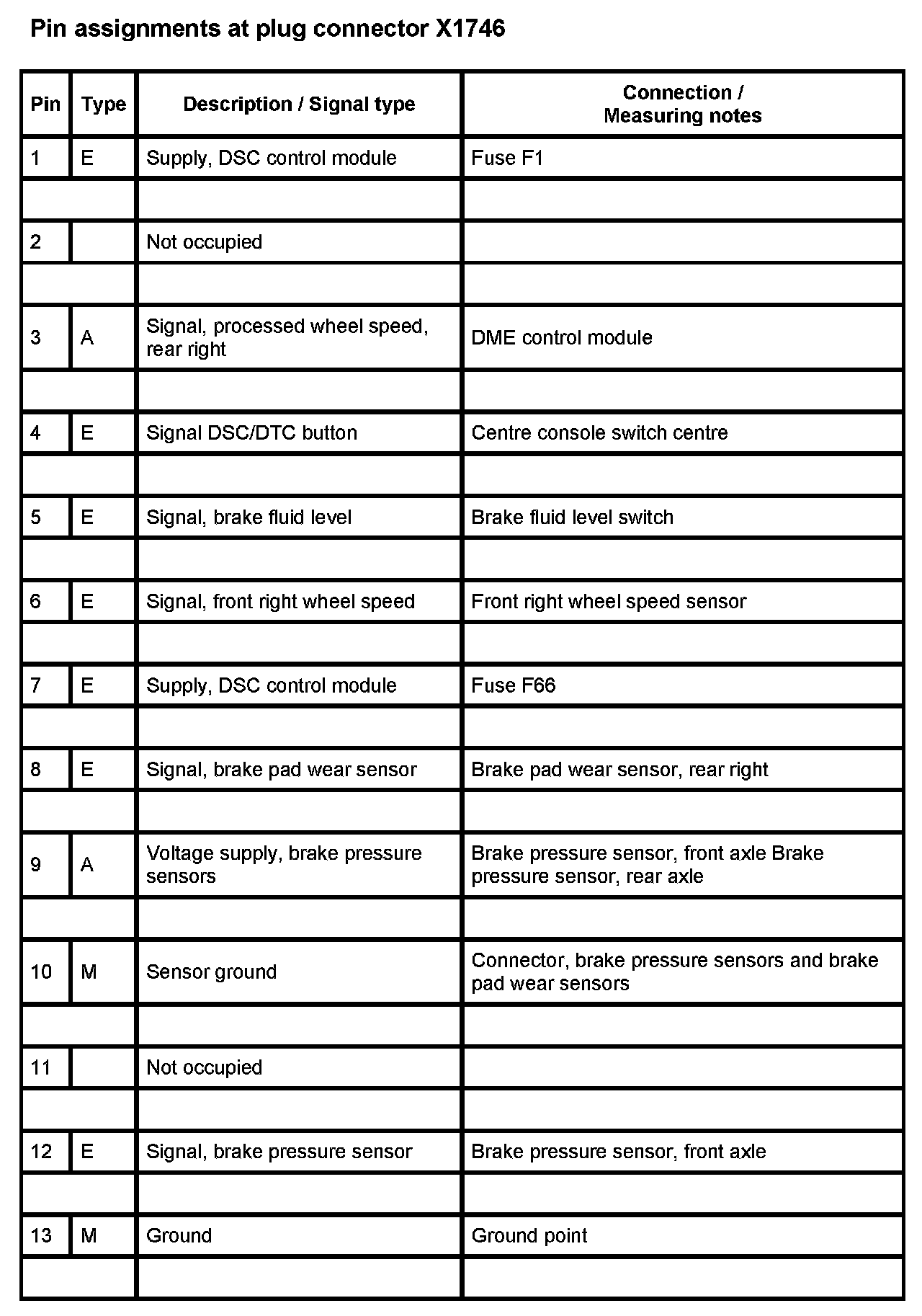

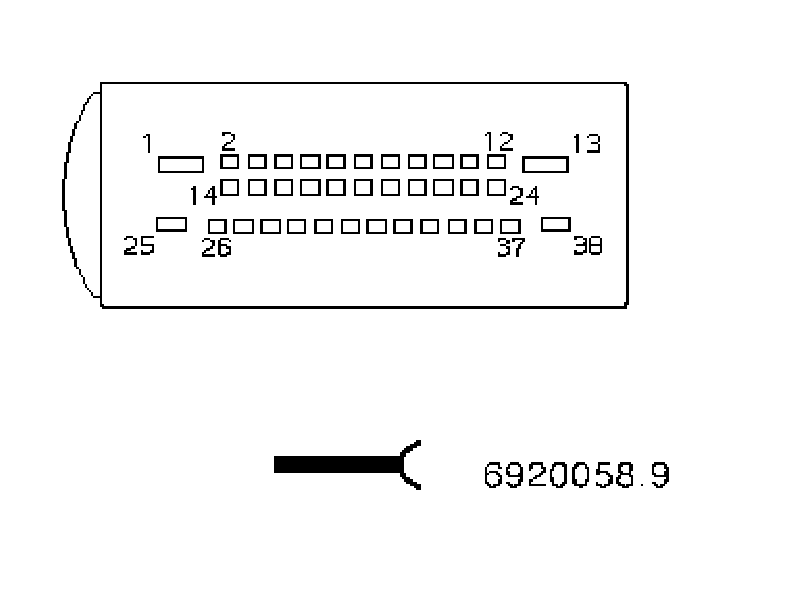

X1746:

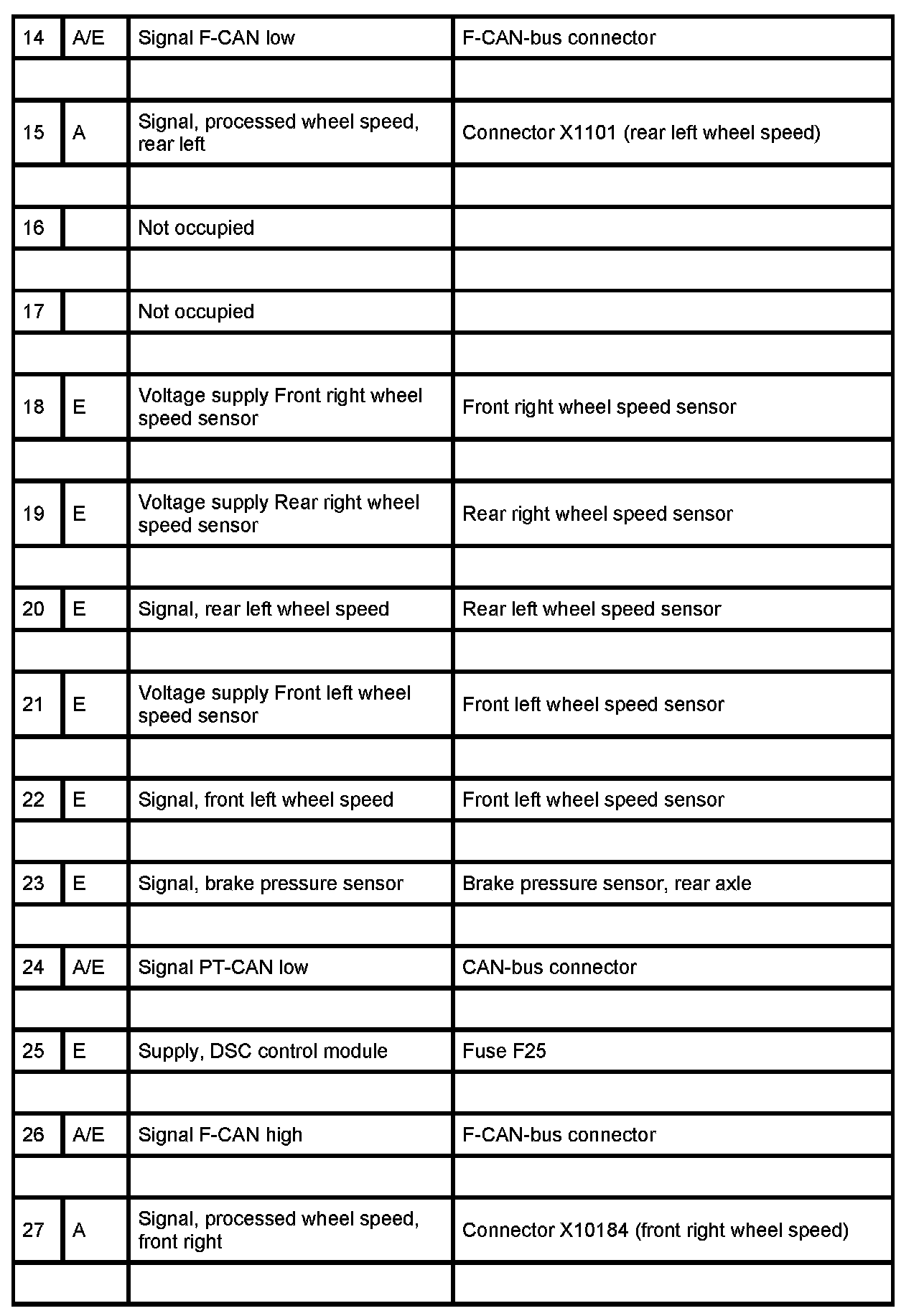

X1746 - Part 1:

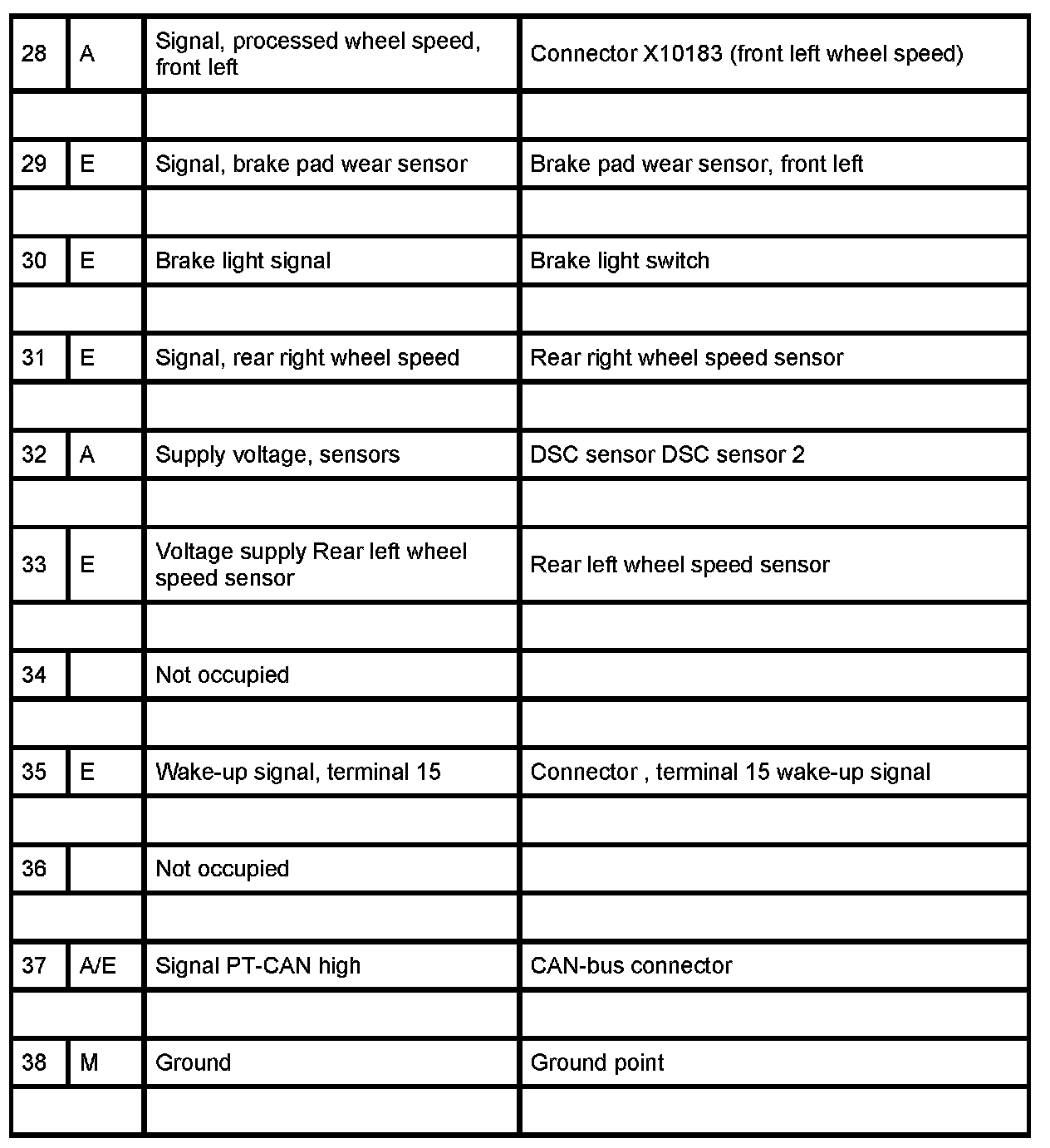

X1746 - Part 2:
X1746 - Part 3:
