Connectors From X0
>>
X01130 No Adapter
>>
A11a Heating/Air Conditioning System (IHKA Basic with N62 Engine)
A11a Heating/Air Conditioning System (IHKA Basic with N62 Engine)

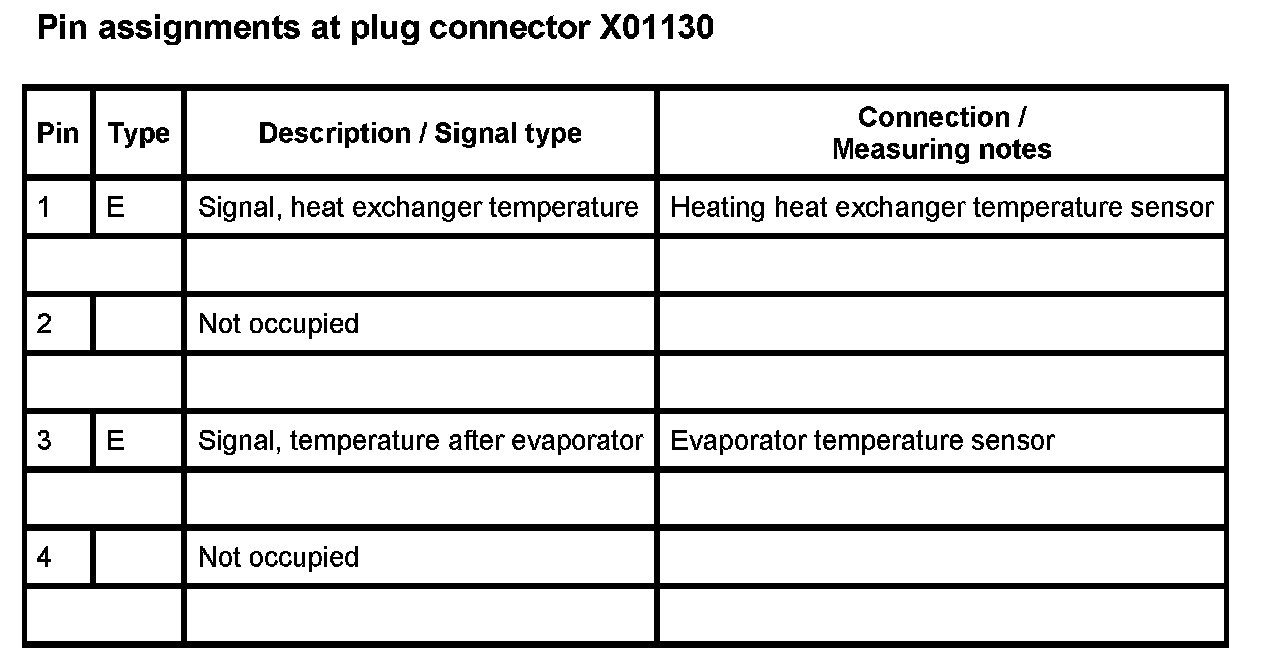

X01130 - Part 1:

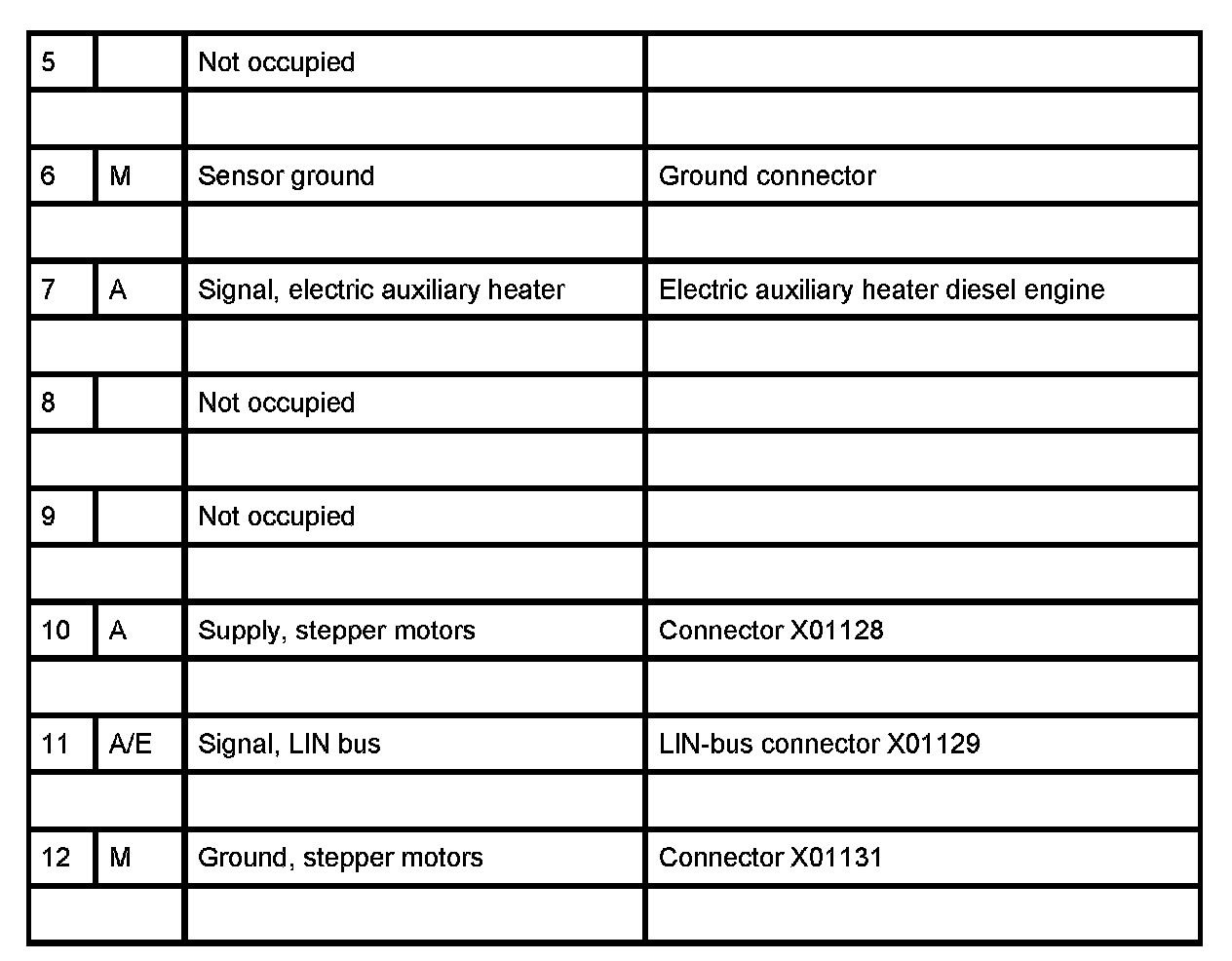

X01130 - Part 2:
