Main Pillar

Main Pillar

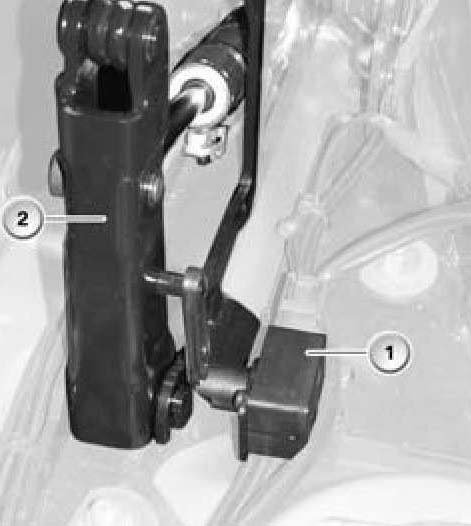

The angle of rotation sensor is designed as a potentiometer and is installed on the left hand main pillar. The output voltage changes at the wiper contact of the potentiometer during convertible top operation.
The CVM 5 converts the voltage values to angle values.
