Convertible Top Compartment Locked

Convertible Top Compartment Locked

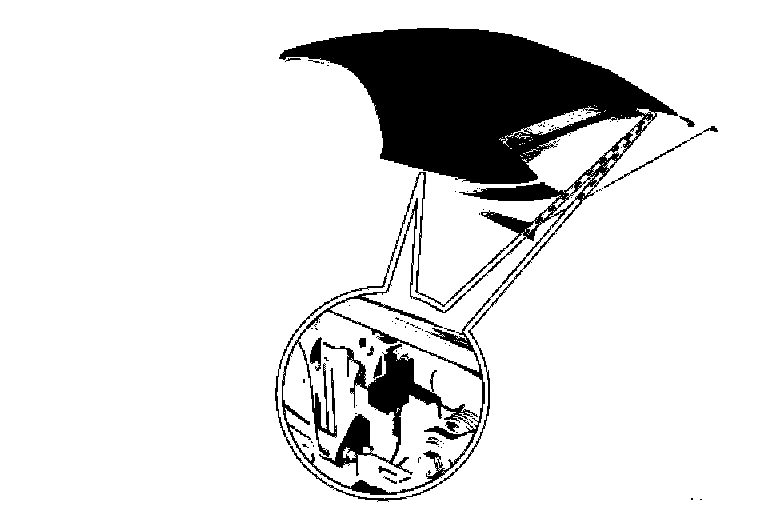

One Hall sensor is fitted on the left hand main bearing and the other on the right hand main bearing of the electro-hydraulic convertible top.
The two Hall sensors signal the Convertible top compartment lid locked at main bearing status to the CVM 5.
