Convertible Top Lock

Convertible Top Lock

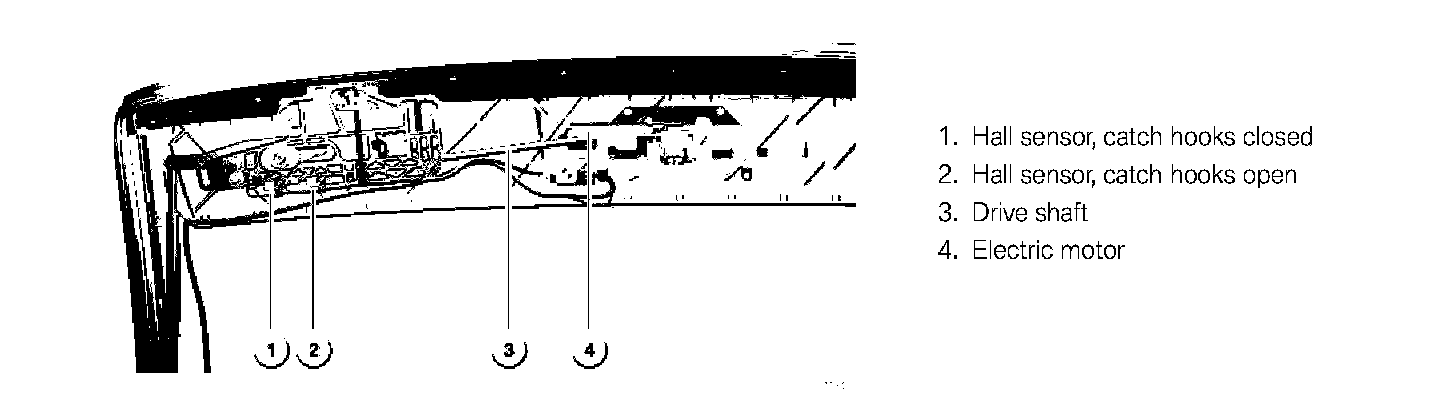

The catch hooks for the convertible top lock at the cowl panel are driven by an electric motor.
The Hall sensors are installed on the left hand side of the front brace. They signal the Convertible top locked at cowl panel and Convertible top released at cowl panel statuses.
