Basic Body Module KBM

Basic Body Module KBM
Convertible-specific power window functions Since the rear power windows feature no antitrapping circuit, the KBM evaluates and forwards the following statuses:
^ Power window in Open position
^ Power window between Open/Close or Close/Open position
^ Power window in Closed position
The power window Open or Closed positions are detected based on the blocking current of the power window motors.

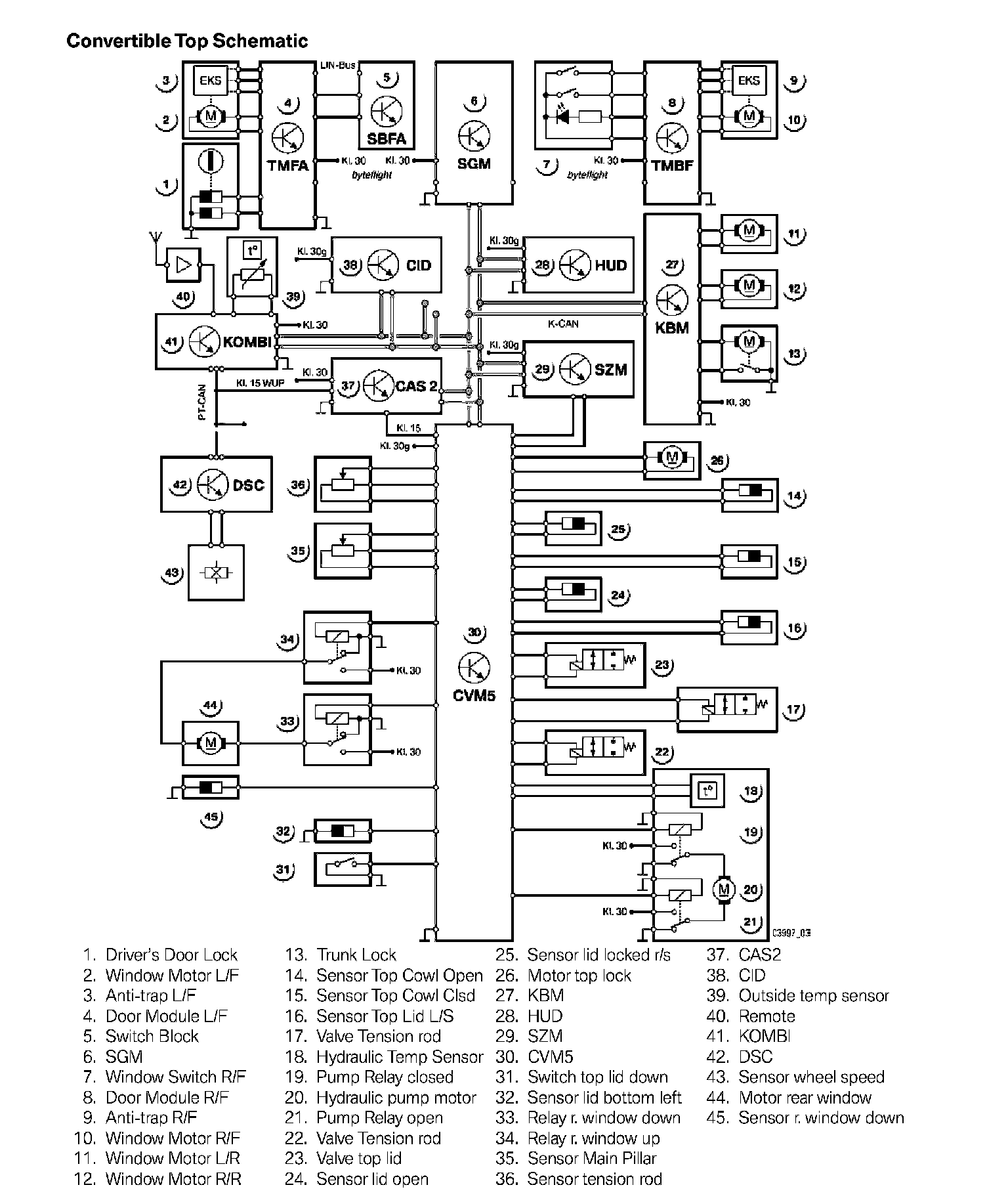

Convertible Top Schematic
