Removing and Installing Complete Night Vision Camera

66 54 010 - Removing and installing complete night vision camera (up to build date 09/07)





Important!
Read and comply with notes on protection against electrostatic damage (ESD protection) 61 35 ... Notes on ESD Protection (Electro Static Discharge).





Necessary preliminary tasks:
- Remove front bumper trim 51 11 156 Removing and Installing Front Bumper Trim

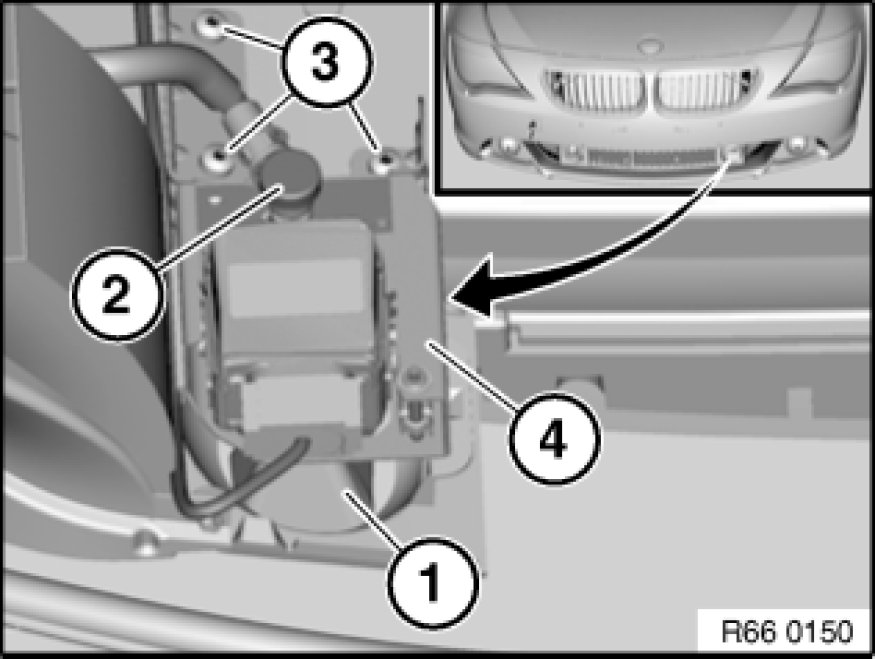

Disconnect plug connection (1).
Remove line for washer jet (2).
Release screws (3) and remove holder (4) with camera.
Tightening torque 66 54 1AZ [1][2]Forward Looking Camera.





After installation:
- Fill up with washer fluid
Replacement only:
- Replace night vision camera Replacing Night Vision Camera
