Removing and Installing/Replacing Power Steering Pump for Power Steering Gear with Dynamic Drive (M54)

32 41 037 - Removing and installing/replacing power steering pump for power steering gear with Dynamic Drive (M54)





Important!
Adhere to the utmost cleanliness. Do not allow any dirt to enter the hydraulic system.
Close off pipe connections with plugs.





Note:
When replacing power steering pump:
Fluid reservoir Service and Repair must be replaced in event of metal abrasion, sluggish pump shaft or increased wear!
The filter integrated in the fluid reservoir can only absorb a limited amount of foreign particles. If the filter clogs, the hydraulic system can no longer be sufficiently protected.
Metal abrasion is perceived in the fluid reservoir as metallically glittering hydraulic fluid.
It is only necessary to replace the fluid reservoir because of leaks (e.g. at hose connections) only in the event of the unavoidably high ingress of dirt.





Necessary preliminary tasks:
- Draw off and dispose of hydraulic fluid from fluid reservoir
- Remove front assembly underside protection Removing and Installing / Replacing Front Underbody Protection
- Remove fan cowl with electric fan Service and Repair
- Remove intake filter housing Service and Repair
- Remove belt pulley Removing and Installing/Replacing Belt Pulley on Vane Pump for Power Steering





Release hose clamp (1) and detach suction line from power steering pump.
Release banjo bolt (2) and detach pressure line for Dynamic Drive from power steering pump.
Release banjo bolt (3) and disconnect pressure line for power steering from power steering pump.

Installation Note:
Replace all sealing rings.
Make sure hydraulic lines are laid without tension and with sufficient spacing to adjoining components.
Tightening torque 32 41 3AZ Pump and Oil Supply.





Version with active front steering: Disconnect plug connection (1).
Release screw (2).
Tightening torque 32 41 1AZ Pump and Oil Supply.

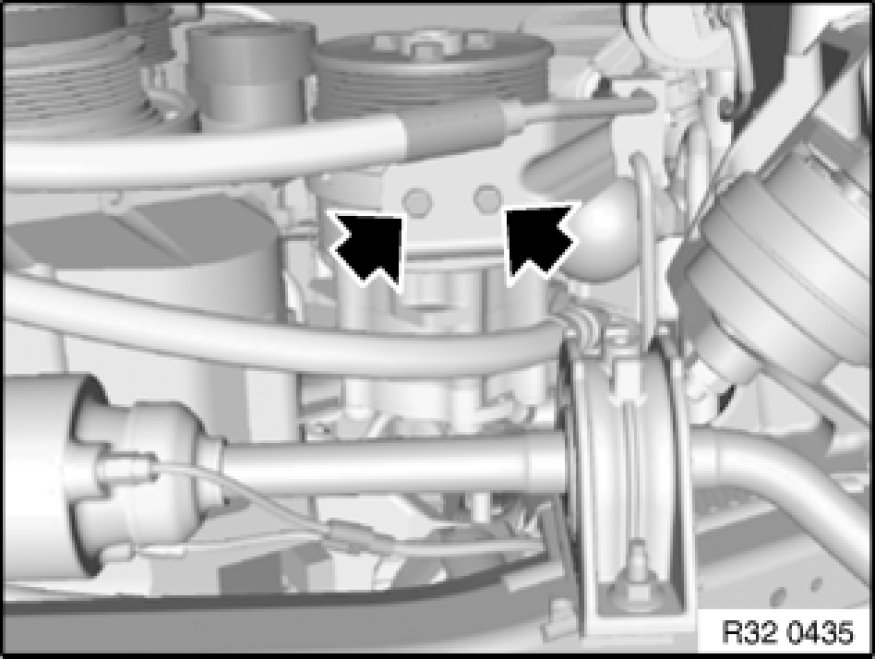

Release screws.
Tightening torque, 32 41 6AZ Pump and Oil Supply.
Remove pressure line with bracket from power steering pump.

Installation Note:
Make sure pressure line is laid without tension and with sufficient spacing to adjoining components.

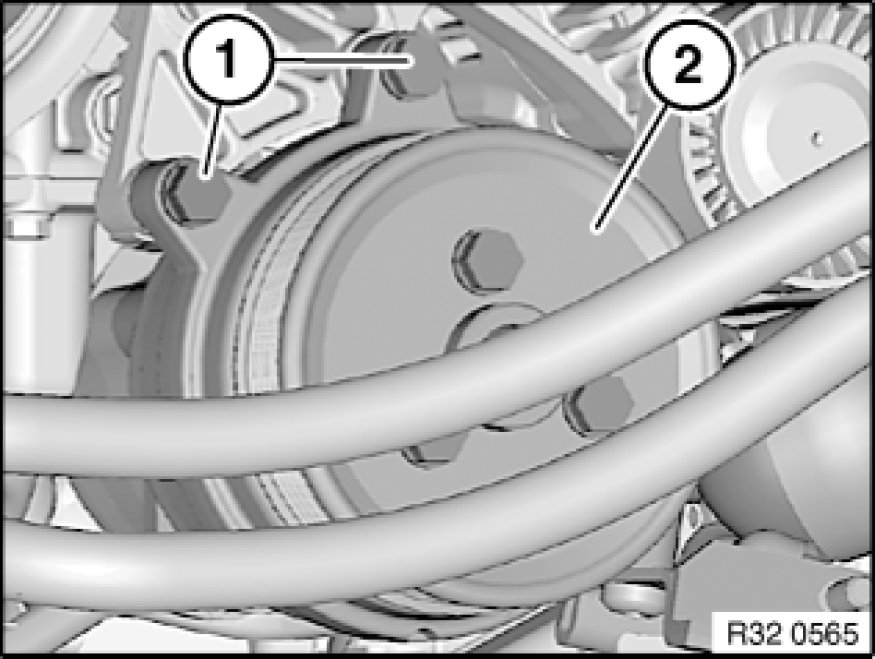

Release bolts (1).
Tightening torque 32 41 1AZ Pump and Oil Supply.
Remove power steering pump (2) downwards.





After installation:
- Fill and bleed hydraulic system Bleeding Power Steering (Version with Dynamic Drive)
- Check pipe connections for leaks
- If necessary, carry out initial Dynamic Drive operation Initial Inspection and Diagnostic Overview
