Electronic Noise Suppressor: Service and Repair

Removing And Installing/Replacing Suppression Filter

Necessary preliminary tasks:
- Remove panel for parcel shelf.

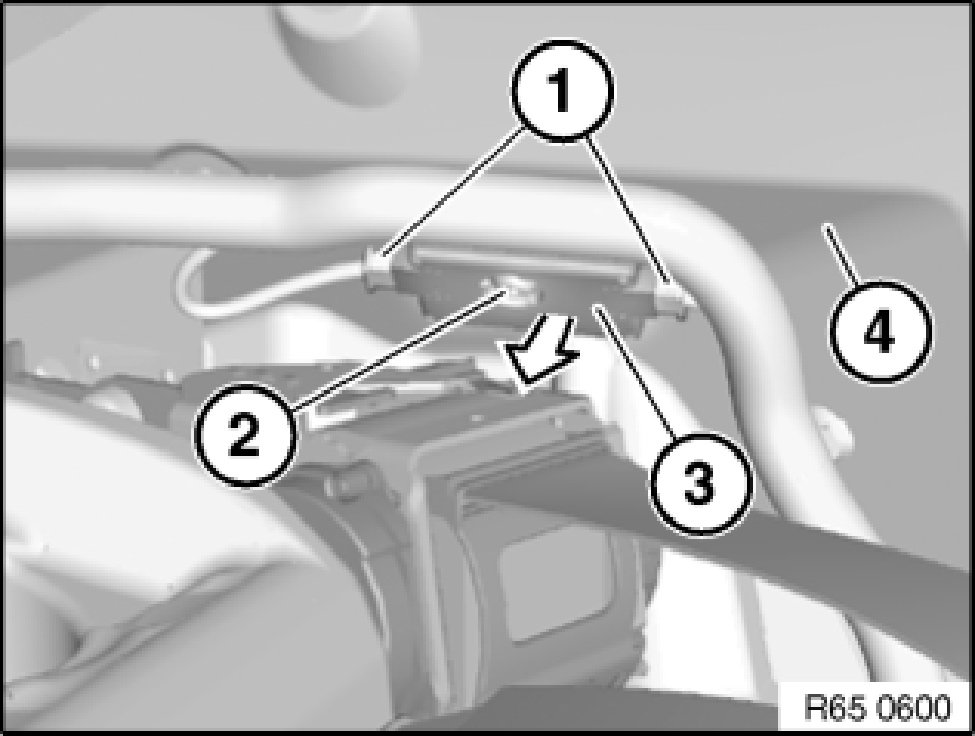

Disconnect plug connections (1).
Release screw (2).
Remove suppression filter (3) from C-pillar (4).

Installation:

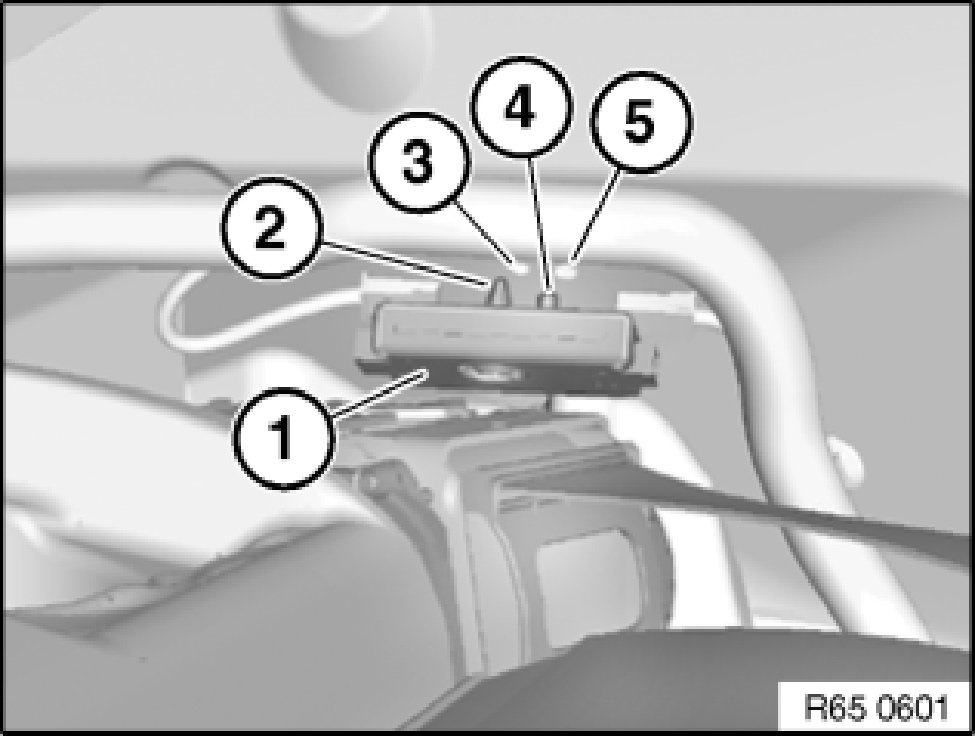

Fit suppression filter (1) so that screw (2) engages thread (3) and locating pin (4) engages bore (5).
