Leak Detector: Service and Repair

16 13 015 - Removing and installing/replacing tank leakage diagnosis module





Necessary preliminary tasks:
- Remove carbon canister with DMTL 16 12 010 Removing and Installing/Replacing Carbon Canister (DM-TL).

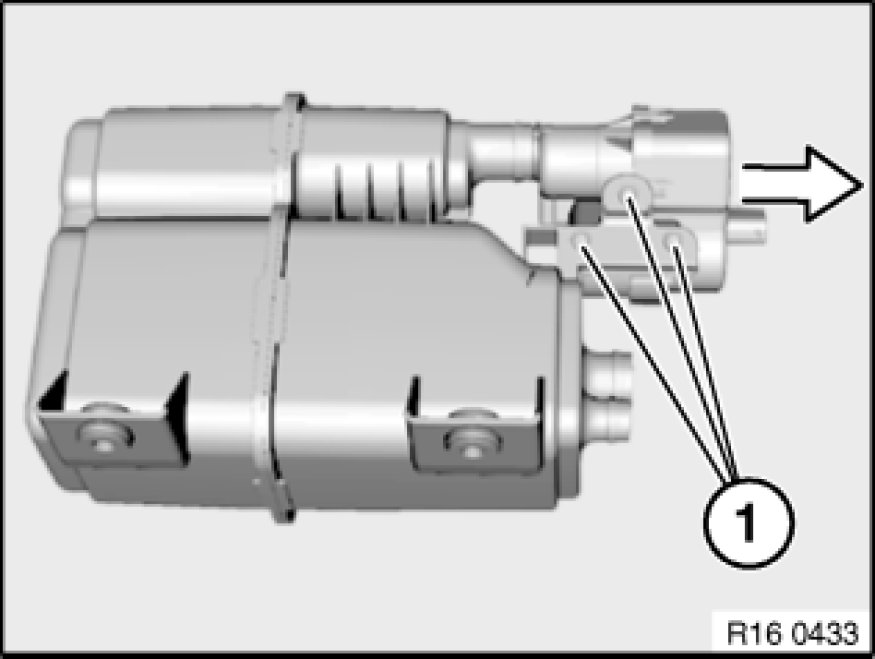

Unfasten screws (1).
Tightening torque 16 13 3AZ 16 13 Tank Ventilation.
Detach DMTL from carbon canister.
