Instrument Dials

Instrument Dials

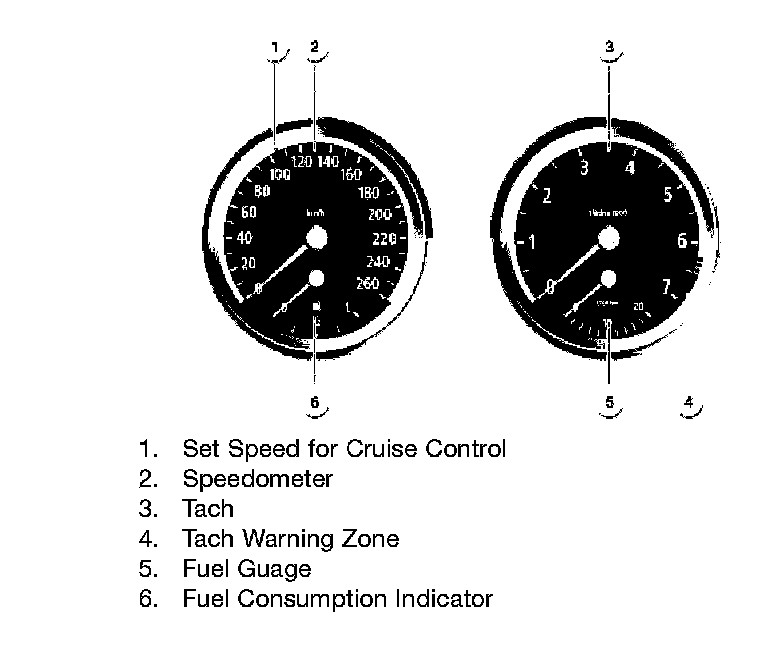

The instrument cluster includes the following dials:
^ Speedometer
^ Rev counter
^ Fuel gauge
^ Fuel consumption (economy) indicator
The set speed for the cruise control system and the tech warning are displayed by means of annular indicators (moving rings).

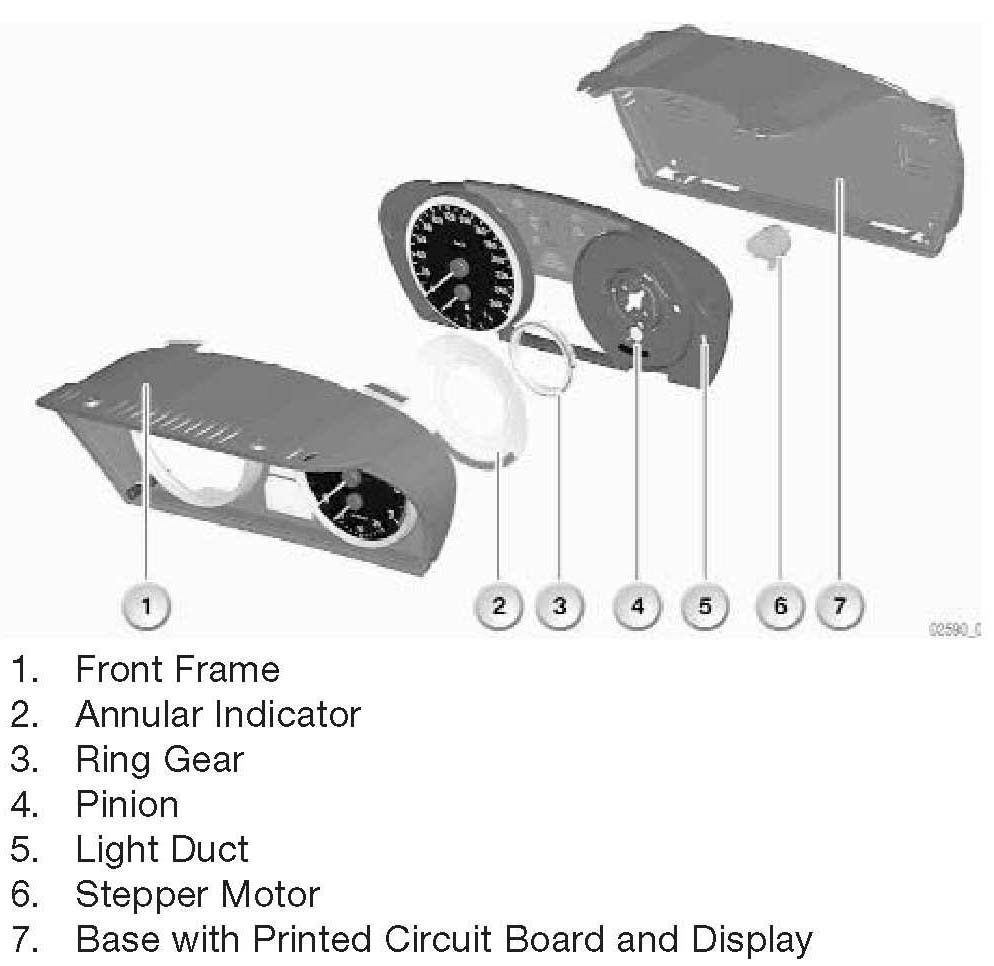

The annular indicator is moved by means of the ring gear, connected to the indicator, the pinion and the stepper motor which is attached to the rear of the light duct.
U.S. vehicle will have speedometers with 0-160 MPH and 0-7000 RPM displays.

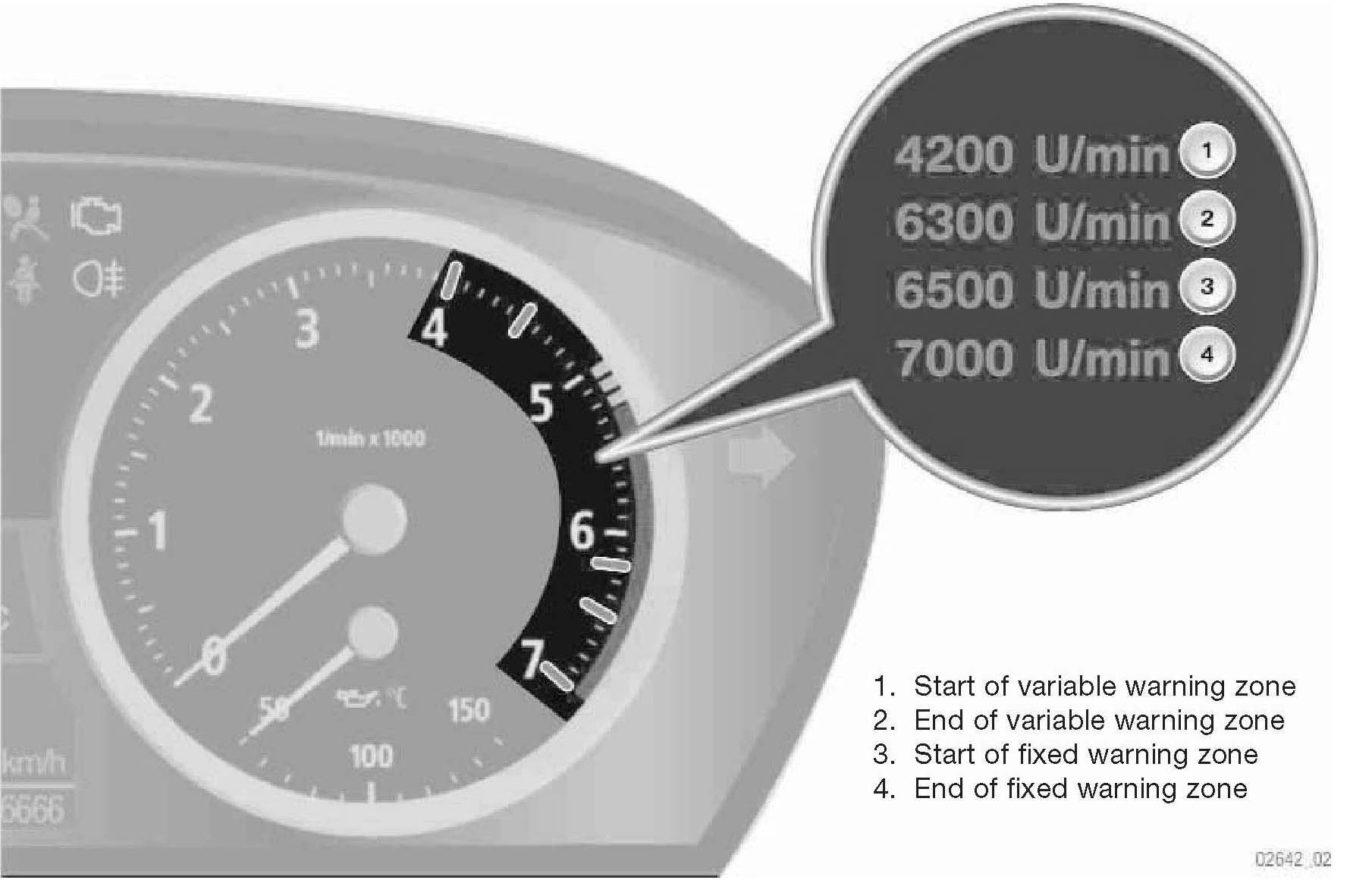

The maximum engine speed warning display is indicated by the tech as a function of engine temperature.








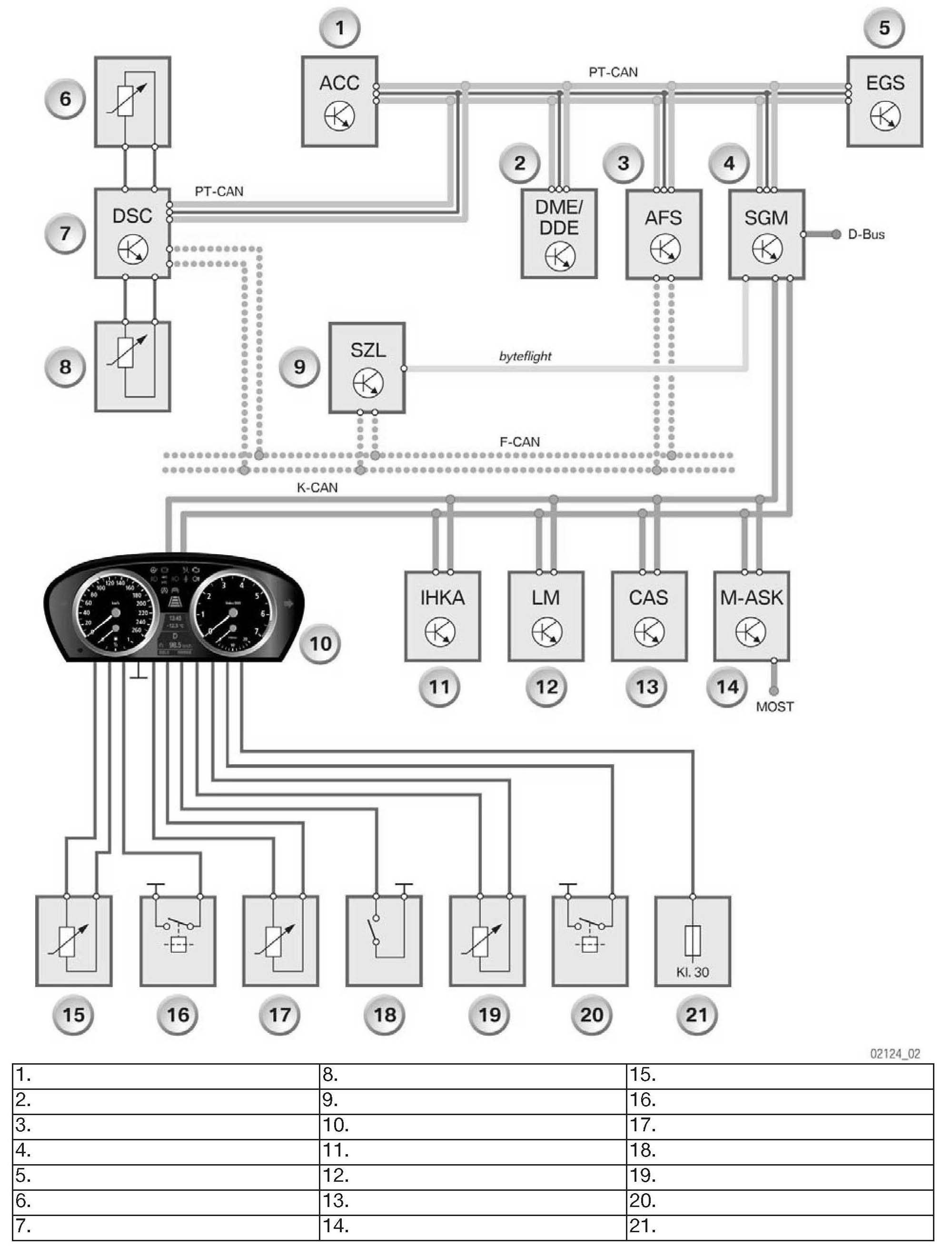

Instrument Cluster Schematic
