Displays In the Central Information Display (CID)

Displays in the Central Information Display (CID)


All information on the individual service operations can be displayed in the CID. The CBS functions are stored in the "Settings" menu item which is used exclusively for individual user settings.
Press the Controller, the Settings menu will appear.
Turn the controller until Service is highlighted, then press to activate the CBS menu.

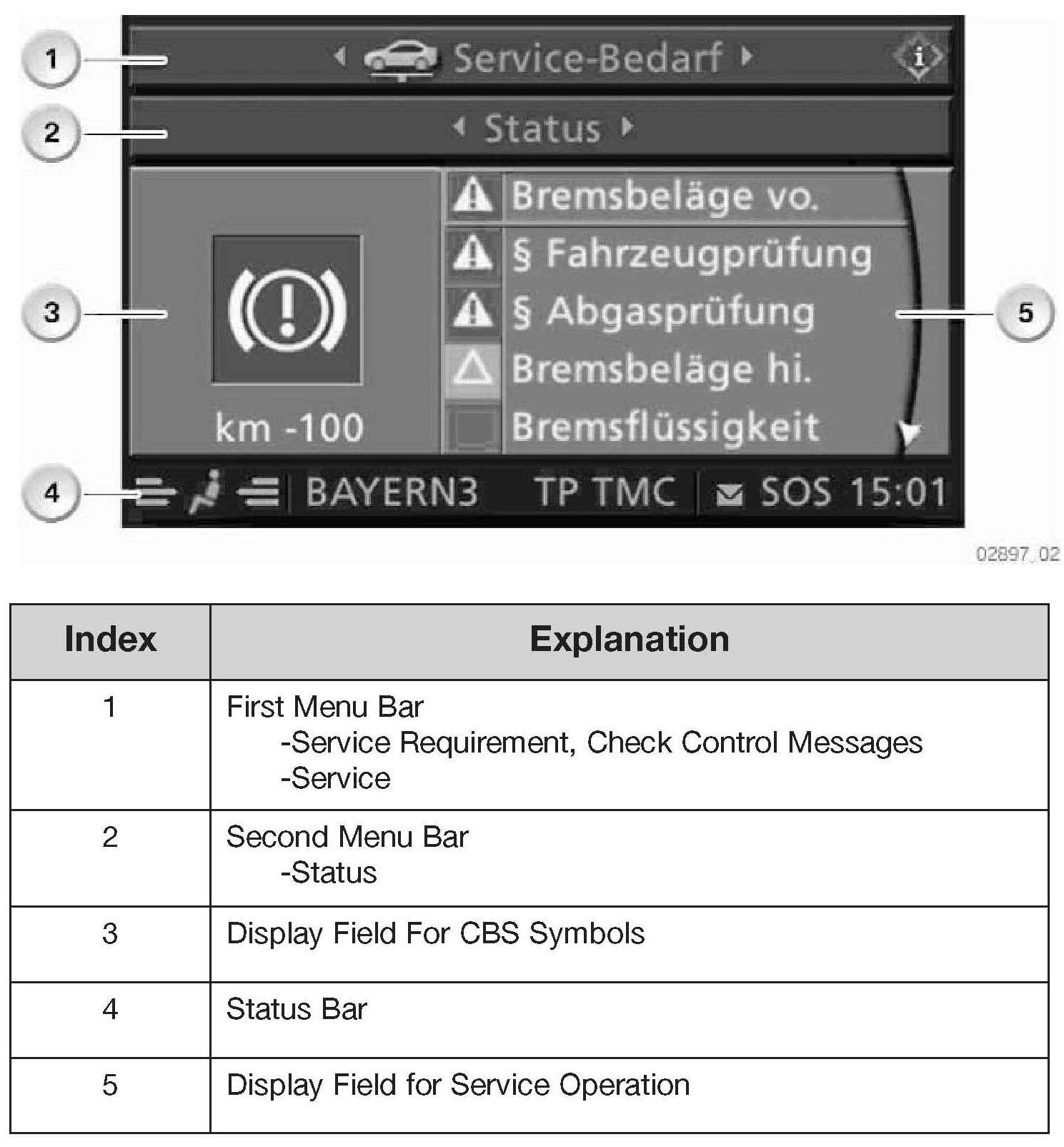

The CBS menu window will appear; this is divided into the following control and display fields:
^ Status bar
^ First menu bar
^ Second menu bar
^ Display field for CBS symbol
^ Display field for service operation

Note: All screen shots shown are derived from a simulation of a version with featuring a 6.5 medium-resolution colour LC display and correspond to the status at the time of going to press. Further changes are possible to the contents and the layout.





The service operation display field always shows the first five messages.
The displays are colour-coded and some also have a symbol. The displays mean the following:
^ Red - The service operation is overdue
^ Yellow - The service operation is due shortly
^ Green - No service operation required
Any overdue service operations and symbols marked in red in the list are always at the top of the list of messages.
You can scroll through the list of the service operations from top to bottom by turning the controller (left/right).
To display the information concerning a specific service operation on the CID, turn the controller to select the required service operation and display the selection by pressing the controller.
