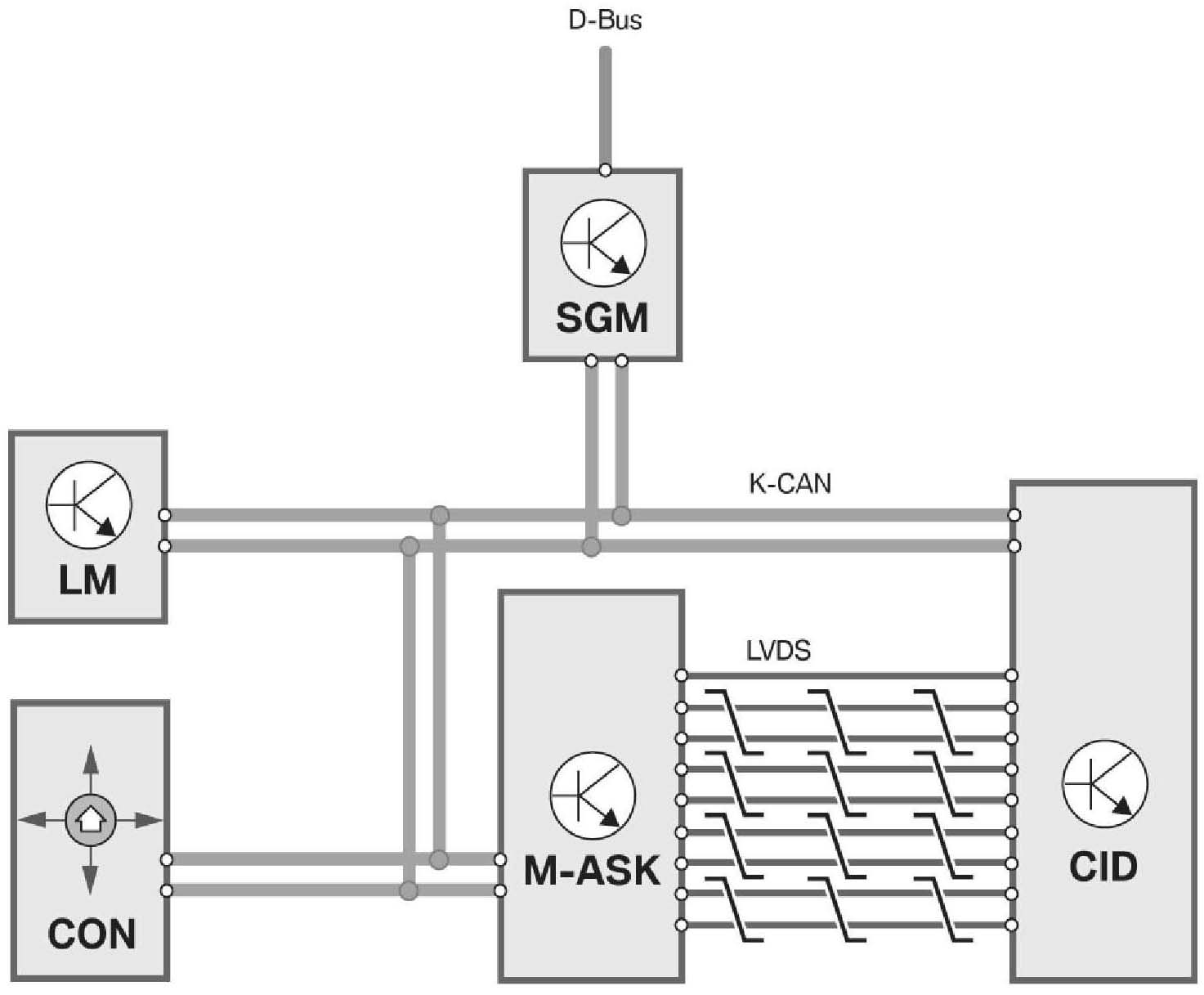

The M-ASK generates the LVDS data (Low Voltage Differential Signaling) for the graphic display in the Central Information Display.
The central operating control for the Central Information Display is the controller. The controller is connected to the CID via the centre console control centre (SZM) and the K-CAN system.
The safety base module (SGM) provides the diagnostics interface for the CID via the diagnostics bus.
