Home >> BMW >> 2005 >> 530 (E60) L6-3.0L (M54) >> Repair and Diagnosis >> Engine, Cooling and Exhaust >> Engine >> Cylinder Head Assembly >> Specifications >> 11 12 Cylinder Head with Cover >> 5AZ - 6AZ

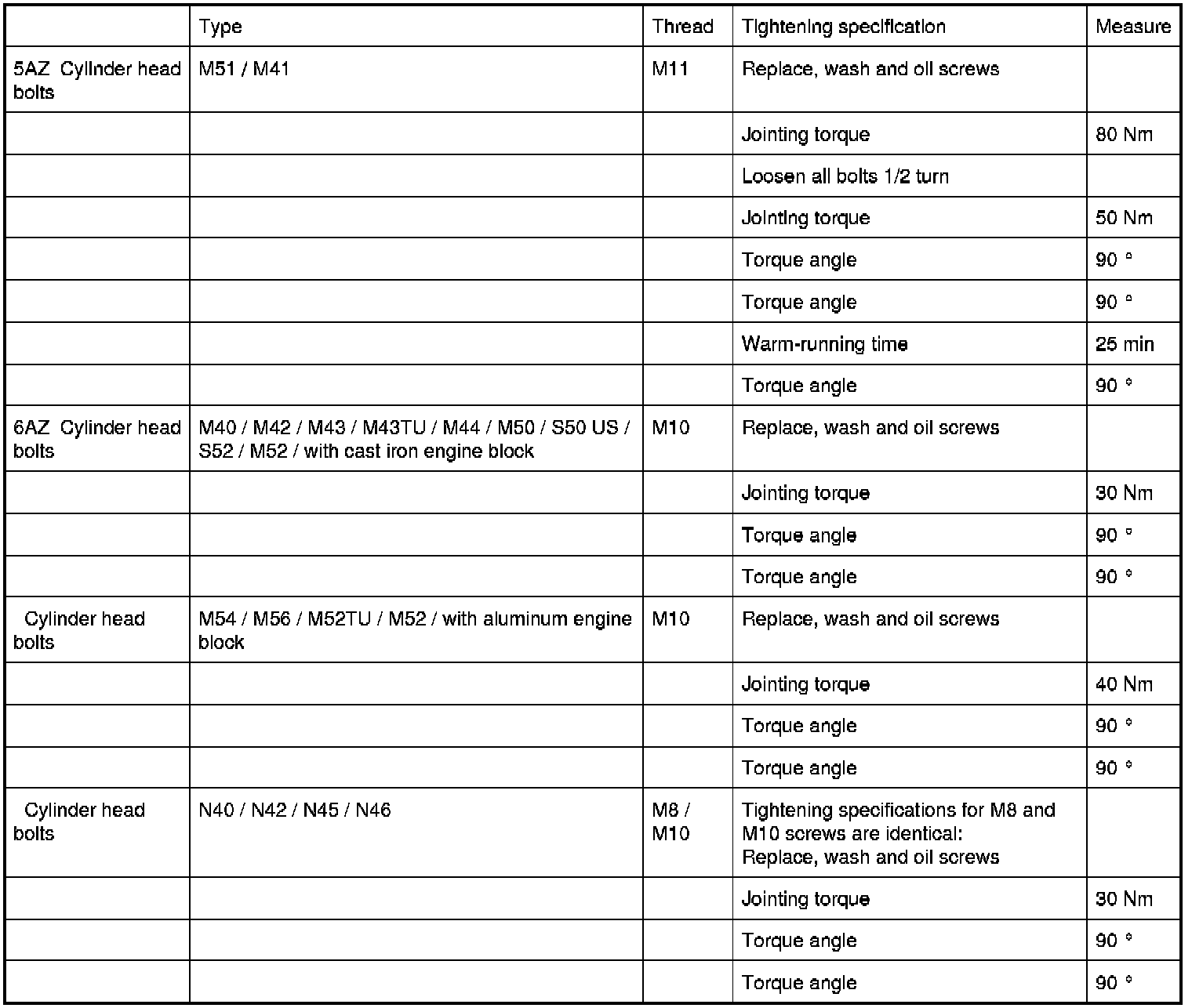

5AZ - 6AZ

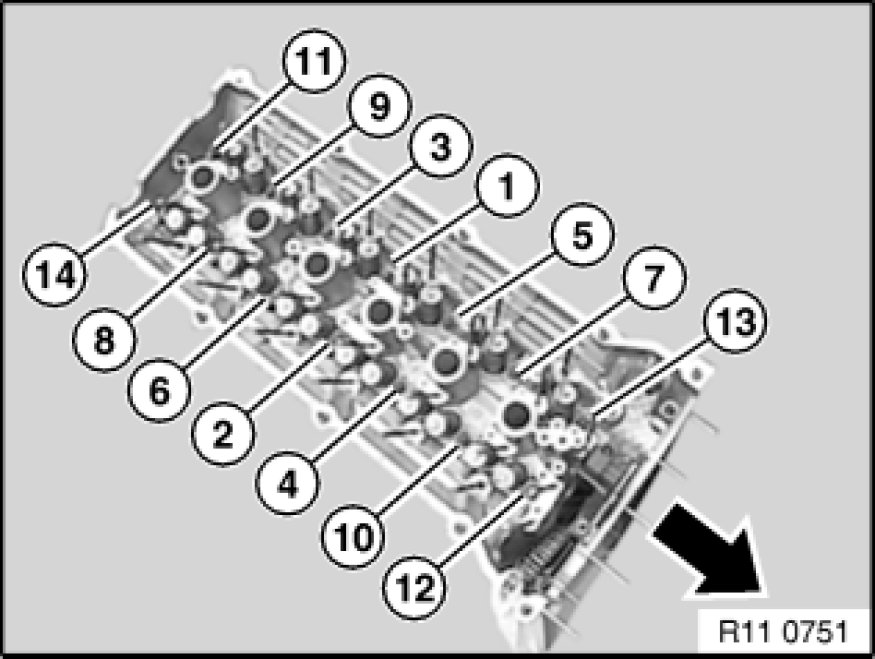

11 12 Cylinder Head with Cover




Use cylinder head bolts only once.
