Home >> BMW >> 2005 >> 530 (E60) L6-3.0L (M54) >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Drive >> Motor Electronics (DME Digital Engine Electronics MS45) >> Secondary Air System >> Secondary Air, Hot-Film Air Mass Meter (DME MS45.1)

Secondary Air, Hot-Film Air Mass Meter (DME MS45.1)

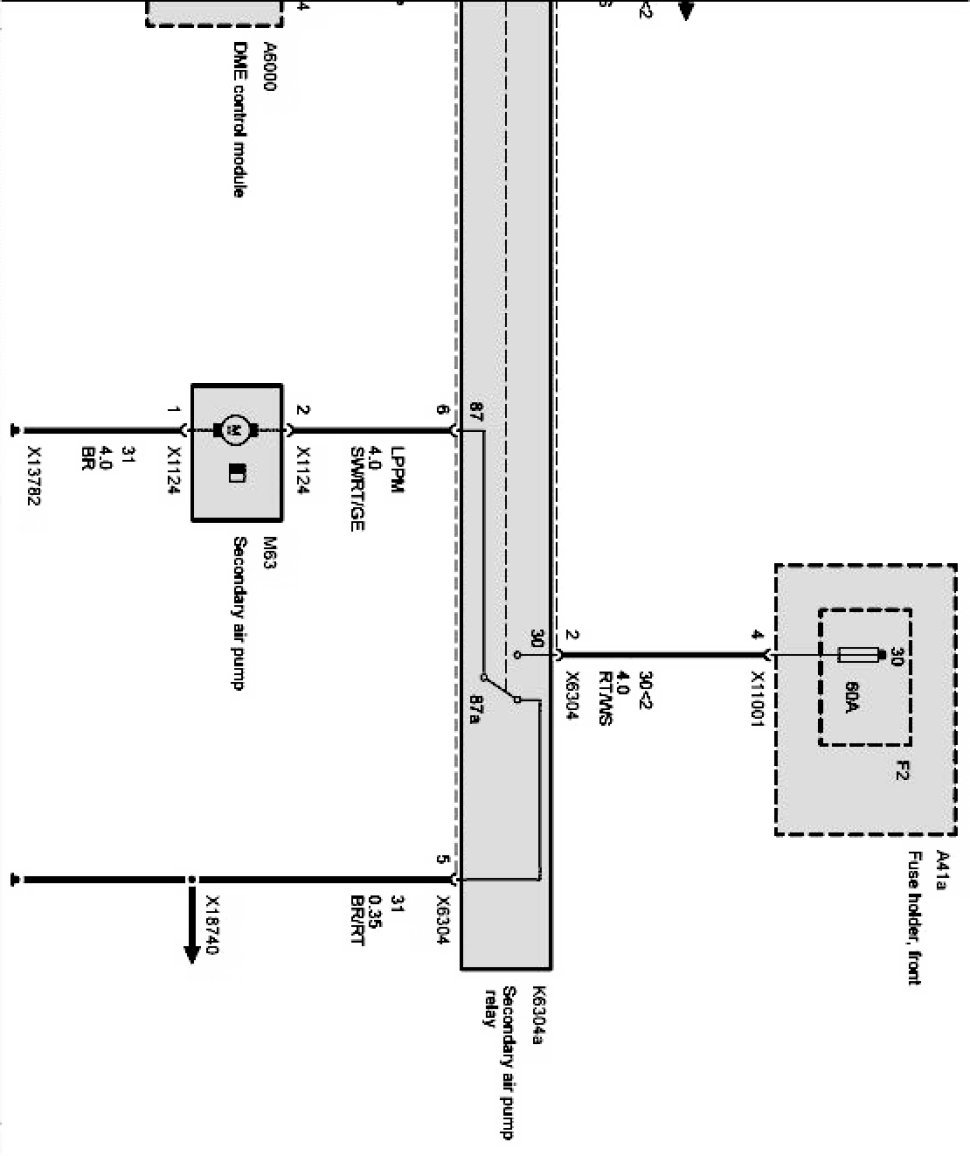

Secondary-air system Part 1:

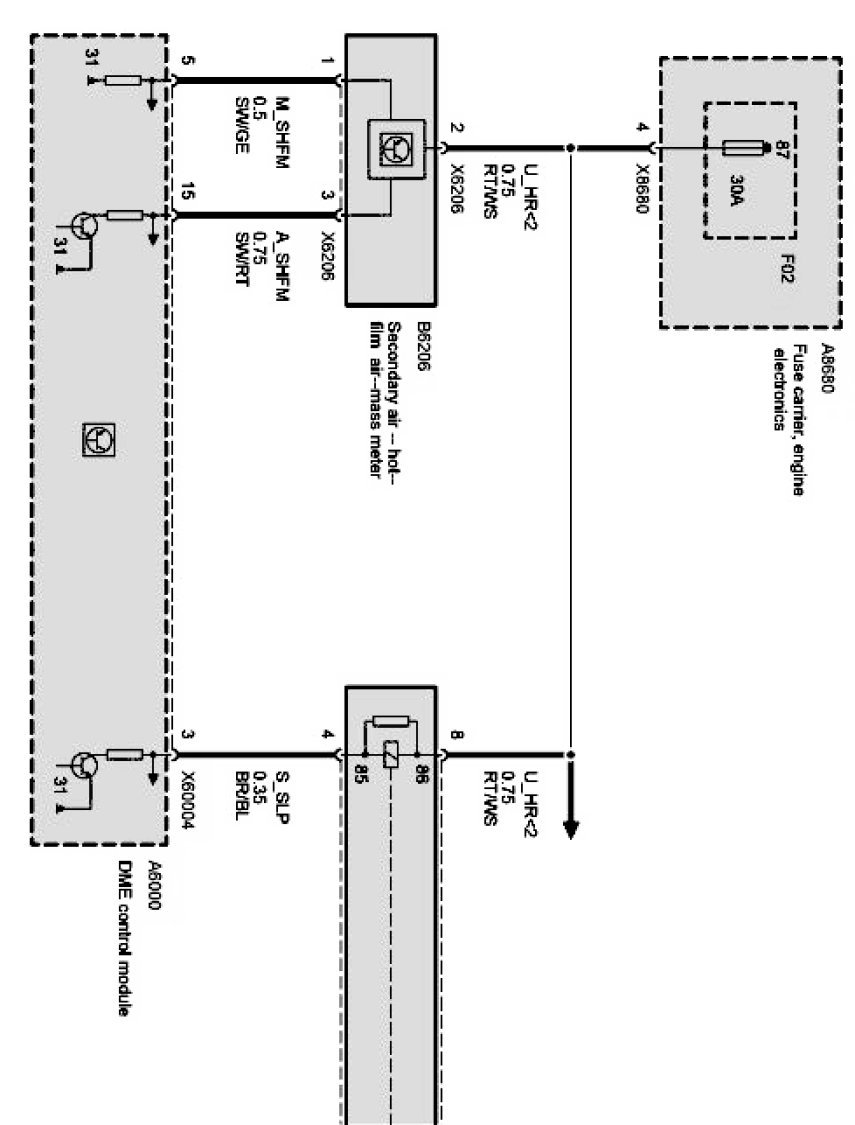

Secondary-air system Part 2:
