Oxygen Sensor Before Catalytic Converter (DME MS45.1)

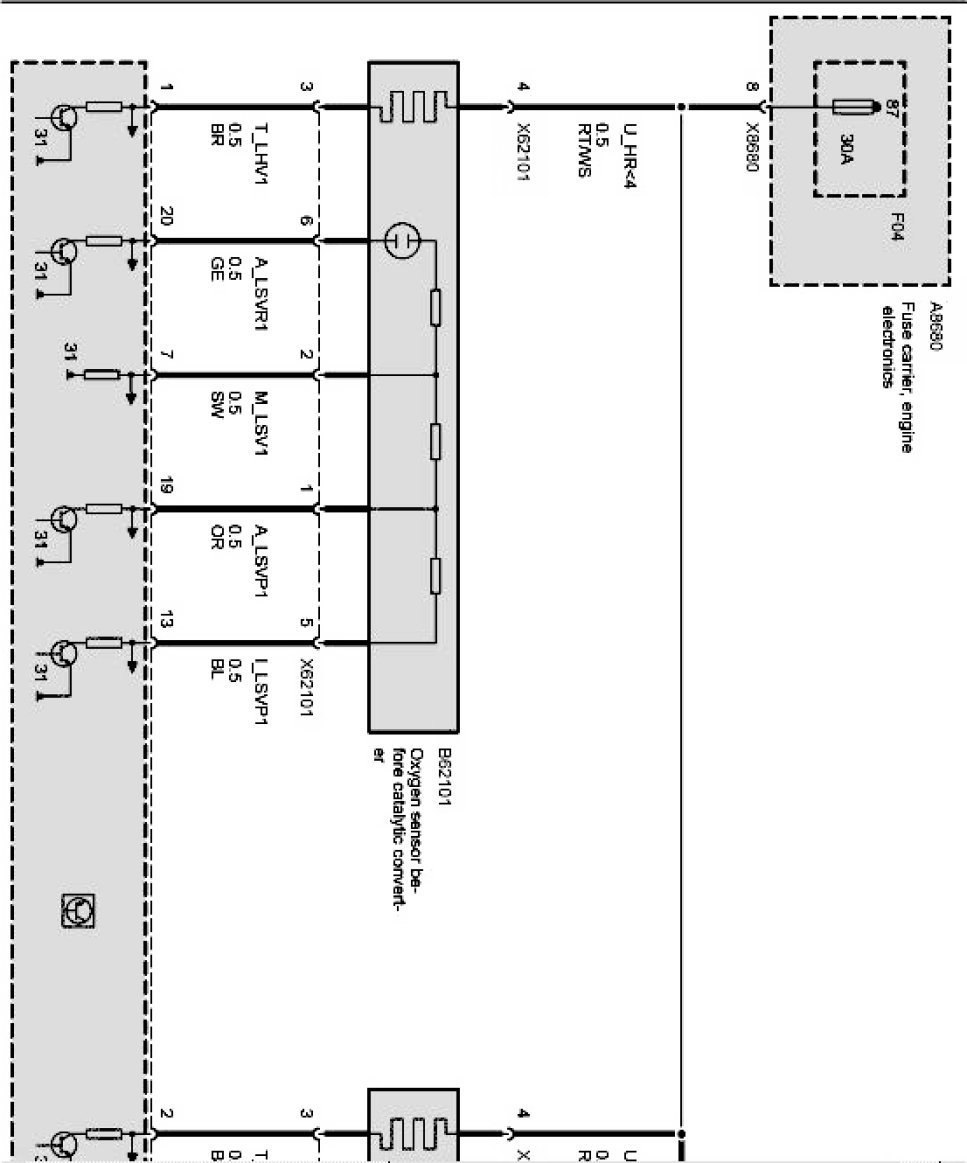

Oxygen sensors before catalytic converter Part 1:

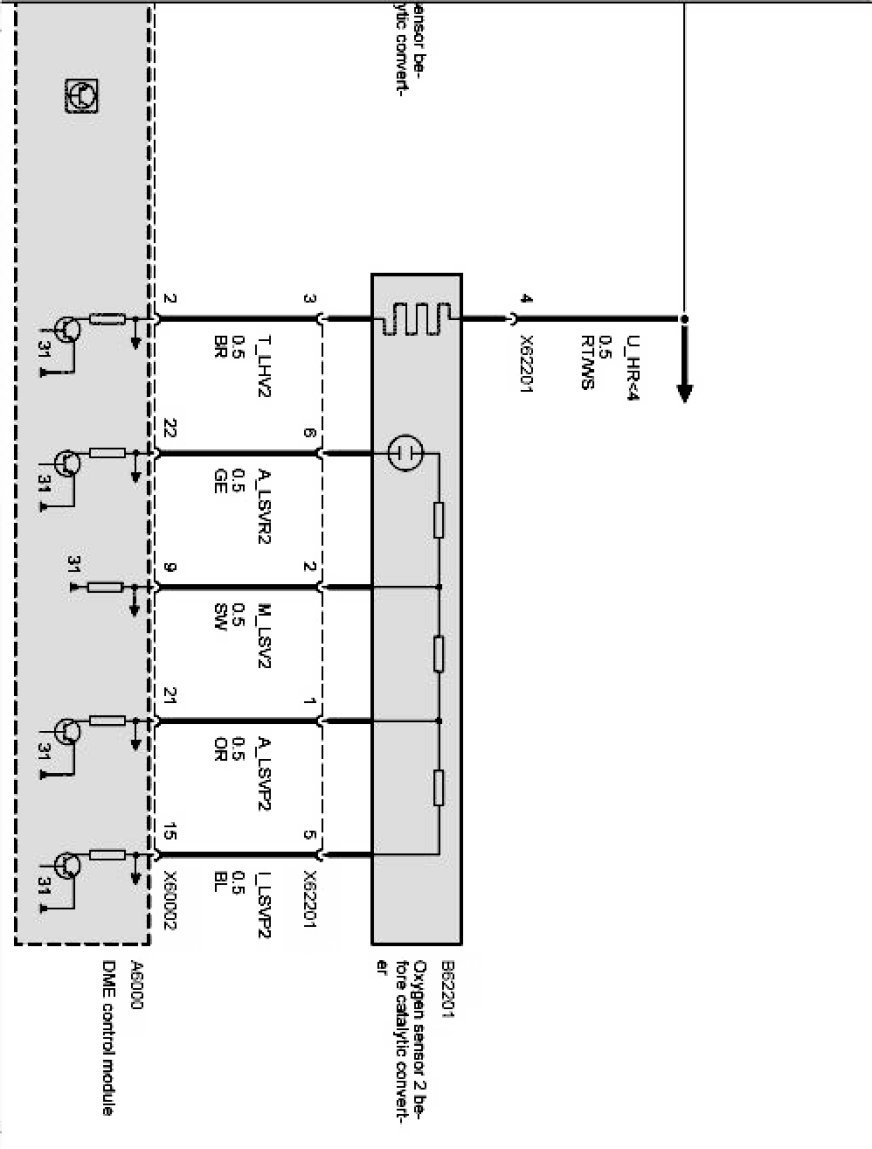

Oxygen sensors before catalytic converter Part 2:
