Home >> BMW >> 2005 >> 530 (E60) L6-3.0L (M54) >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Body >> Seats (5 Series_E60/E61) >> Seat Adjustment, Driver's Side >> Driver's Seat Adjustment (Up to 03/05 With SMFA Seat Module, Driver Without (Lumbar Support or Sport Seat))

Driver's Seat Adjustment (Up to 03/05 With SMFA Seat Module, Driver Without (Lumbar Support or Sport Seat))

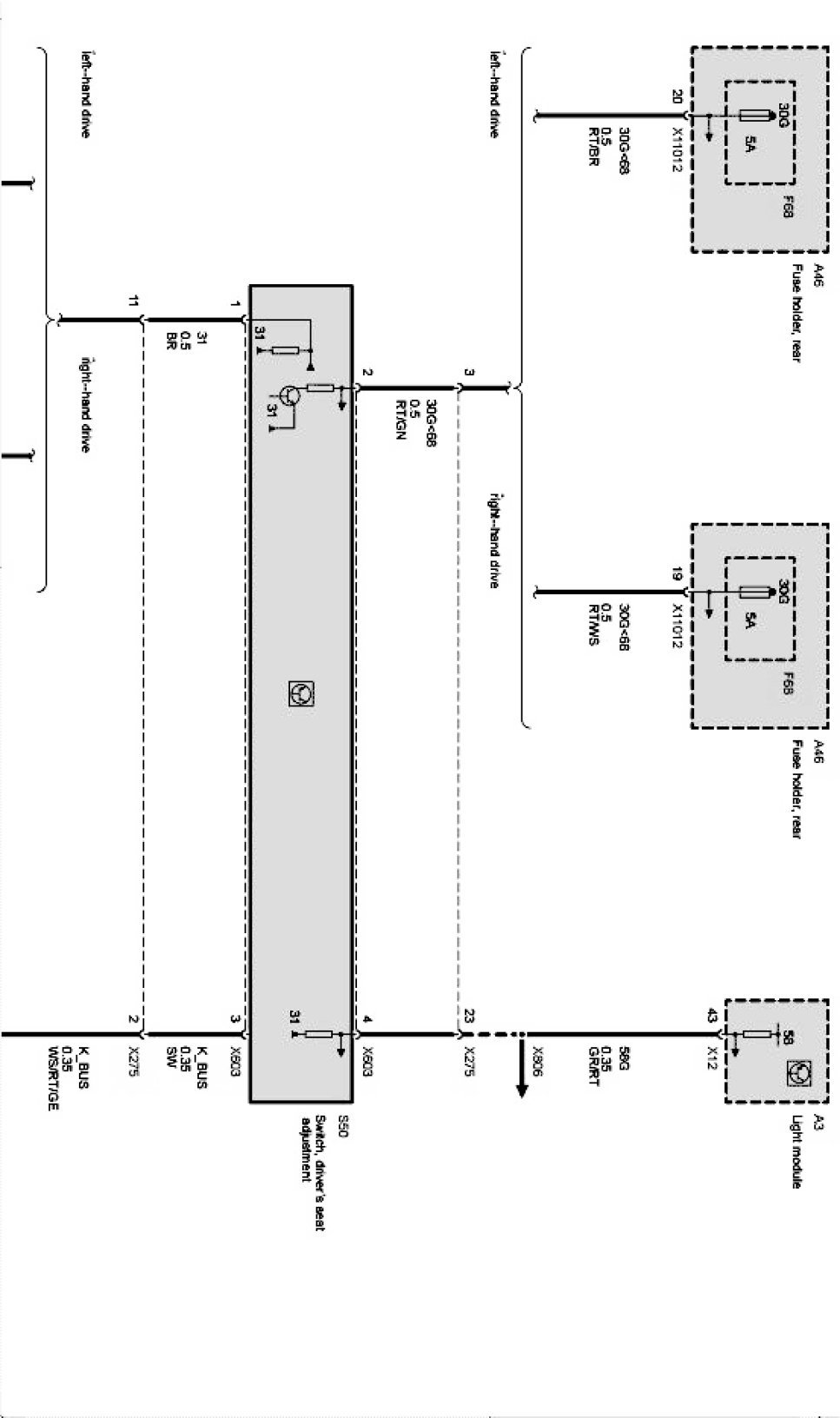

Driver-seat adjuster Part 1:

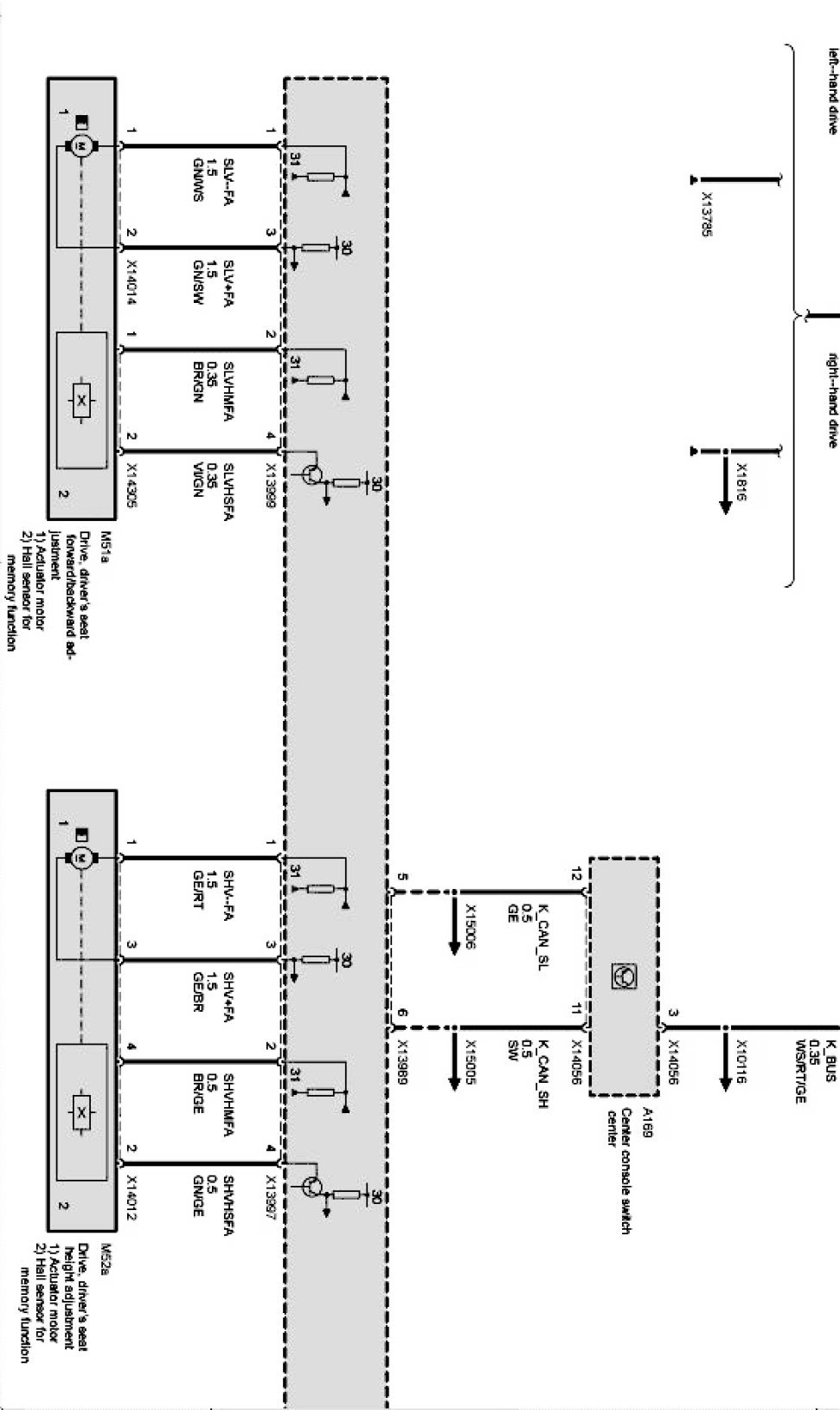

Driver-seat adjuster Part 2:

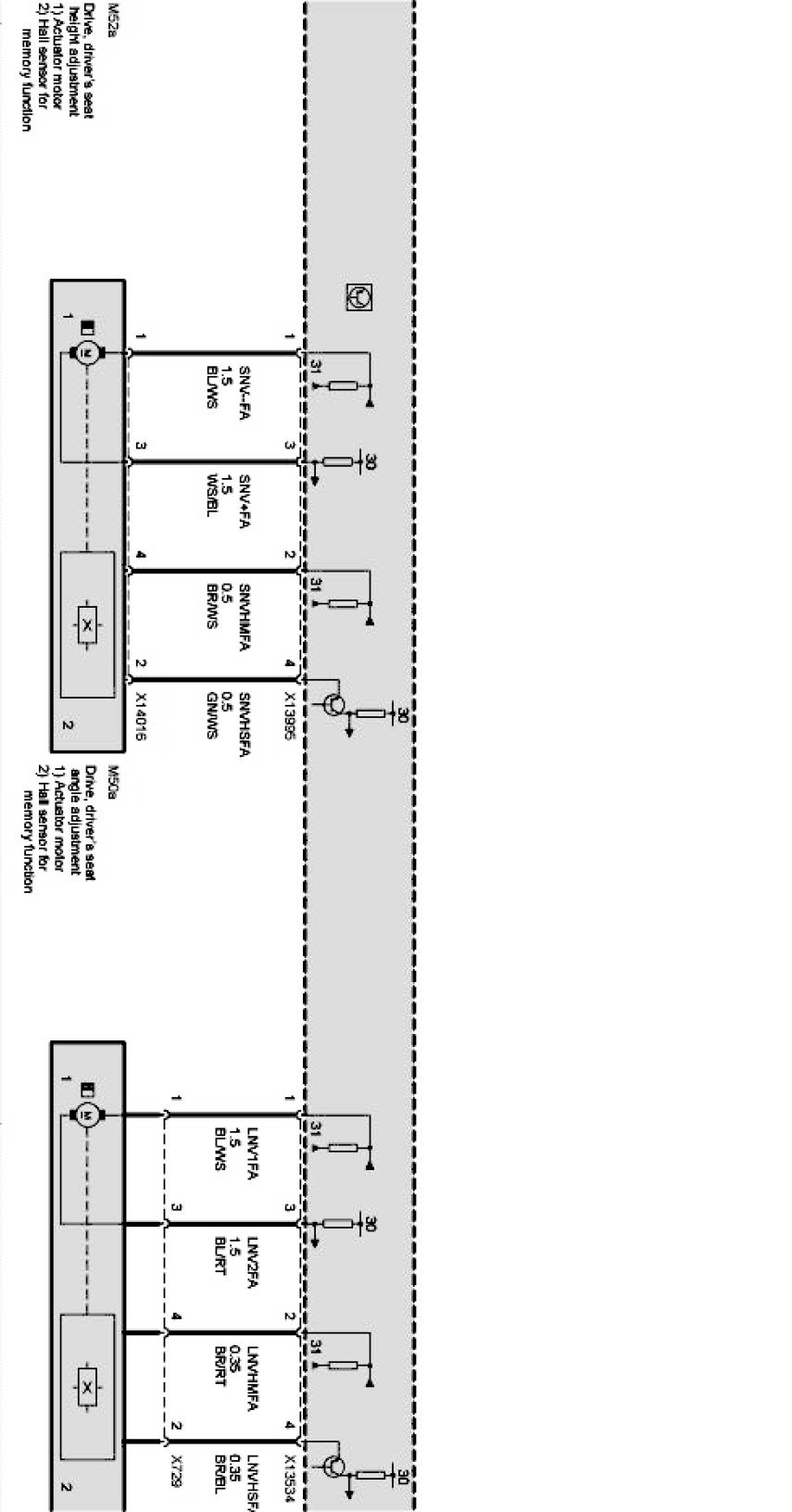

Driver-seat adjuster Part 3:

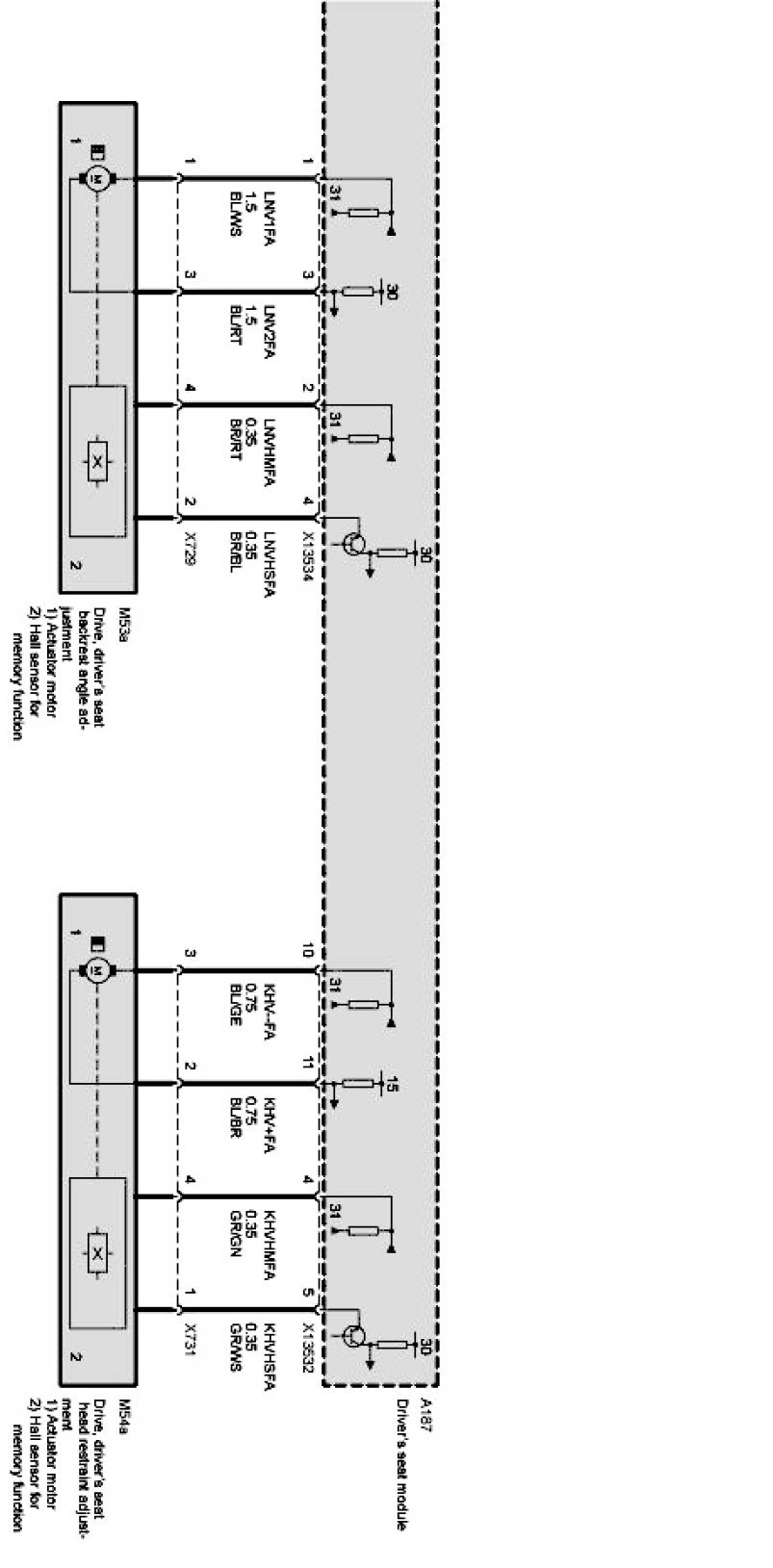

Driver-seat adjuster Part 4:
