34 41 220 Removing and installing/replacing all handbrake shoes
Special tools required:
^ 32 1 030
^ 34 4 000

Installation:
^ Remove rear brake disk.

After completing tasks, adjust handbrake.





Lock adjuster unit (ASZE).

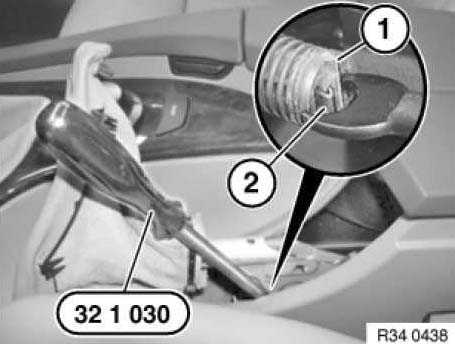

Using special tool 32 1 030, press stop (2) of adjusting spring back to such an extent that retaining hook (3) engages in stop (2).

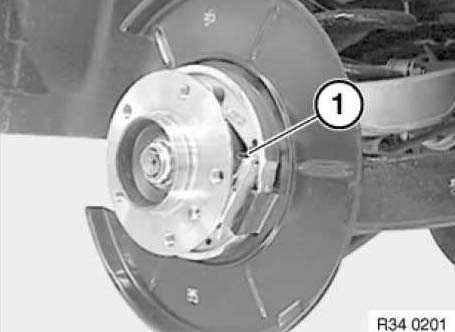

Disconnect return spring (1)with brake spring pliers.

Installation:
Check return spring (1), replace if necessary.
Figure illustrates right side: left side is mirror image of this.
Pay attention to installation position of adjustment screw (2)
Apply a thin coat of grease to bush and screw threads,
refer to BMW Service Operating Fluids.

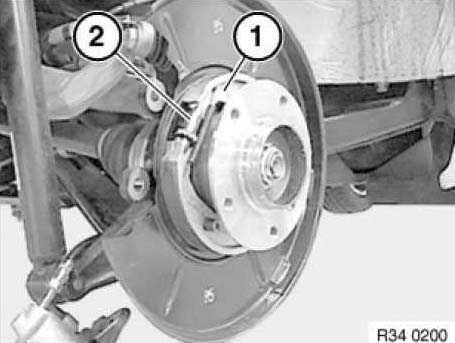

Disconnect return spring (1)with brake spring pliers.

Installation:
Check return spring (1), replace if necessary.

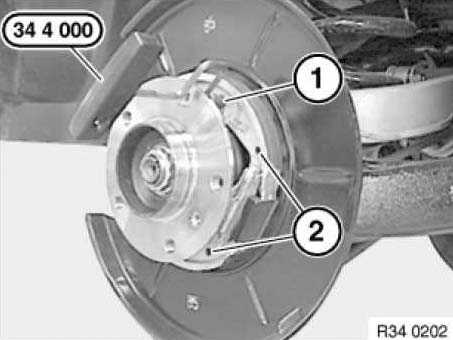

Turn clamping pins (1) with special tool 34 4 000 through 90° and disconnect.
Remove brake shoes (2).
