Procedures

34 41 000 Removing and installing/replacing handbrake lever

Special tools required:
^ 32 1 030

Necessary preliminary tasks
^ Remove center console.

After completing tasks, adjust handbrake.





Lock adjuster unit (ASZE).

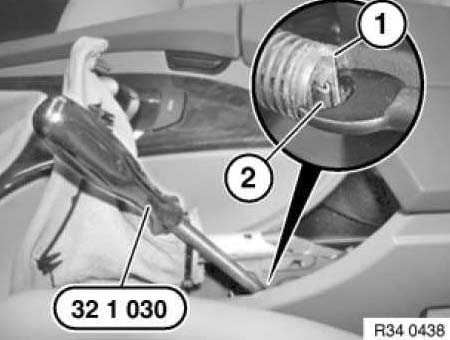

Using special tool 32 1 030, press stop (2) of adjusting spring back to such an extent that retaining hook (3) engages in stop (2).

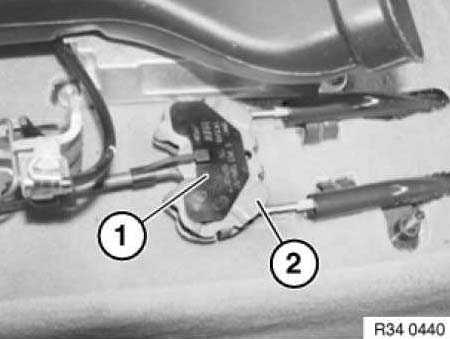

Unclip mounting clip (1) upwards out of balance arm (2).





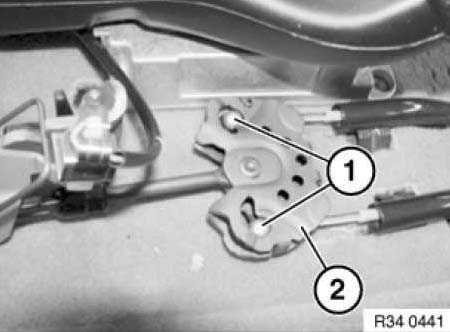

Guide handbrake Bowden cables (1) with a screwdriver inwards and pull out of balance bar (2).

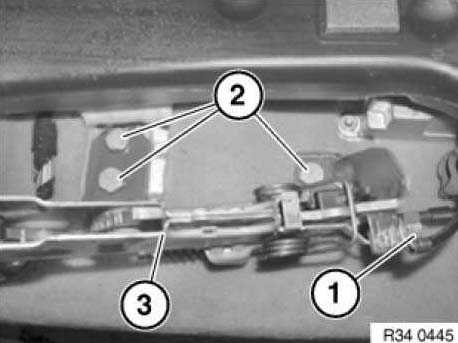

Disconnect cable (1) from handbrake check switch.
Release screws (2) and remove handbrake lever (3).

Installation:
Tightening torque 34 41 1AZ; Handbrake lever to body 21 Nm.
Handbrake lever and adjustment unit (ASZE) are only exchanged completely as a single unit.
