Front

34 32 881 Replacing front left or right brake hoses

Note: After completing tasks, bleed brake system.





Apply pedal prop and depress brake pedal slightly. This prevents brake fluid from emerging from the expansion tank when the brake lines are opened.

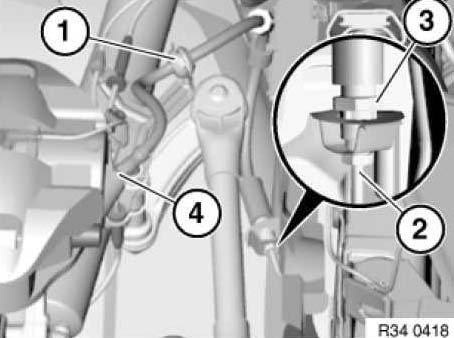

Pull brake hose out of holder (1).
Detach brake hose from brake line (2).

Installation:
Tightening torque 34 32 1AZ; Brake hose couplings 18 Nm.

Important! Grip brake hose at square head (3) so that connecting piece cannot rotate in retaining bracket.

Detach brake hose from brake caliper (4).
Tightening torque 34 32 4AZ; Brake hose to brake caliper, front 24 +/- 2 Nm.

Installation:
First tighten brake hose on brake caliper.

Move wheels into straight-ahead position.
Insert brake hose in bracket and screw onto brake pipe.

Important! Never twist brake hose when installing it and avoid all contact with parts attached rigidly to the body.
