Procedures

34 21 171 Removing and installing/replacing a brake carrier/brake guard at rear

Necessary preliminary tasks:
^ Remove expander lock.
^ Remove wheel hub.

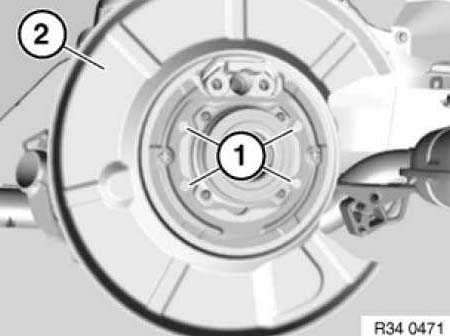

Release screws (1) and remove brake carrier (2).

Installation:
Tightening torque 34 21 6AZ; Protective plate to wheel carrier 12 Nm.
