Procedures

35 11 000 Removing and installing complete bearing block for foot pedal

Necessary preliminary tasks:
^ Remove pedal trim.
^ Vehicles with electric steering column:
- Remove electric steering column drive.

^ Vehicles with manual transmission:
- Remove clutch pedal.
- Remove clutch master cylinder.

Important! After completion of work, carry out function check.

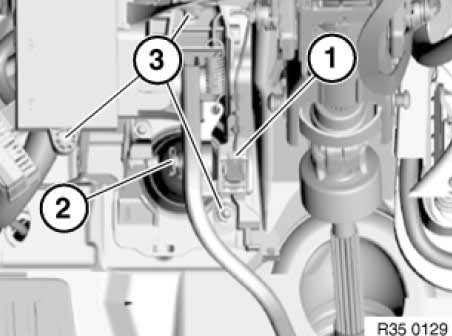

Unfasten plug connection (1).
Remove locking clip (2) and disengage and pull out locking pin.
Release nuts (3) and remove bearing block.

Installation::
Replace self-locking nuts. Tightening torque 35 11 1AZ; Bearing pedestal to brake assembly and body 26 Nm
(Retighten 1x on brake booster after 30 min)
