51 47 030 - Removing and installing/replacing rear (inside) left or right entrance cover strip (Security)

51 47 030 - Removing and installing/replacing rear (inside) left or right entrance cover strip (Security)





Special tools required:
- 00 9 341





Necessary preliminary tasks:
- Remove rear seat Rear Seat - Normal





Release screw (1) on entrance cover strip (2).
Attach special tool 00 9 341 at front under entrance cover strip (2).
Pull out entrance cover strip (2) forwards/downwards.

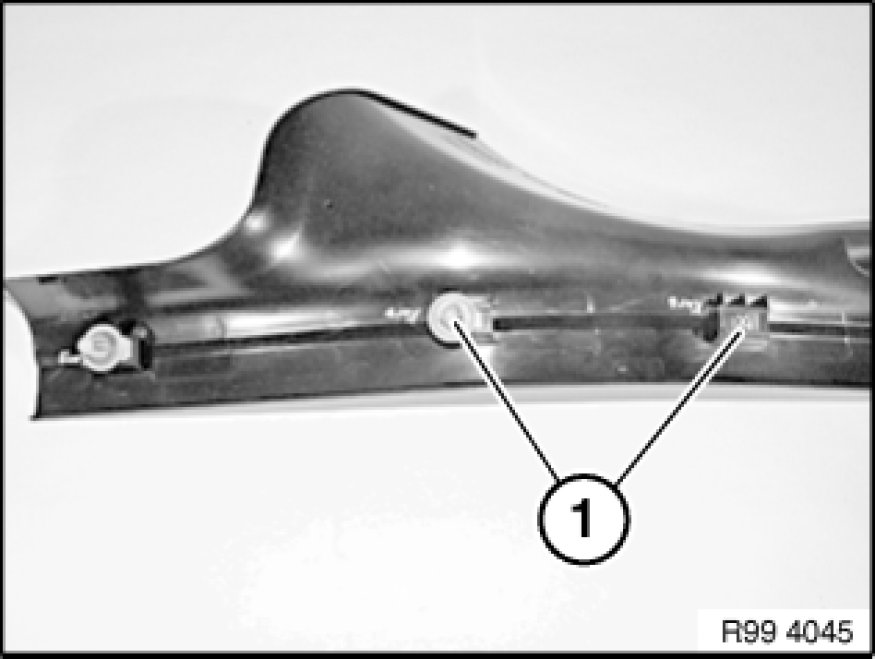

Lever out clips (1) with pliers (head of pliers surface-ground).





Cover strip is modified, new component changed.
Clips (1) are cut (see following work steps).





When replacing clips:

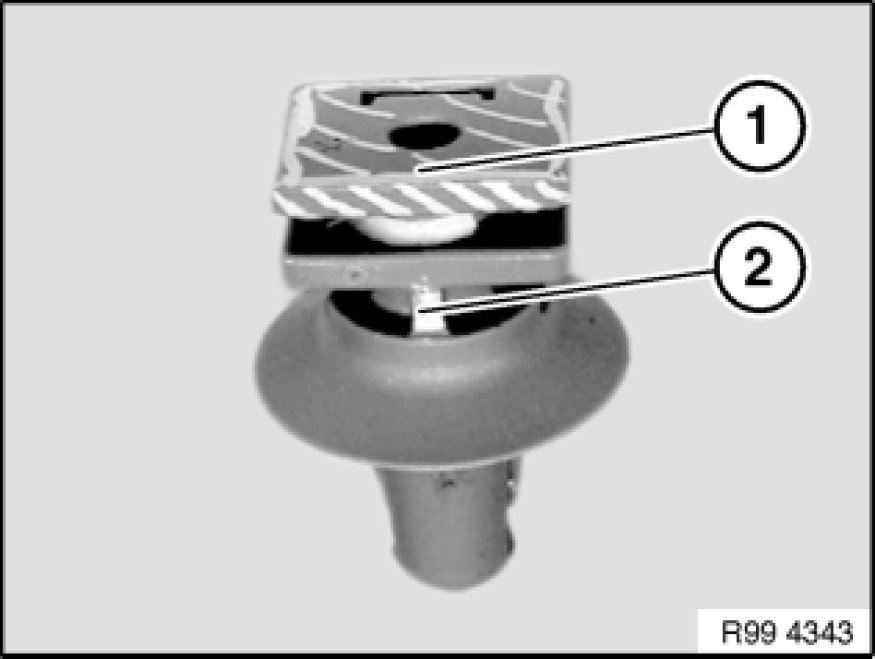

Cut clip in area (1) and rib (2).

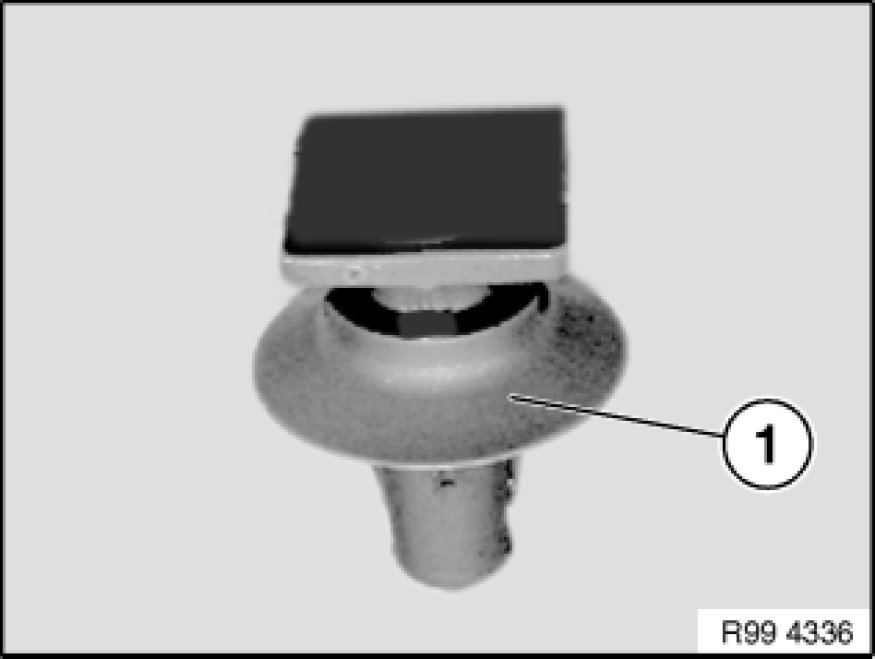

Clip (1) cut.





Push clips (2) onto entrance cover strip (1).

Installation:
Following parts of entrance cover strip (1) must not be damaged or missing:
2 - Clips
3 - Retaining lug
4 - Guides for clips
5 - Bore
