Vehicle Data Views - Heights / Widths / Door Angles / Turning Circle

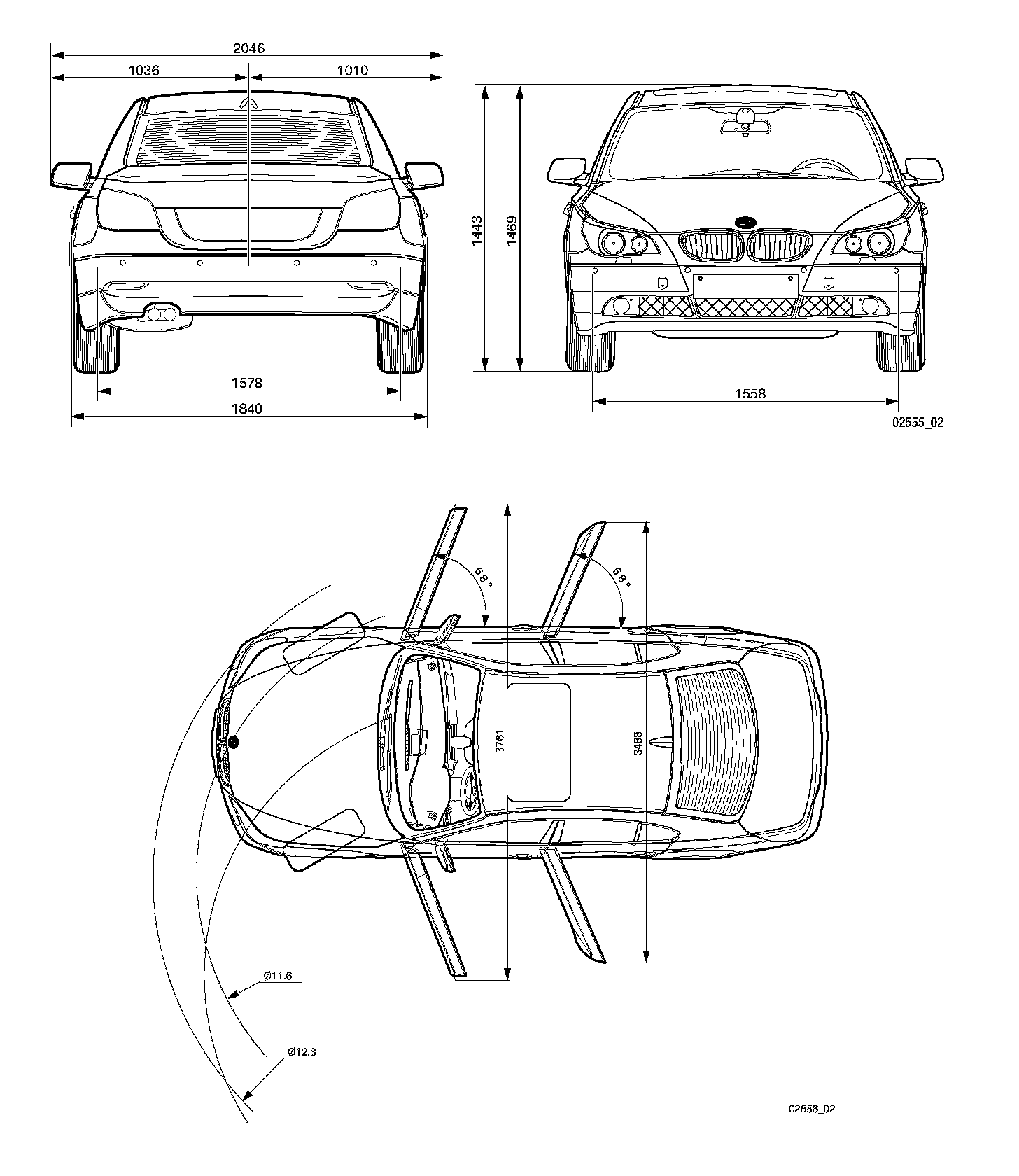

Vehicle Data Views - Heights / Widths / Door Angles / Turning Circle

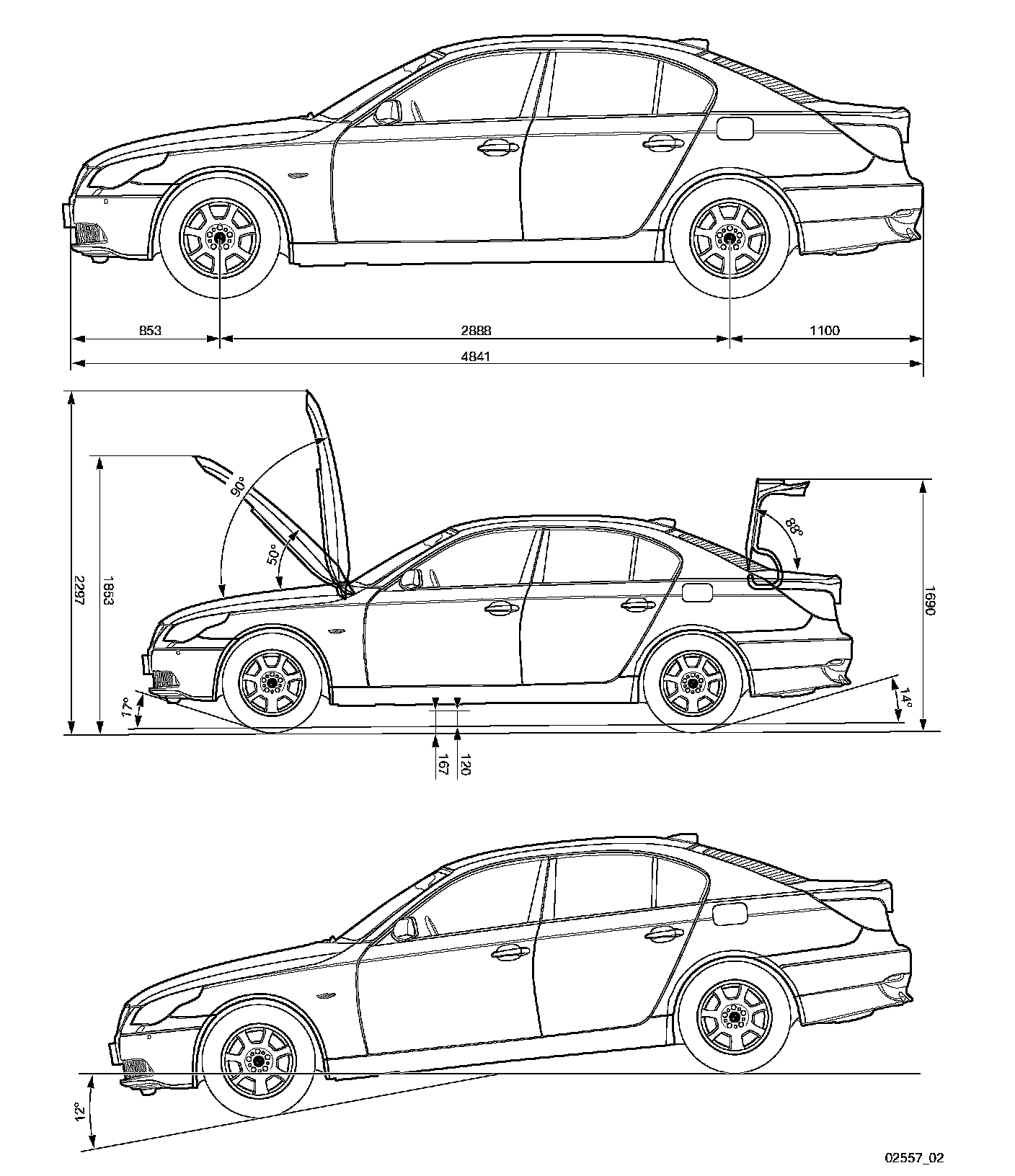

Vehicle Data Views - Lengths / Heights / Hood - Luggage Comp. Angles / Overhang Angle
