AHL Control Unit

AHL Control Unit

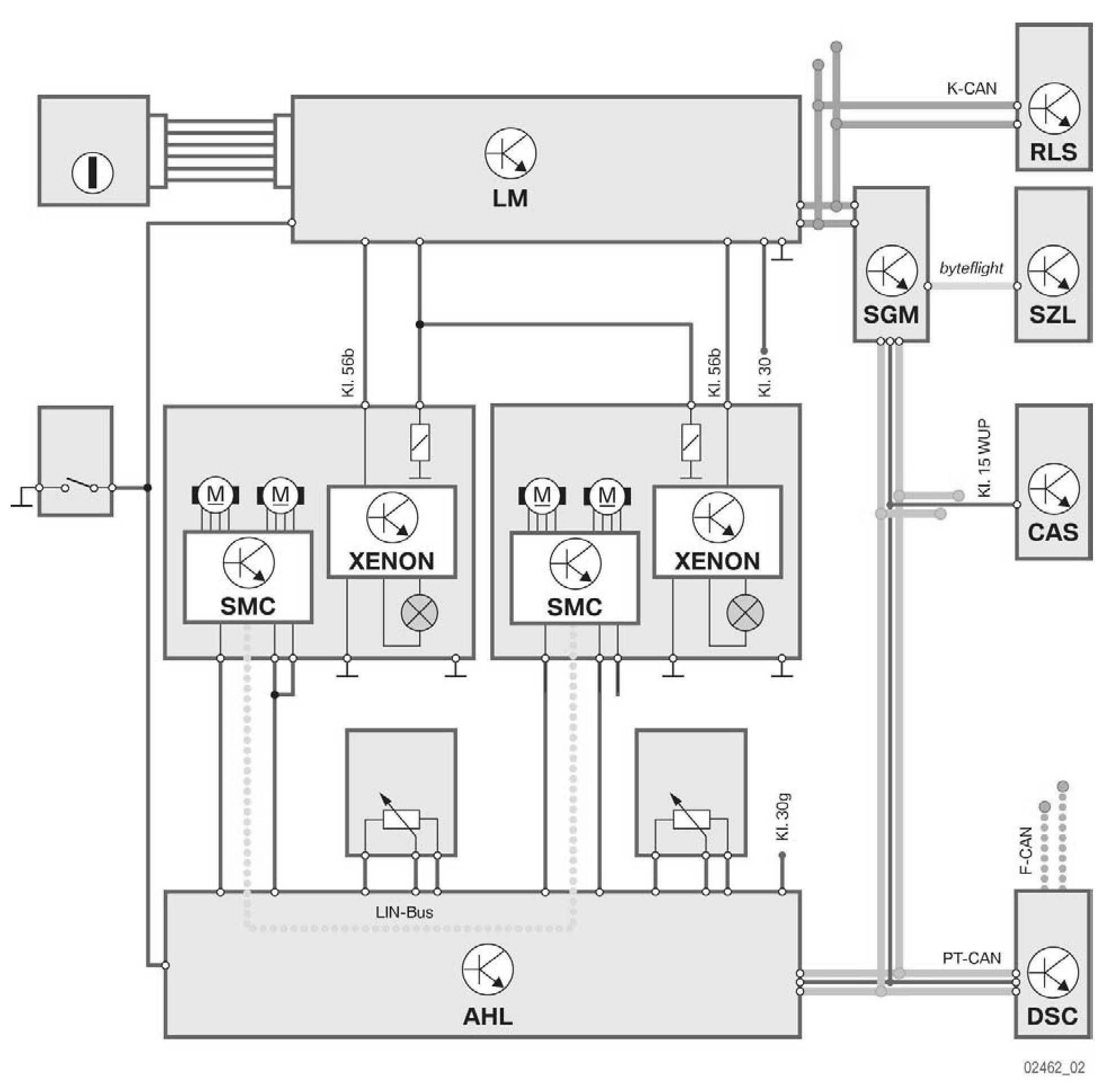

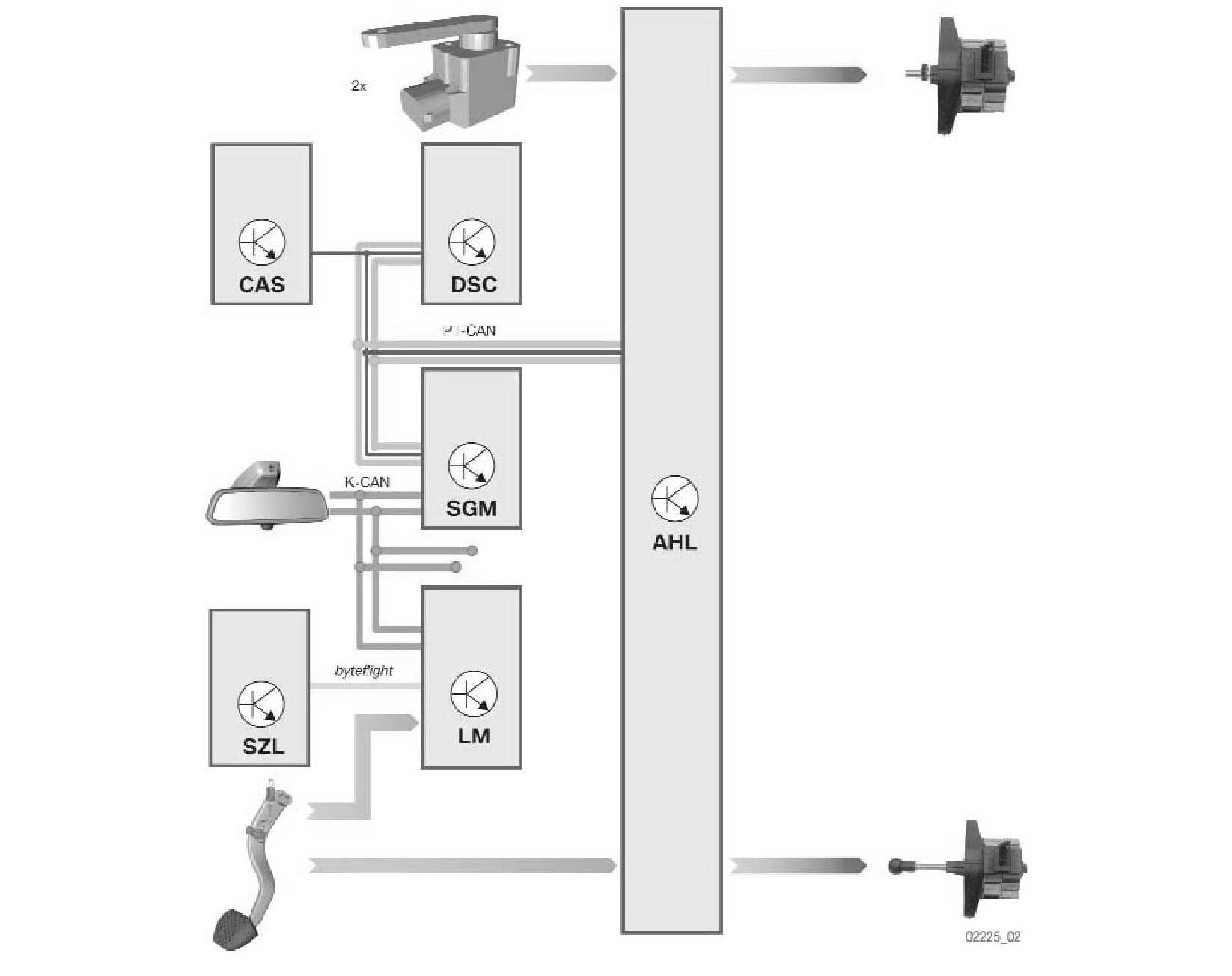

The AHL control unit is the master control unit for vertical and horizontal adjustment of the bi-xenon headlights. The stepper motor controllers actuate the stepper motors of the bi xenon headlights. The AHL control unit is installed on the carrier plate behind the glove compartment.
