Intelligent Battery Sensor

Intelligent Battery Sensor

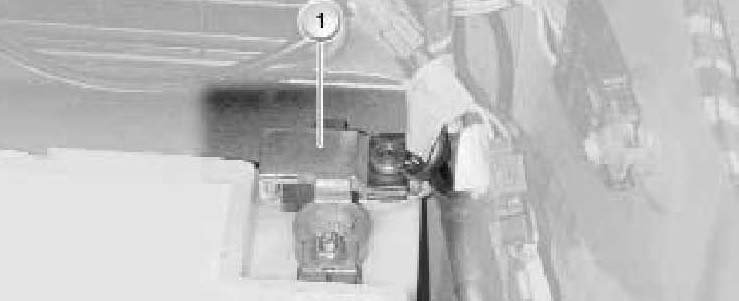

The IBS (1) is a mechatronic intelligent battery sensor with its own micro-controller. It constantly measures the following:
^ Battery terminal voltage
^ Battery charge/discharge current
^ Battery acid temperature
Installed directly at the negative battery terminal, care should be used when removing and installing the negative battery cable.

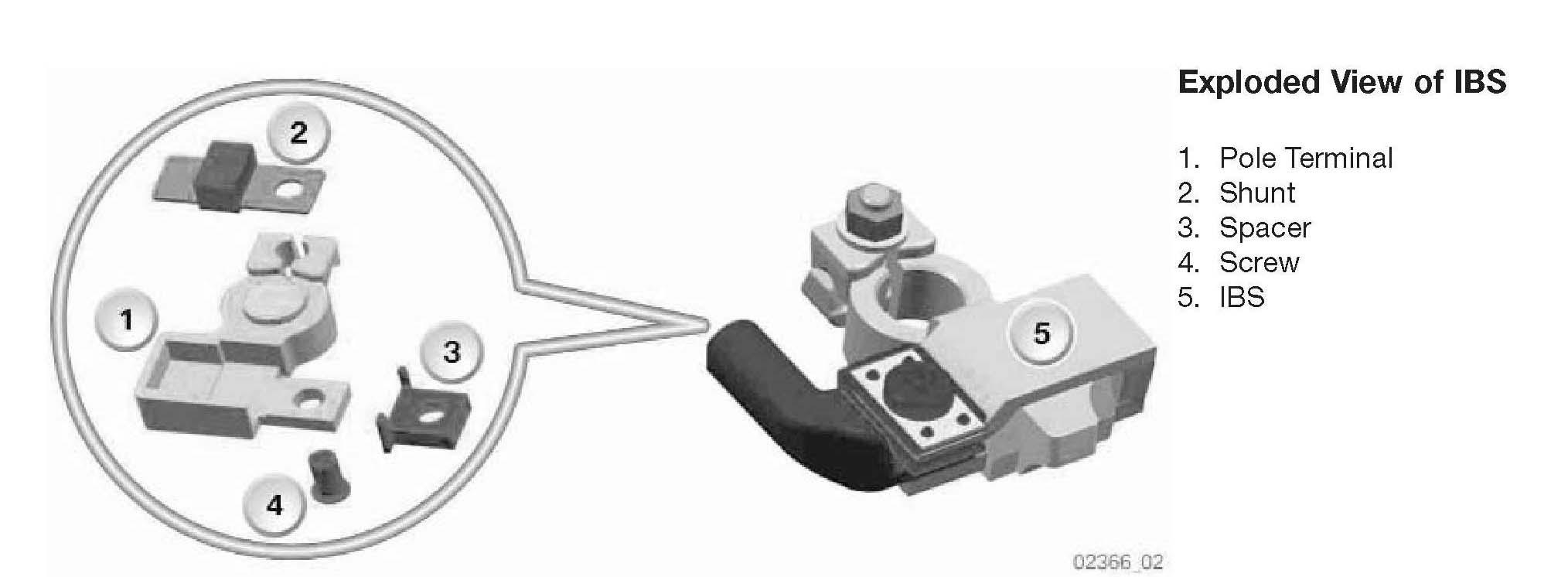

The IBS consists of 3 functional elements:
^ Mechanical section,
^ Hardware
^ Software
