Stabilizer Link: Service and Repair

31 35 005 Removing and installing/replacing push rod (anti-roll bar link) for left/right anti-roll bar

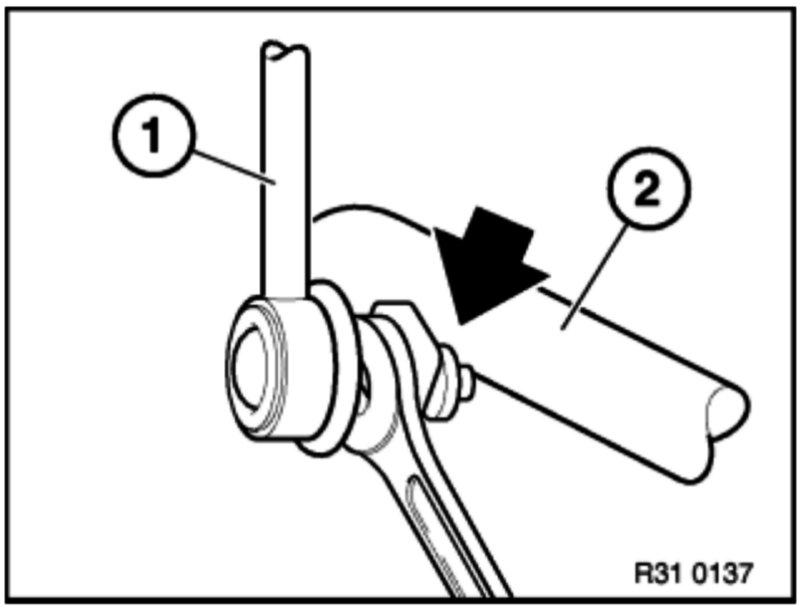

Release nut; if necessary, grip with open-end spanner.
Remove anti-roll bar link (1) from anti-roll bar (2).

Installation note:
Replace self-locking nut.
Tightening torque 31 35 5AZ.

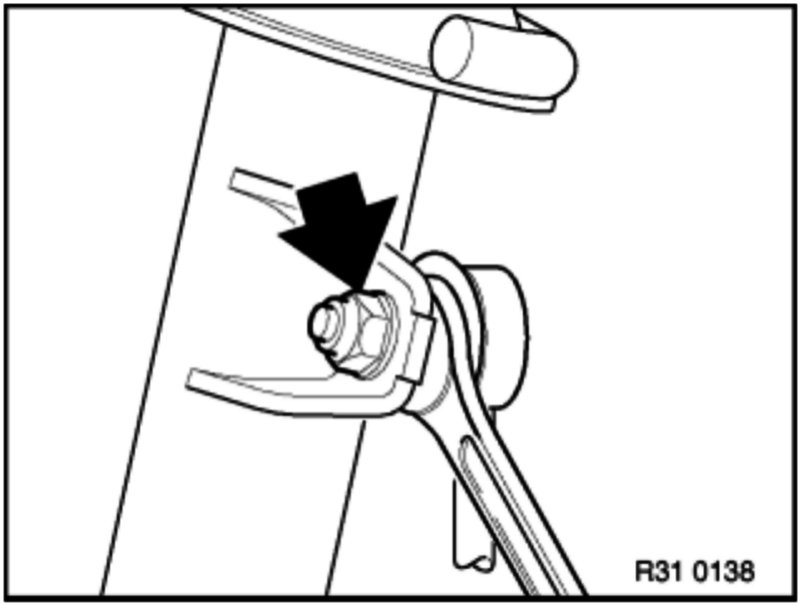

Release nut; if necessary, grip with open-end spanner.
Remove anti-roll bar link from spring strut.

Installation note:
Replace self-locking nut.
Tightening torque 31 35 5AZ.

Important!
Never tighten the anti-roll bar link with an impact wrench!
Do not twist the joint of the anti-roll bar link when tightening the nut!
Twisting the joint must never be used to counter the screw connection!

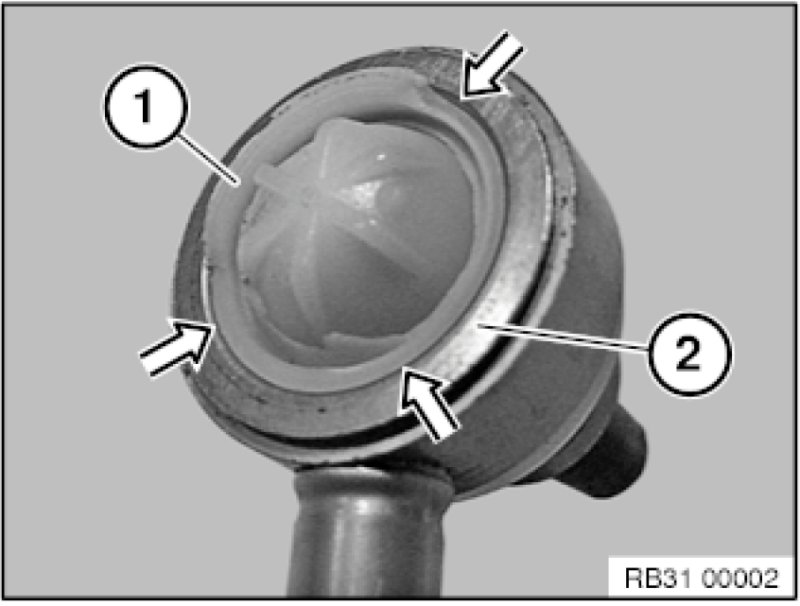

The plastic strapping (1) may not be broken as marked in area (2) with arrows.
If the plastic strapping is broken, the anti-roll bar link must be replaced.
