Removing And Installing/Replacing Transmission Support Block (N62)


Removing And Installing/Replacing Transmission Support Block (N62)
Replace rubber mounts for transmission mounting.

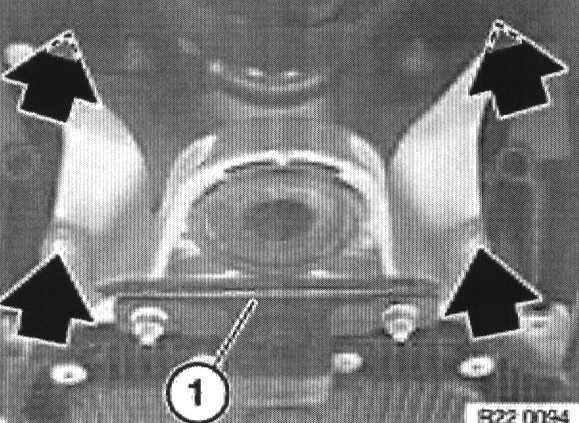

Remove exhaust suspension (1) from transmission support block.

Remove transmission support block from transmission.

Installation:
Transmission support block to transmission 38 Nm
