Replacing Handle For Selector Lever


Replacing Handle For Selector Lever





Note: Do not twist handle during removal as this would cause the turning lock in the knob to shear off.

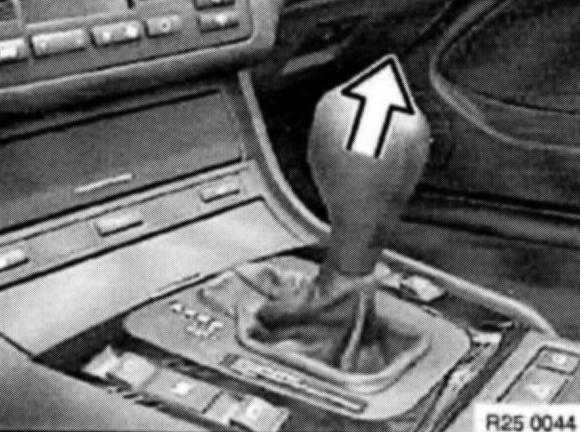

Tug firmly to remove knob.

Installation:
Fit knob on selector lever, align and press on until it snaps noticeably into place.





Installation:

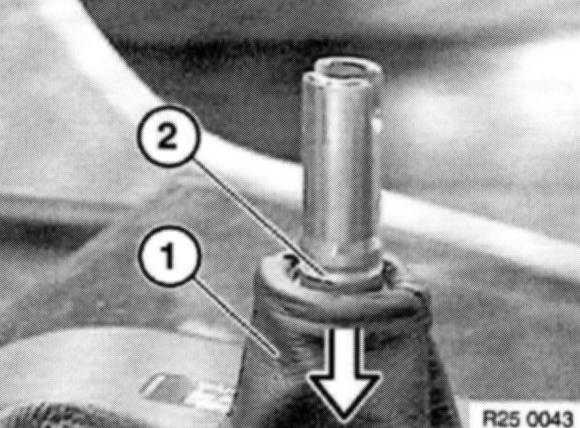

Push rubber gaiter (1) down until groove (2) is fully exposed.
