Replacing Complete Selector Lever

25 11 001 Replacing complete selector lever
Remove selector lever

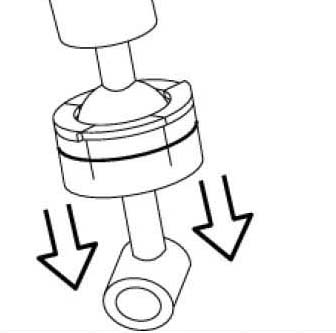

Detach mount from selector lever.

Installation:
Grease ball joint.
Grease,
refer to BMW Service Operating Fluids.





Detach rubber gaiter from selector lever.





Installation:

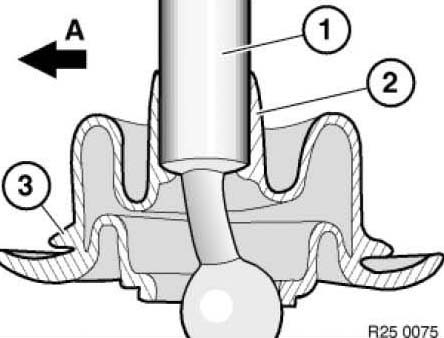

Degrease selector lever (1).
Coat rubber bellows on inside of shaped section (2) with circo light.
circo light,
refer to BMW Parts Service.
Pull rubber gaiter from above over selector lever and align.
Arrow (3) on rubber gaiter must point in direction of travel (A).
