A5S 360R/390R Transmission

Adjusting selector lever (ASS 360R/390R, A4S 200R)

Note: Check cable for ease of movement. Move selector lever to park position "P".

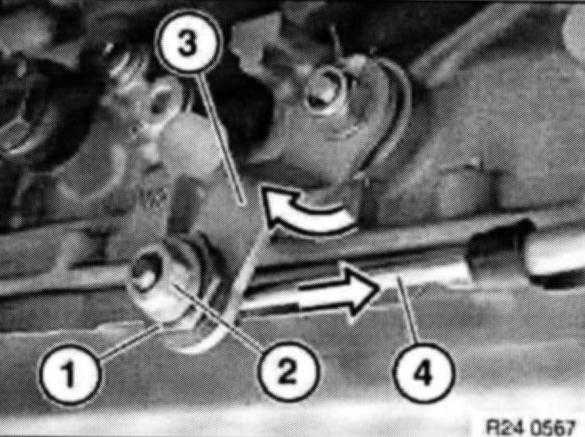

Grip clamping piece (1).

Release nut (2).

Press selector lever (3) forwards into park position.

Press cable (4) in direction of arrow and release again.

Grip clamping piece (1).

Tighten down nut (2).
Tightening torque, 25 16 2AZ.

Installation:
Move selector lever to park position "P".

Check by turning on cardan shaft whether parking lock is engaged.
