Shift Interlock Cable: Service and Repair

Remove/Replacing Interlock Cable
Remove interlock cable from selector lever (version with interlock), refer to MG 25.

Remove lower section of steering column trim, refer to 32 31 020.

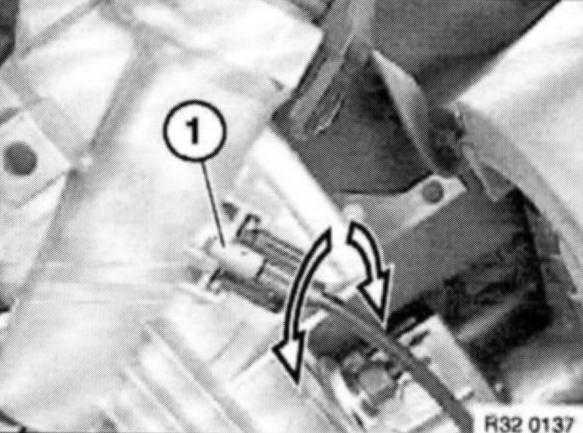

Open lock (1) and remove cable.

Installation:
Lock (1) must snap into place.
