A5S 360R/390R Transmission

Installing Replacement Transmission A5S 360R/390R, A4S 200R
Drain off automatic transmission fluid.

Recycling:
Catch and dispose of escaping transmission fluid.
Observe country-specific waste-disposal regulations.

Caution: Before installing replacement transmission: Always flush oil cooler with lines.

Remove transmission.

Note: Automatic transmission is supplied filled with transmission fluid.

Note: After completion of work, check transmission fluid level.

Caution: Use only the approved transmission fluid in this automatic transmission.

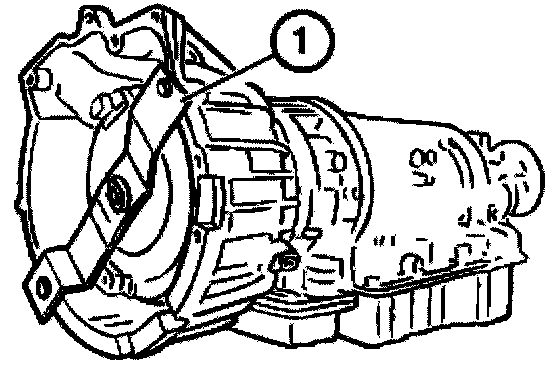

Convert transportation lock (1).

Caution: After removing transportation lock: Protect torque converter from slipping out.

Transmission identification is on nameplate.

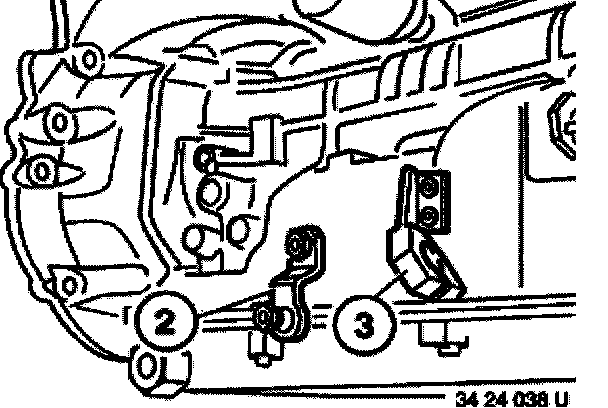

Convert lever (2) and retaining bracket (3).

Convert exhaust suspension.

Convert all cable holders.

Remove transfer case.
