Fault Codes

Fault Codes





The new E46 diagnostic concept provides an minimization of Fault Symptom selections based on areas of selection. Follow the test schedule provided by the DIS / MoDiC. The test schedule is based on the selected fault symptom and stored fault codes.

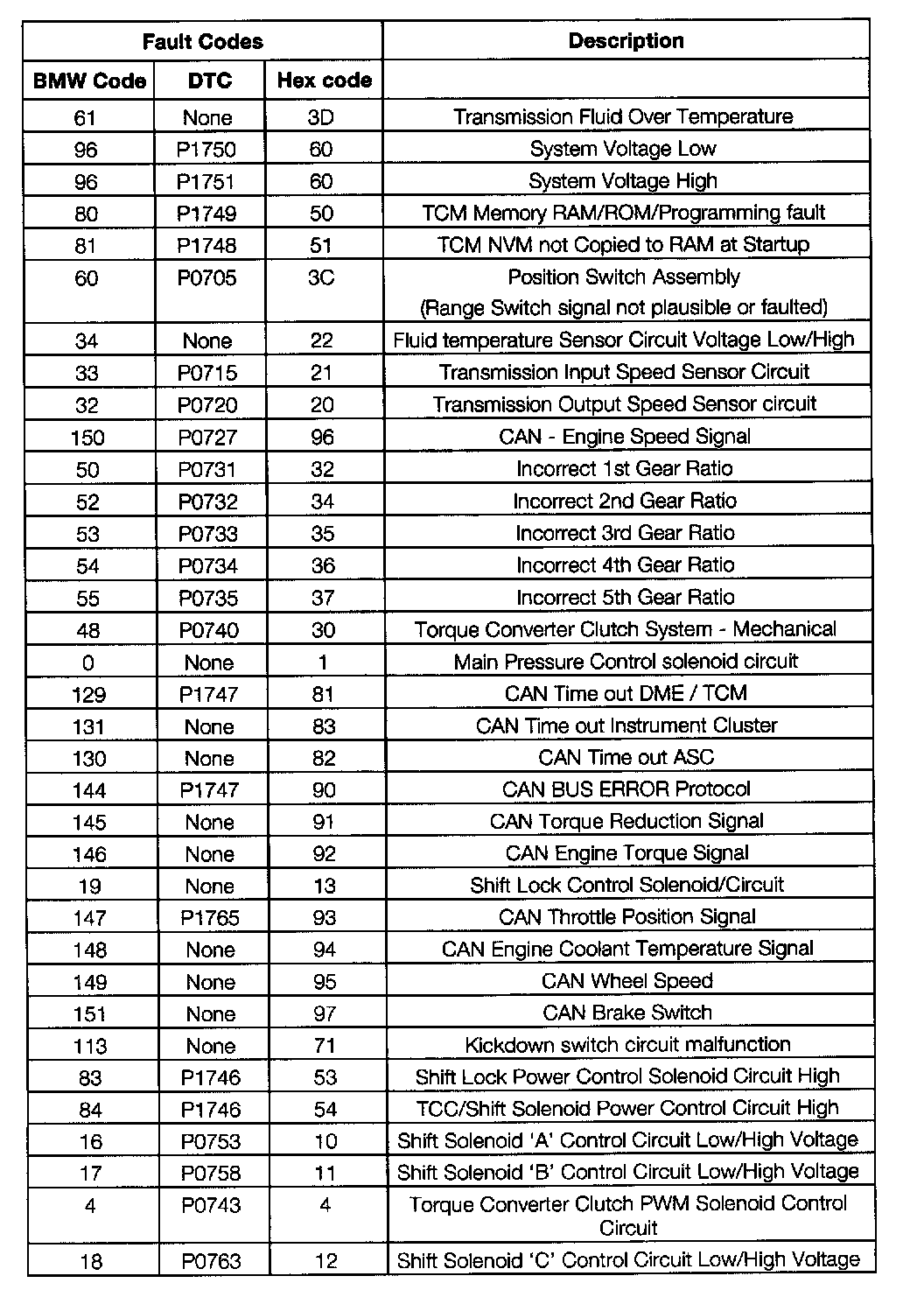

Fault Codes: The GS 20 monitors the A5S 360R and interfacing systems. When faults are detected, the GS 20 stores the following fault codes
