330Ci Convertible (E46) L6-3.0L (M54)
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Drive
>>
Motor Electronics MS45 (DME Digital Motor Electronics MS45)
>>
Tank-System Check
>>
Diagnostic Module For Tank Leakage (DMTL)
Diagnostic Module For Tank Leakage (DMTL)

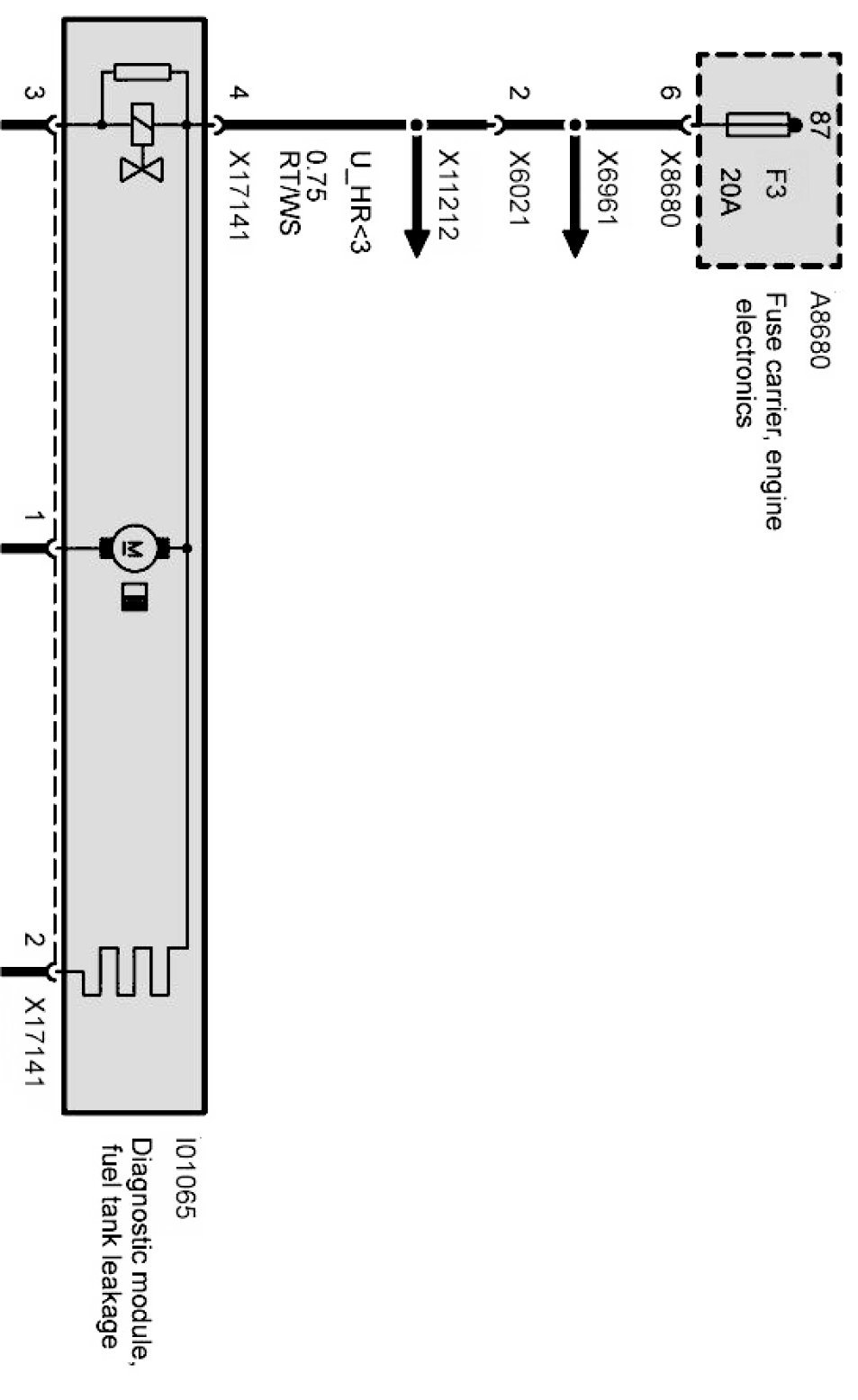

Fuel Tank Leakage Diagnosis Module, Heated Part 1:

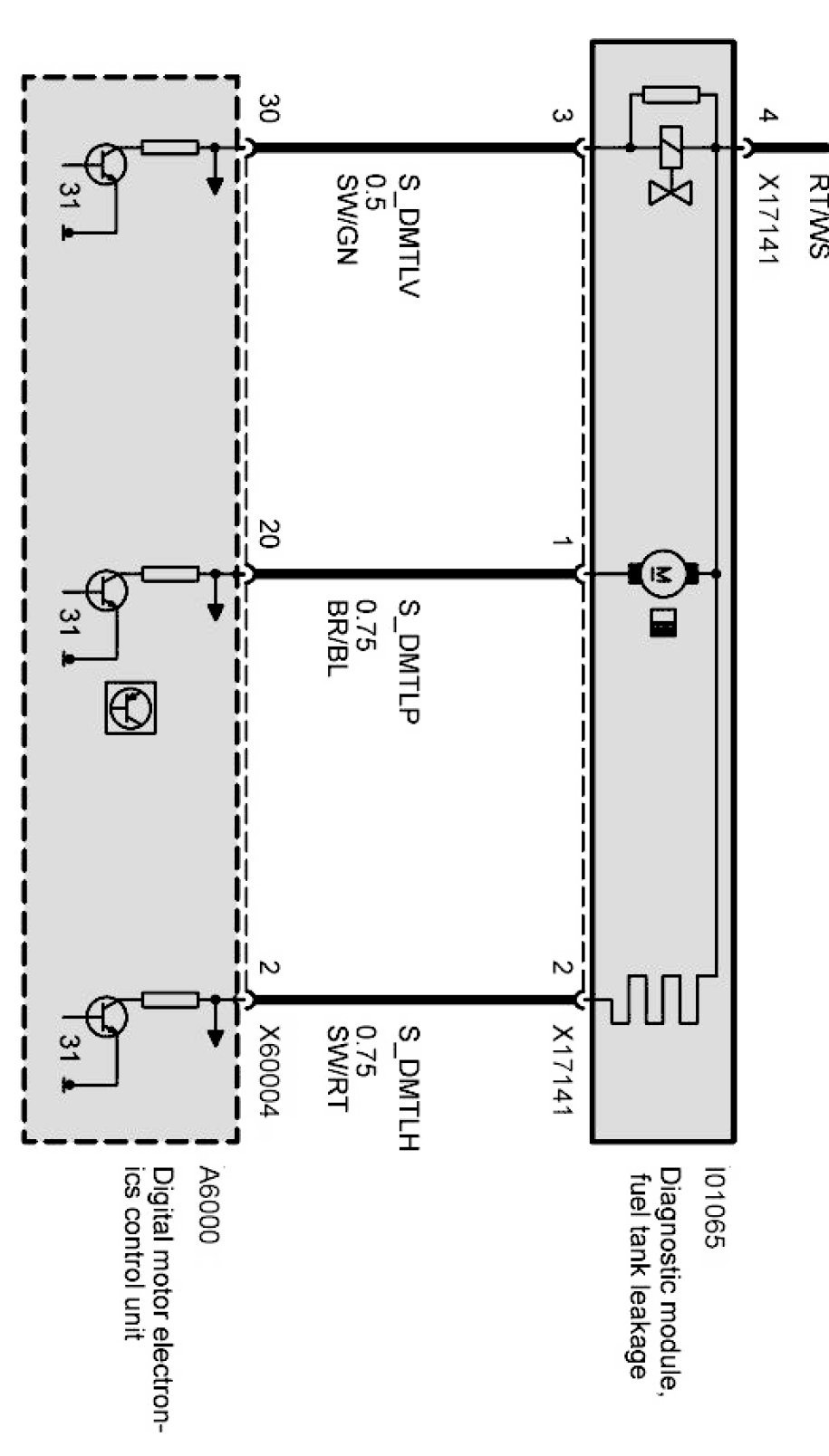

Fuel Tank Leakage Diagnosis Module, Heated Part 2:
