Home >> BMW >> 2005 >> 330Ci Convertible (E46) L6-3.0L (M54) >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Drive >> Motor Electronics MS45 (DME Digital Motor Electronics MS45) >> Engine Management, Auxiliary Functions

Engine Management, Auxiliary Functions

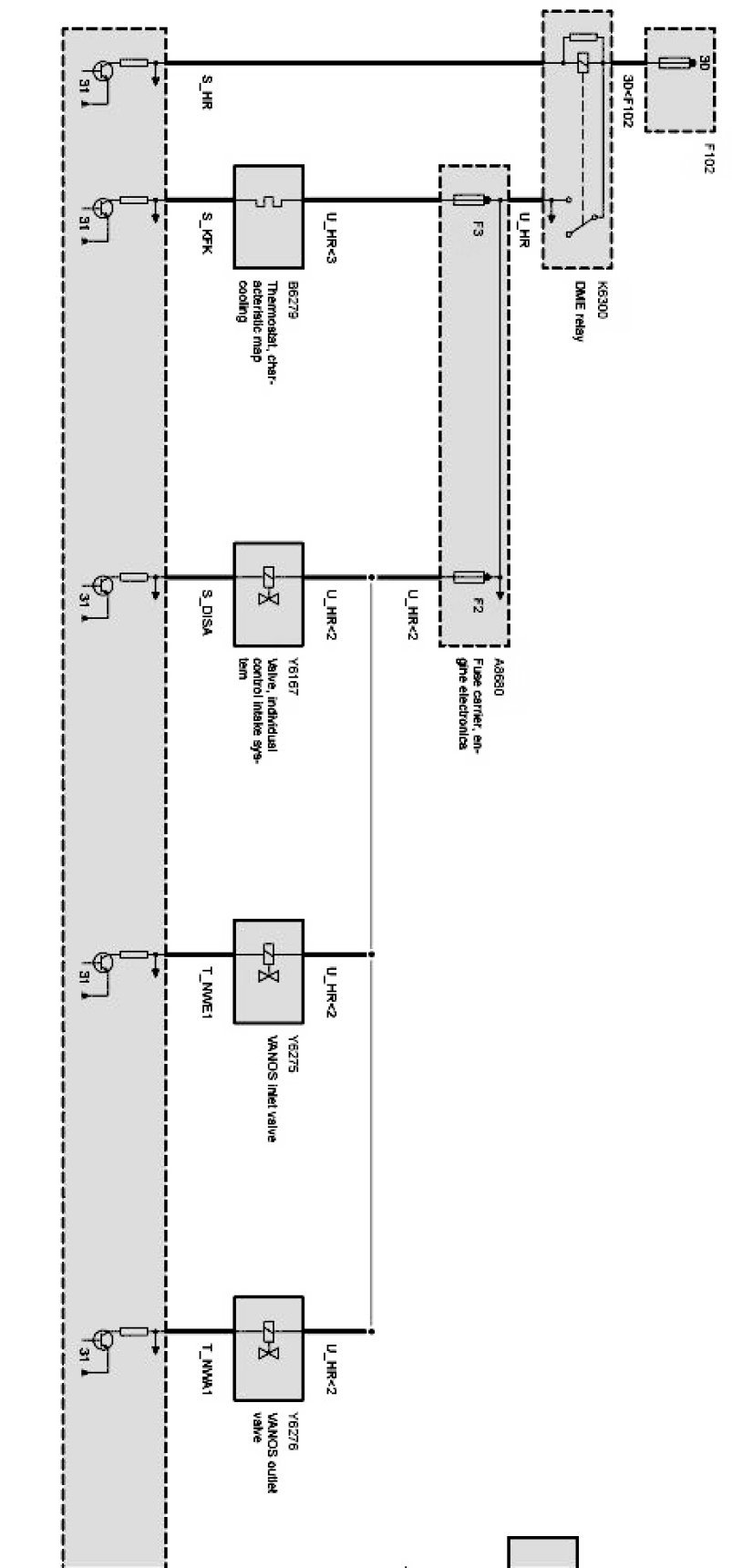

Engine Management, Auxiliary Functions Part 1:

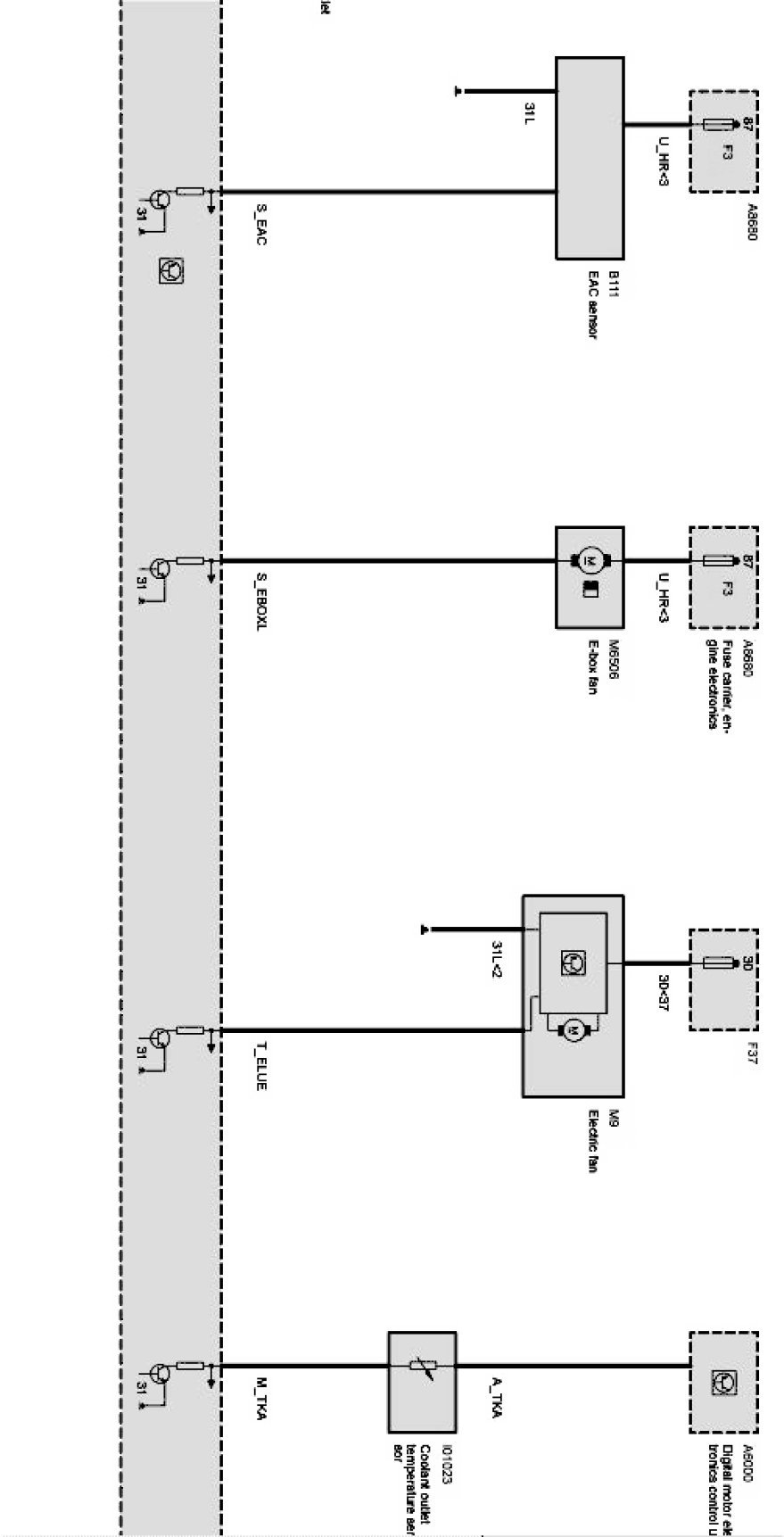

Engine Management, Auxiliary Functions Part 2:

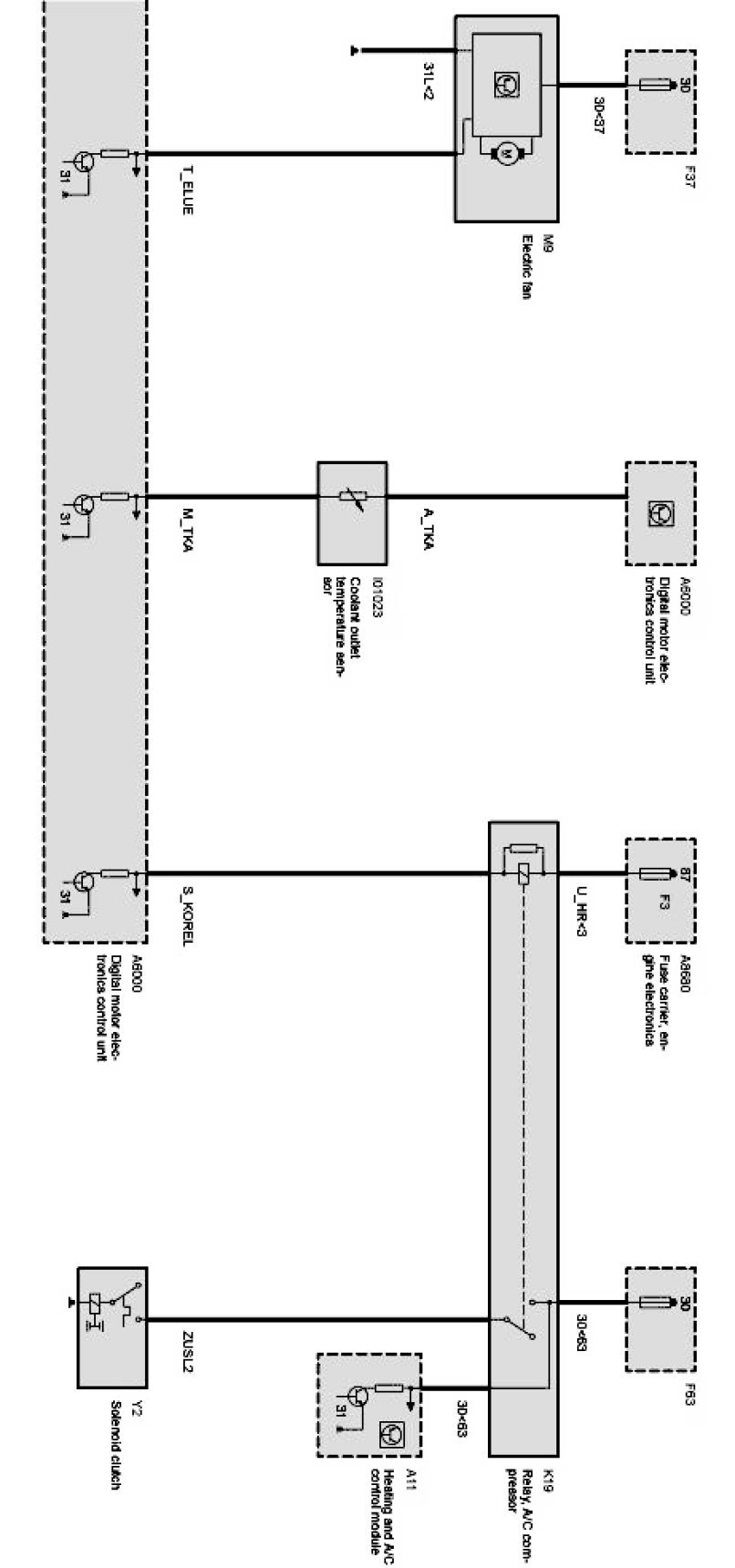

Engine Management, Auxiliary Functions Part 3:
