Home >> BMW >> 2005 >> 330Ci Convertible (E46) L6-3.0L (M54) >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Body >> Seat, Steering-Column, Mirror Functions >> Lumbar Support, Driver's Side >> Driver Lumbar Support With Electric Seat Adjustment (Convertible Without DME MSS54)

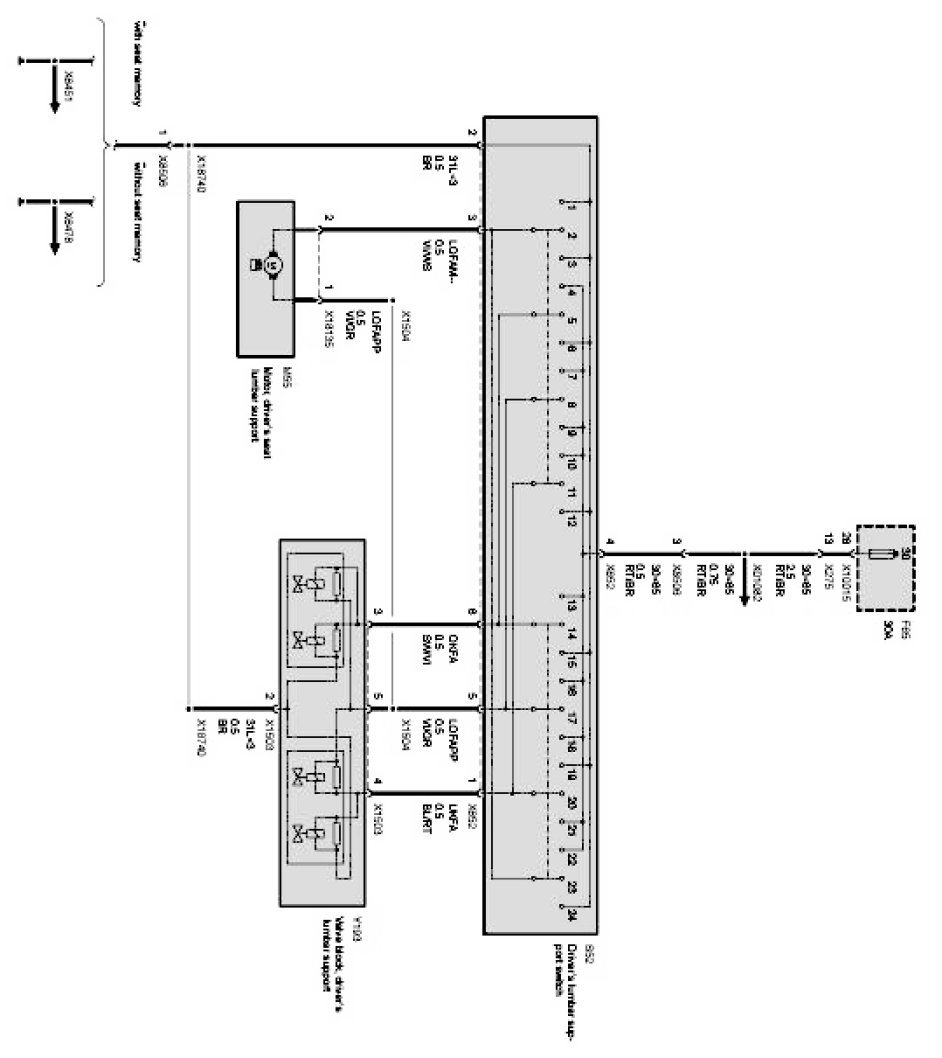

Driver Lumbar Support With Electric Seat Adjustment (Convertible Without DME MSS54)

Driver's lumbar support with electric seat adjustment:
