Home >> BMW >> 2005 >> 330Ci Convertible (E46) L6-3.0L (M54) >> Repair and Diagnosis >> Diagrams >> Connector Views >> Connectors From X7 >> X70001

X70001

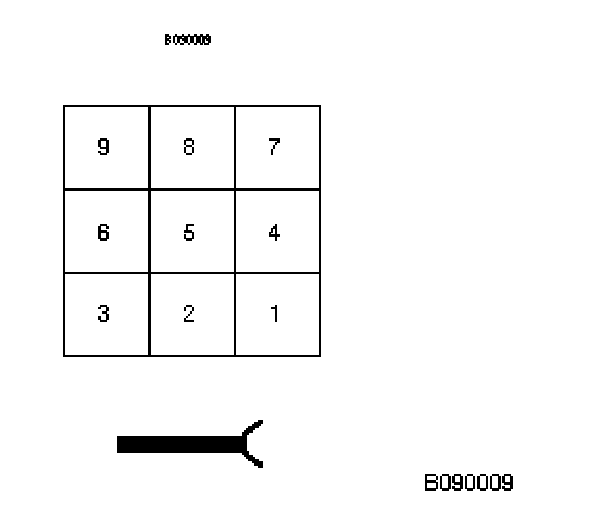

X70001 Component Connector (9-Pin, Blue):

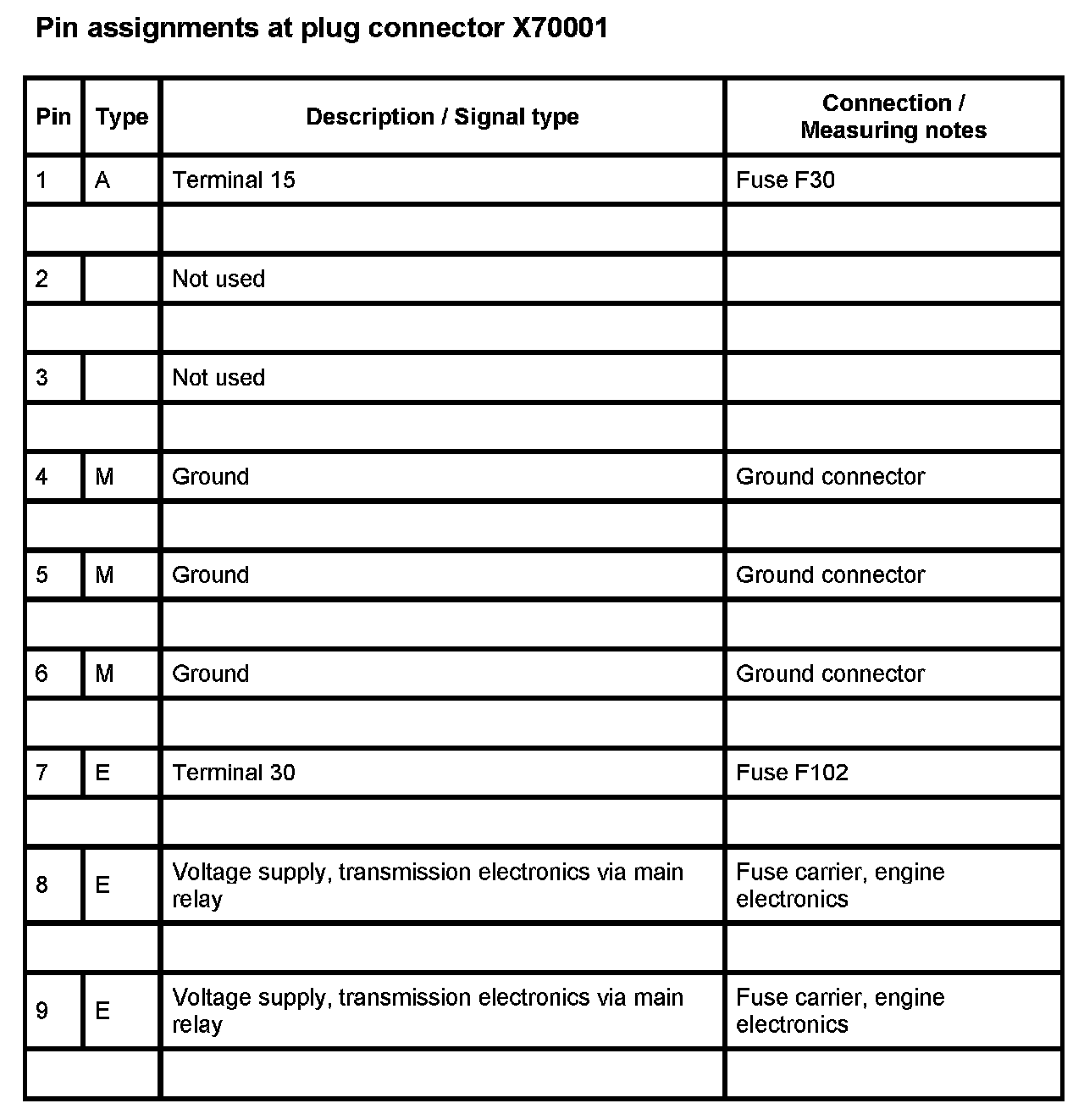

X70001:
