Replacing Front Headrest (Normal/Manual)
Replacing Front Headrest (Normal/Manual)
Removing And Installing/Replacing Front Headrest (Normal/Manual)

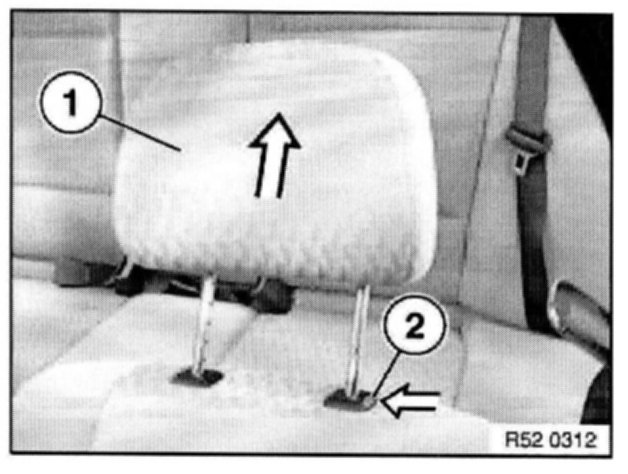

Move backrest back.
Move headrest (1) as far upwards as possible.
Unlock lock (2) and remove headrest (1).
