Replacing Output Flange For Transmission (S5D 200G/250G)

23 21 006 Replacing output flange for transmission (S5D 200G/250G)

Special tools required:
^ 23 0 020
^ 23 1 210
^ 33 1 150

Caution: After completion of work, check transmission fluid level. Use only approved transmission fluid. Failure to comply with this instruction will result in serious damage to the transmission.

Necessary preliminary tasks:
^ Unflange propeller shaft and tie up to one side
^ If necessary, remove heat shields at middle and side right
^ Support transmission.





Release screws on cross-member. Tightening torque: 23 71 2AZ. Lower transmission.

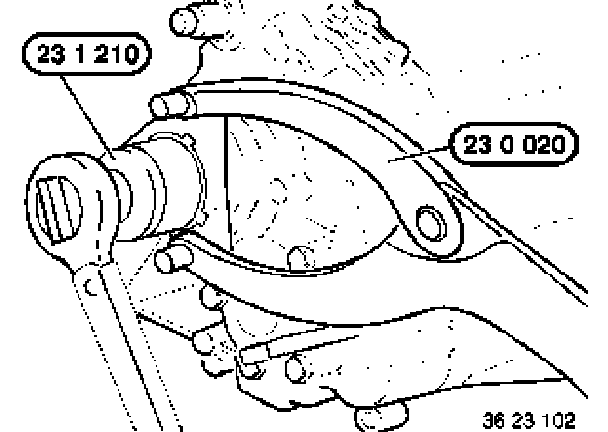

Brace output flange with special tool 23 0 020. Release collar nut with special tool 23 1 210. Tightening torque: 23 21 1AZ

Installation:
Insert collar nut with Loctite 243 screw securing adhesive (sourcing reference: BMW Parts Service).

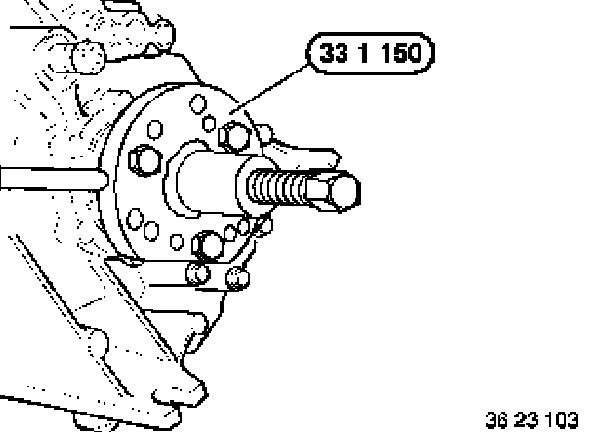

Detach output flange with special tool 33 1 150 from output shaft.
