Replacing Output Flange (GS6-37BZ/H-Transmission)

23 12... Replacing output flange (GS6-37BZ/H-transmission)

Special tools required:
^ 230020
^ 23 2 320
^ 33 1 150

Important: After completion of work, check transmission oil level. Use only approved gear oil. Failure to comply with this requirement will result in serious damage to the transmission.

Necessary preliminary tasks:
^ Unflange propeller shaft from transmission and tie to one side
^ Support and lower transmission

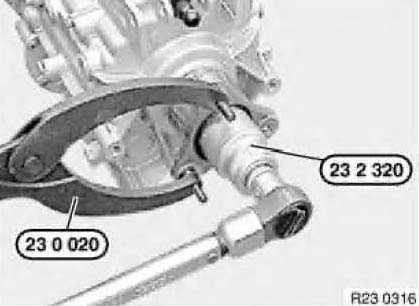

Brace output flange with special tool 23 0 020
Release collar nut with special tool 23 2 320

Installation:
Mark flange with thermo pin and heat to minimum 100°C.

Warning: Scalding hazard! Fit flange with suitable hand protection only.

Important: Do not drive on flange.

Secure collar nut with Loctite 243.
^ Loctite 243: BMW Parts Service.
^ Tightening torque: 23 21 1AZ

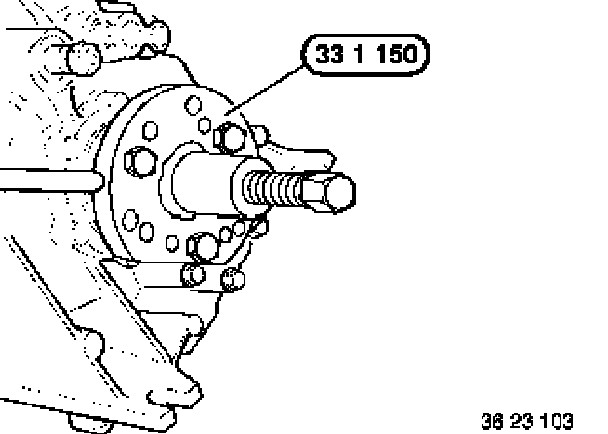

Detach output flange with special tool 33 1 150 from output shaft.
