Replacing Rear Cover Gasket on Final Drive

33 11 271 Replacing rear cover gasket on final drive

Recycling: Observe country-specific waste-disposal regulations.

Necessary preliminary tasks:
^ Remove final drive.
^ Drain final drive oil.
After installation:
^ Check gear oil level.

Note: In event of oil loss, always check gearbox for traces of wear and/or damage.

Important:
Use only approved gear oil in this final drive.
Failure to comply with this instruction will result in serious damage to the final drive.

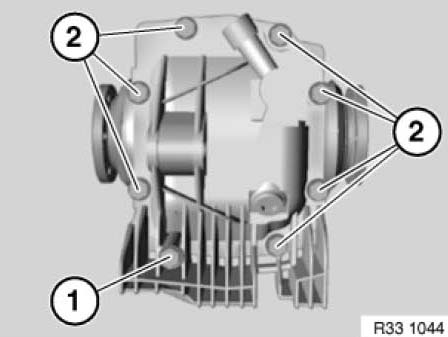

Remove screws (1 and 2).
Remove cover.
Clean sealing faces on final drive and on cover.
Installation:
Replace seal.
Screw (1): M10x25
Screws (2): M10x60
