33 17 005 Replacing Rubber Mount For Final Drive Mounting at Rear
33 17 005 Replacing rubber mount for final drive mounting at rearSpecial tools required:
^ 33 3 314
^ 33 3 315
^ 33 4 181
^ 33 4 182
^ 33 4 183
^ 33 4 184
Necessary preliminary tasks:
^ Remove final drive.

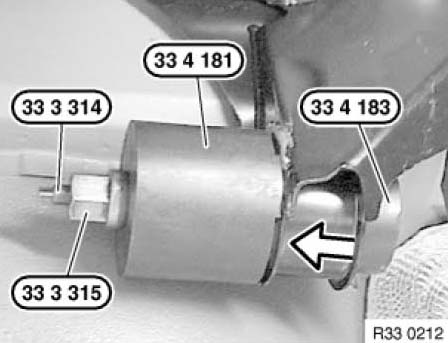

Pull out rubber mount with special tools 33 3 314/33 3 315 and 33 4 181/33 4 183.
Important:
Observe installation position of rubber mount.
Rubber mount and bearing bush free of grease!

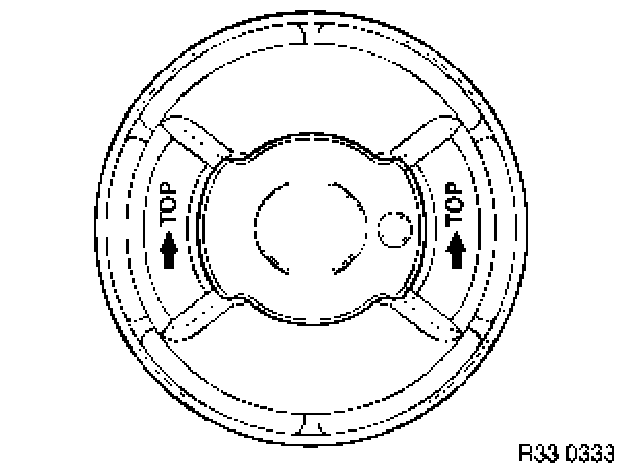

Installation position:
1. Arrows of lettering "TOP" must point upwards
2. Lettering "TOP" must be located in right direction of travel
Install rubber mount (1) with special tools 33 3 314/33 3 315 and 33 4 182/33 4 184 as far as it will go.
