33 17 004 Replacing All Rubber Mounts For Front Final Drive Suspension
33 17 004 Replacing all rubber mounts for front final drive suspensionSpecial tools required:
^ 33 3 314
^ 33 3 315
^ 33 3 361
^ 33 3 362
^ 33 4 173
Necessary preliminary tasks:
^ Remove final drive.

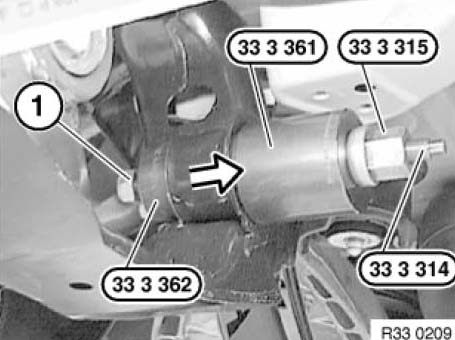

Pull out rubber mount with special tools 33 3 314/33 3 315 / 33 3 361/33 3 362 and an M12 nut (1).
Important:
Observe installation position of rubber mount.

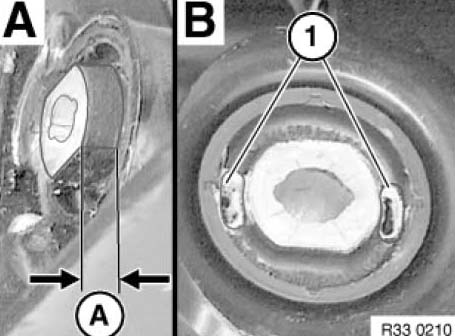

Installation position:
Fig. A: Protrusion (A) in rear direction of travel
Fig. B: Openings (1) in transverse vehicle direction
Coat new rubber mount and bearing bush with Circo light, refer to BMW Parts Service.

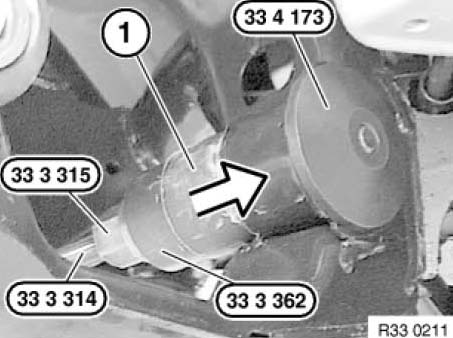

Install rubber mount (1) with special tools 33 3 314/33 3 315 / 33 3 362 and 33 4 173 as far as it will go.
